TECHNICAL DRAWINGS

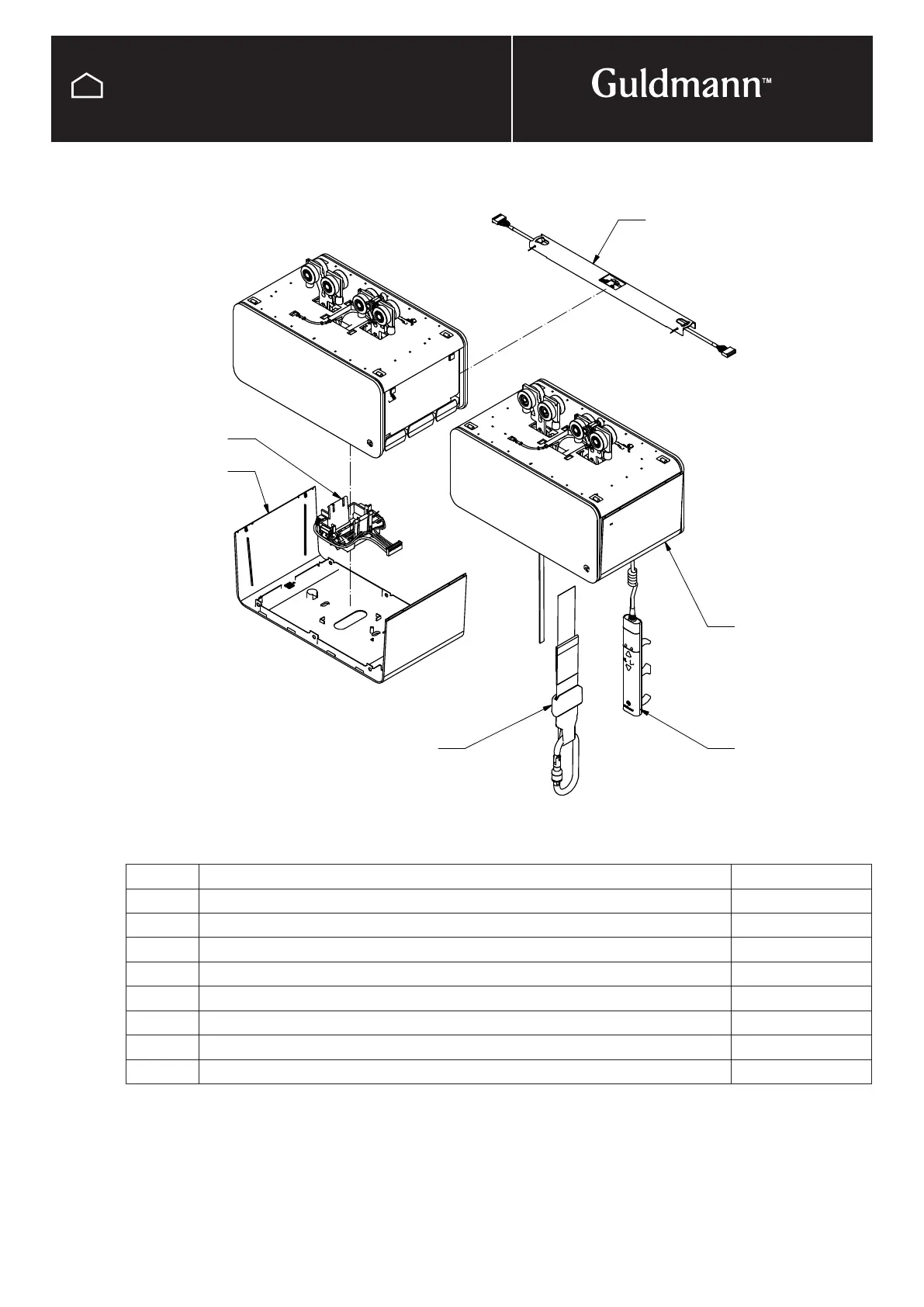

Spare part overview
GH3 twin
Pos. no. Part Drawing/Item no.
1 Safety control mechanics, spare part 550564
2 GH3+ Bottom cover Follow unit, spare part 550557
3.1 Twin connection, spare part, 2010 550559
3.2 Twin connection, spare part “after 17-05-2011” 551231
4 Straps, Twin Hoist, spare part 550777
5.1 Handcontrol GH3+, Drive motor, spare part 550773
5.2 Handcontrol GH3, Drive motor, spare part 550774
6 GH3+ Bottom cover leader unit, sp. part 551398
