SERVICE AND REPAIR
GH3
Replacement of belt drive

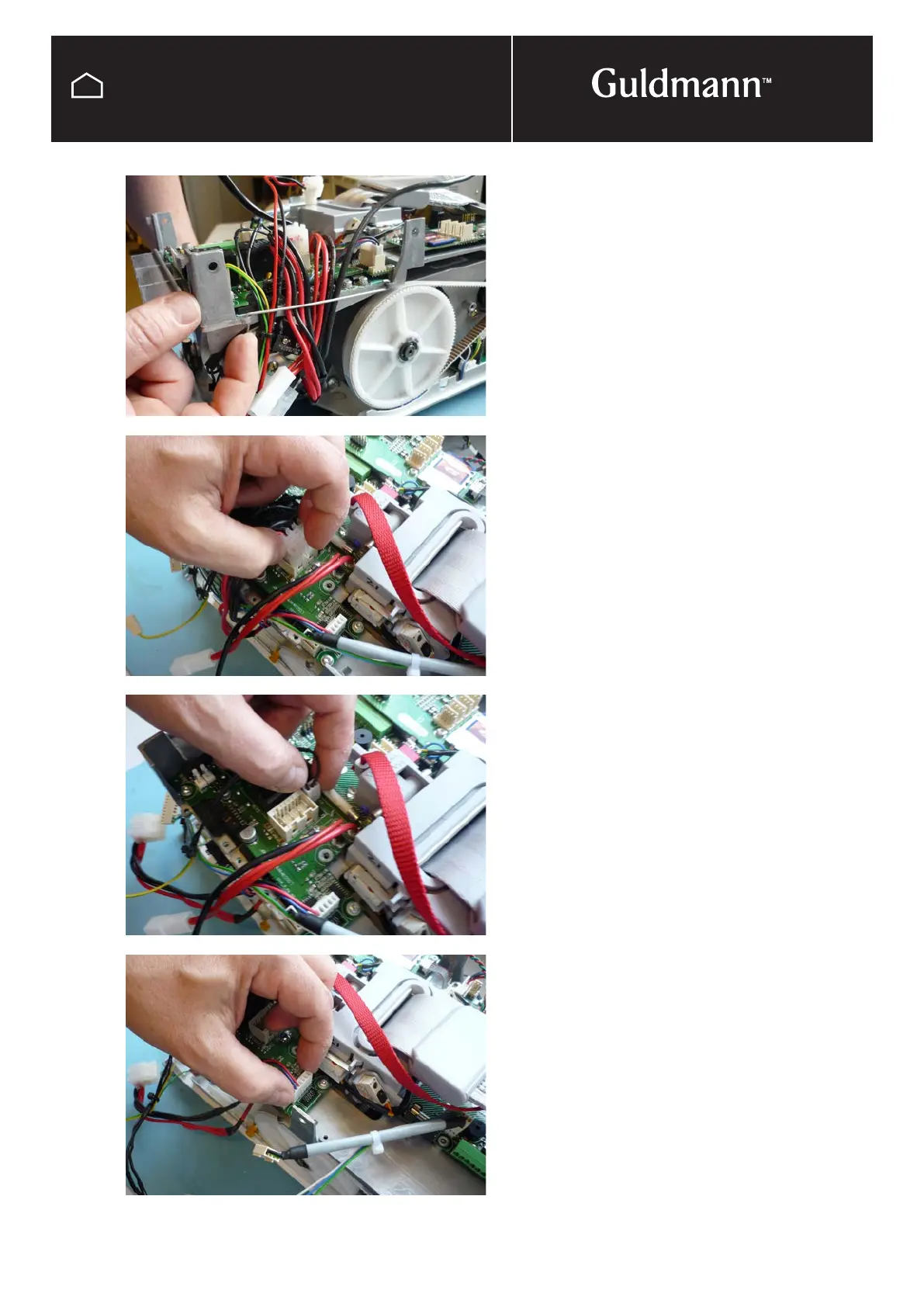

Removing the belt drive
Remove the cable holder on the side of the
cooling plate.
Unplug all wires attached to belt drive from PCB.
This should be
A. Motor wires
B. Mechanical brake wires
C. Tacho wires
