SERVICE AND REPAIR
GH3

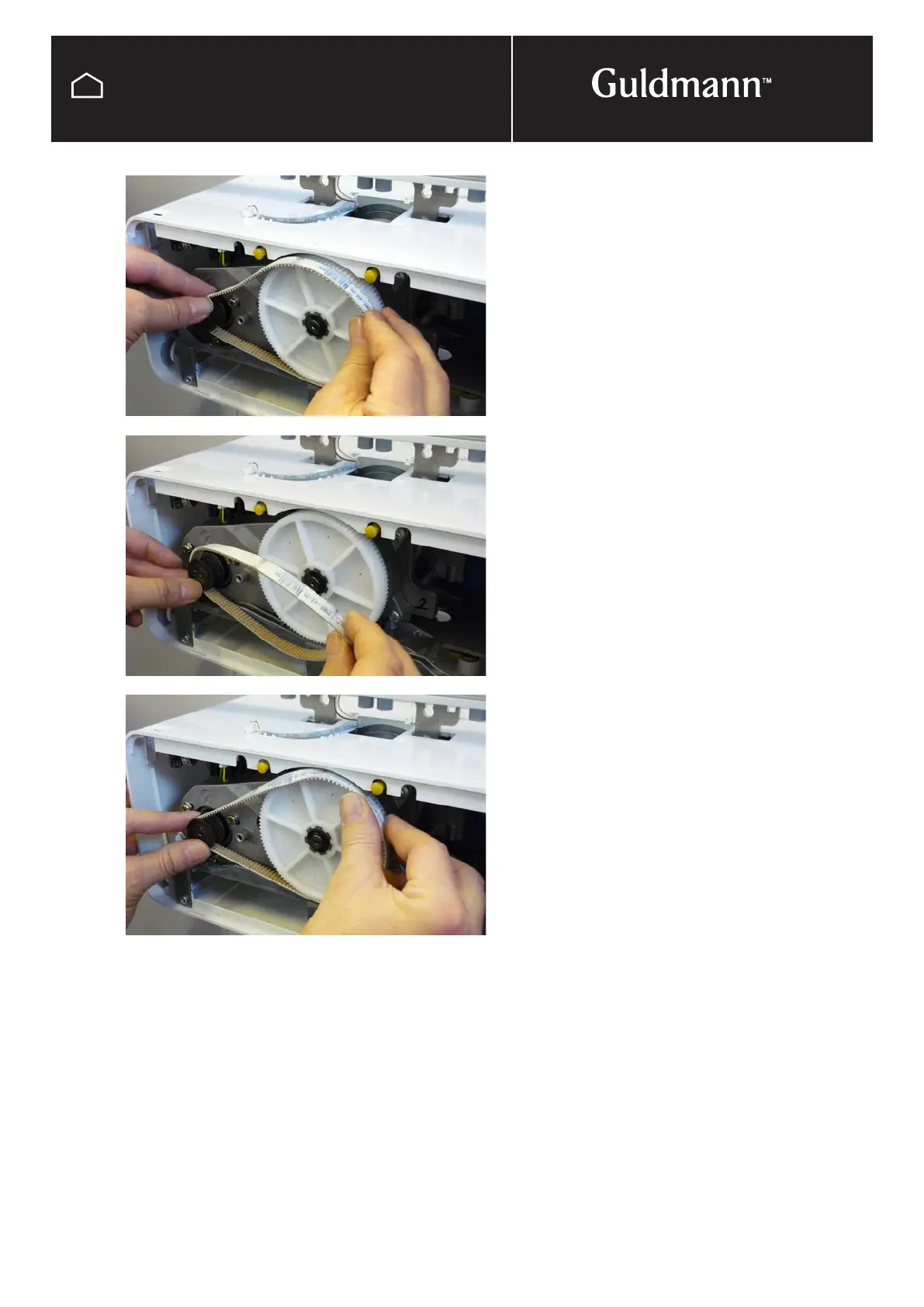

Replacement of timing belt
Replacement of timing belt
Remove the timing belt by sliding it off the large white gear-
ing wheel.
Replace the timing belt by putting the belt over the small
motor wheel then slide the belt over the large gearing
wheel.
