Guldmann GH - 550548_01 Motor Safety 2010 PCB, Spare Part

© Guldmann GB/US-09/2016 • #550376_3
48
SERVICE AND REPAIR
GH3

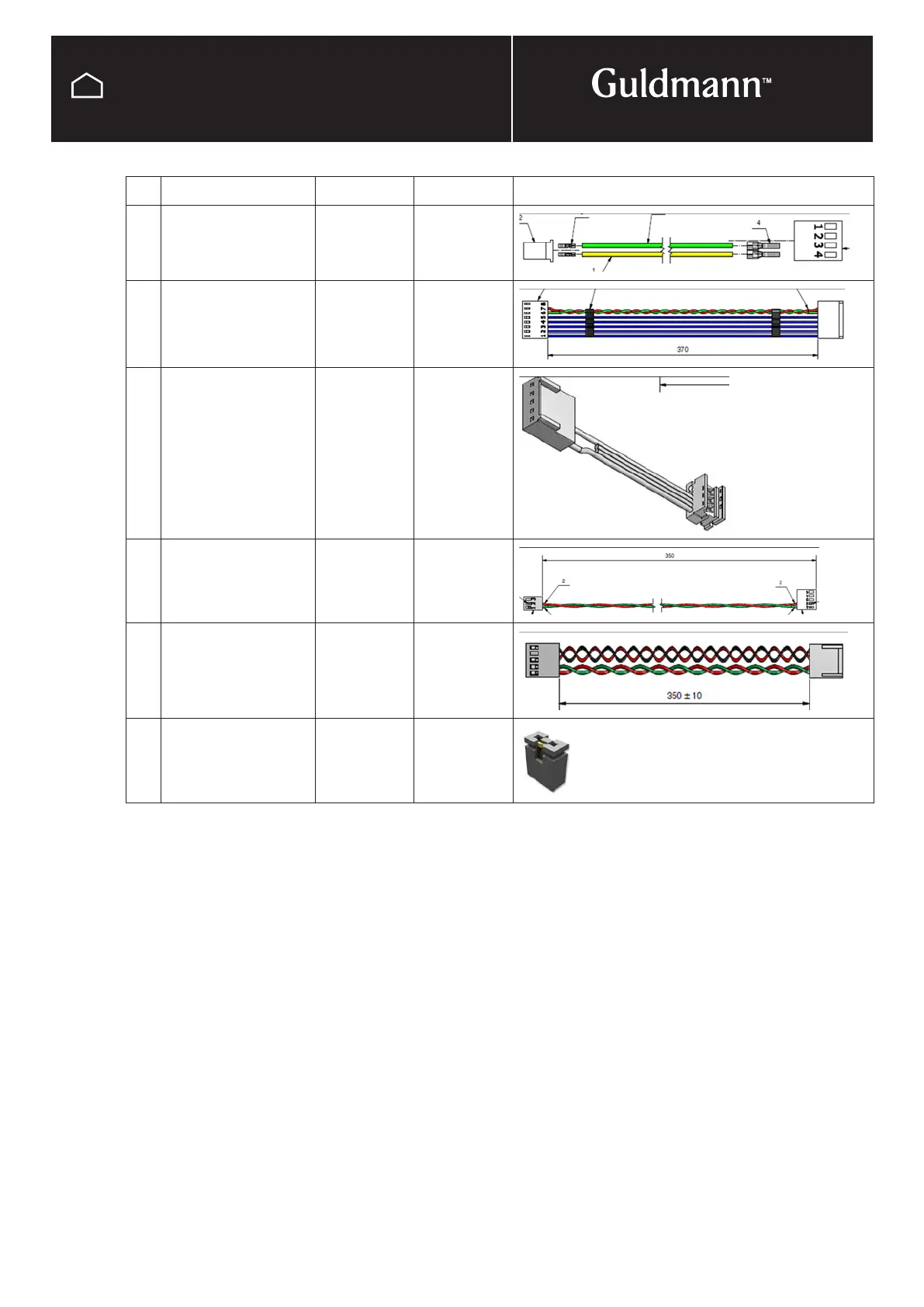

550548_01 Motor safety 2010 PCB, spare part
No. Description From To Image, drawing
1 Charger signal, cable 550396
J20
550397
J4
2 Communication cable
MotorSafe/MotorSafe
550396
J10 or J11
550396
J10 or J11
3 Communication
Power cable
550396
J2
551203
until ed. 5
J5
4 Cable, RS 485 com,
L = 350 mm
550396
J3 or 550202
via 550526
551203
until ed. 5
J8
5 Cable RS485, 5V com,
L = 350 mm
550396
J2
551203
ed. 8+
J105
6 Jumper
