SERVICE AND REPAIR
GH3
550548_01 Motor safety 2010 PCB, spare part

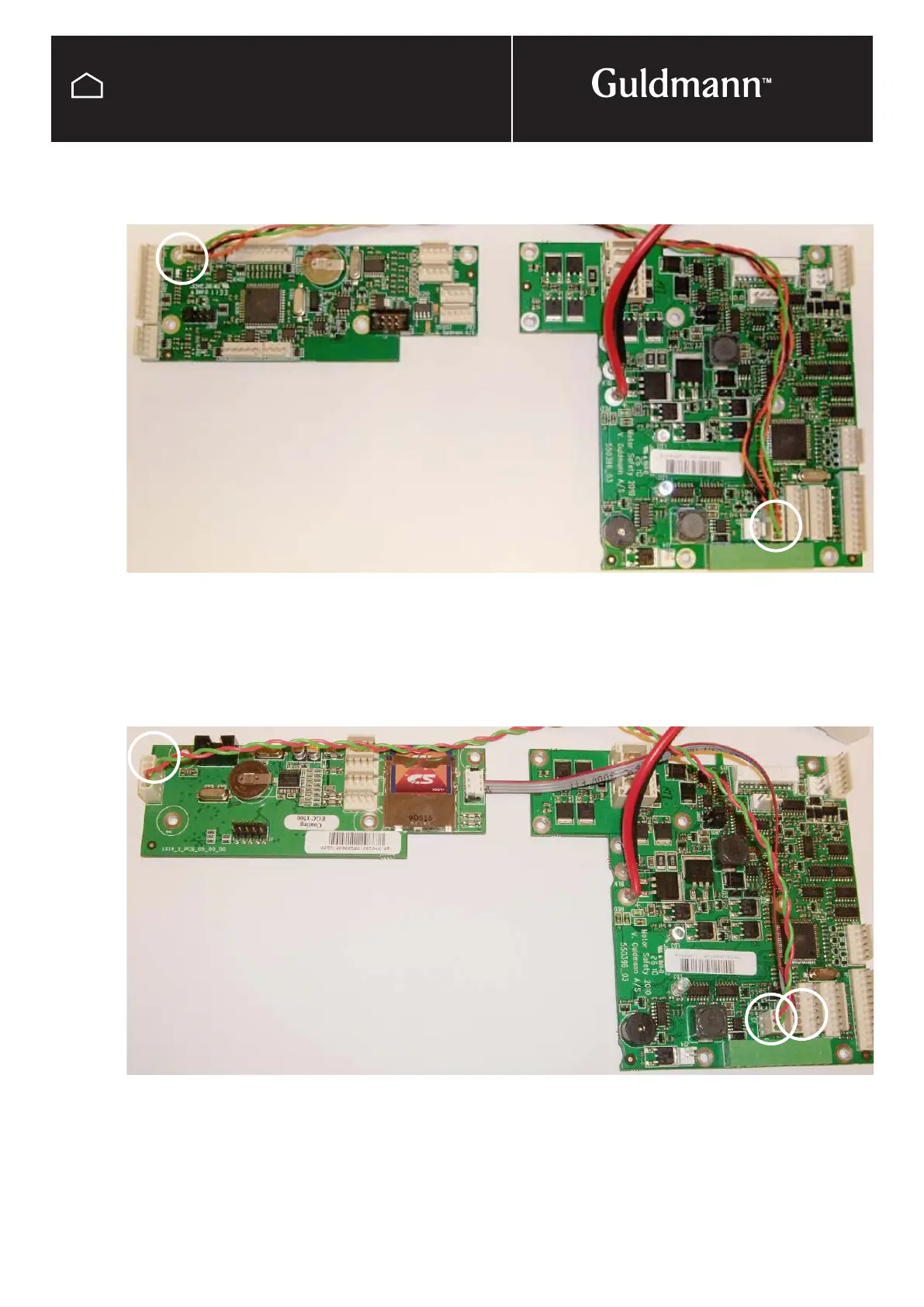

Connecting 550396 Motor Safety pcb to 551203 Communication pcb (edition 8+)
Cable 5: Connects to J105 on communication PCB to J2 on MotorSafety PCB
Connecting 550396 Motor Safety pcb to 551203 Communication pcb (until edition 5, with SD card)
Cable 3: Connects to J5 on communication PCB to J2 on Motor Safety PCB
Cable 4: Connects to J8 on communication PCB to J3 on Motor Safety PCB
