© Guldmann GB/US-09/2016 • #550376_3
50
SERVICE AND REPAIR
GH3
550548_01 Motor safety 2010 PCB, spare part

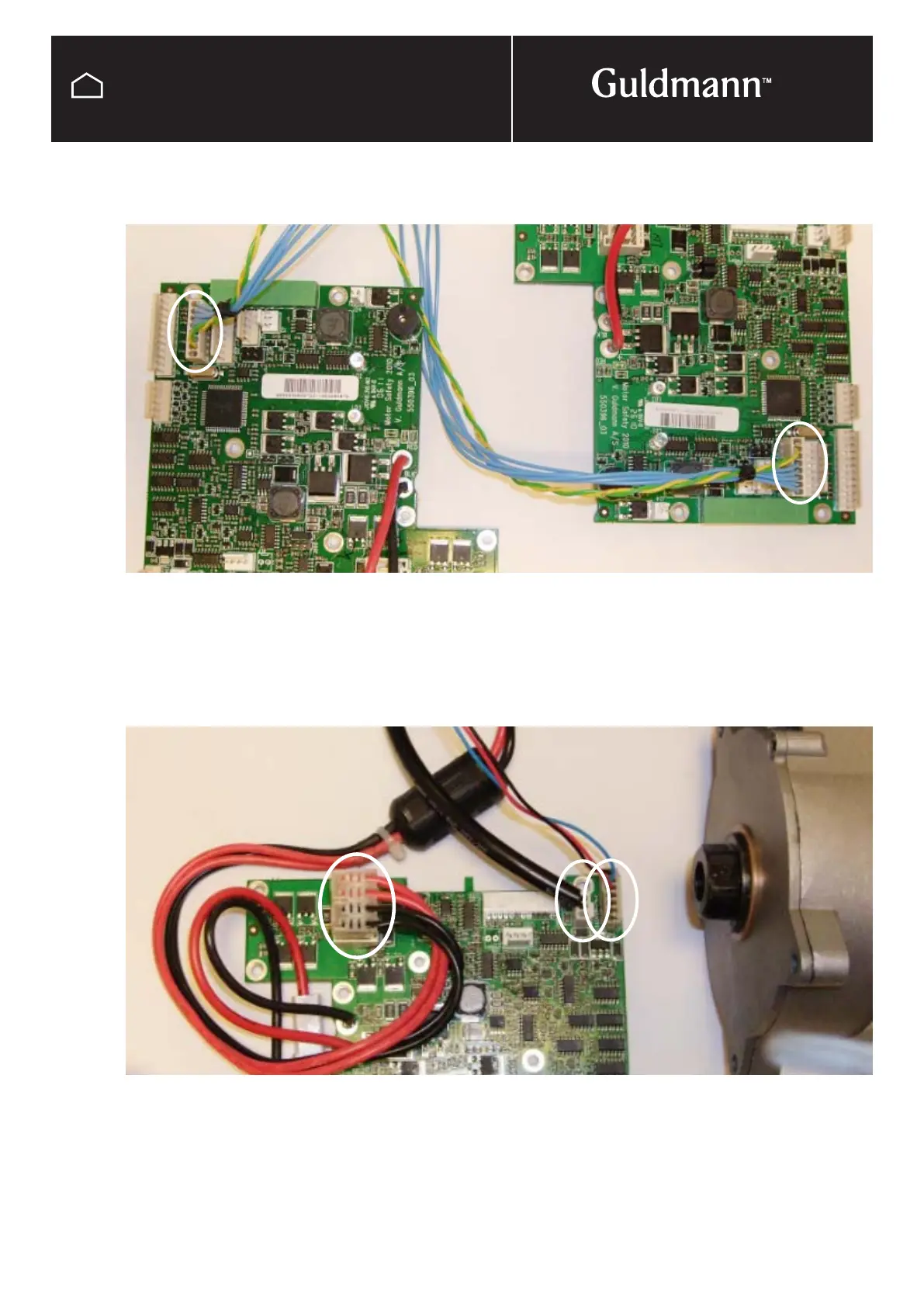

Connecting 550396 Motor Safety pcb to another 550396 Motor Safety pcb
Cable 2: Connects J10 or J11 on pcb 1 to J10 or J11 on pcb 2 (Note.: J10 and J11 are identical, and the spare one are
used to connect hoists in a twin configuration).
Connecting 550396 Motor Safety pcb to Lifting motor
Lifting motor Connects to J8, Break connects to J12 and the tacho connects to J14.
