SERVICE AND REPAIR
GH3
550548_01 Motor safety 2010 PCB, spare part

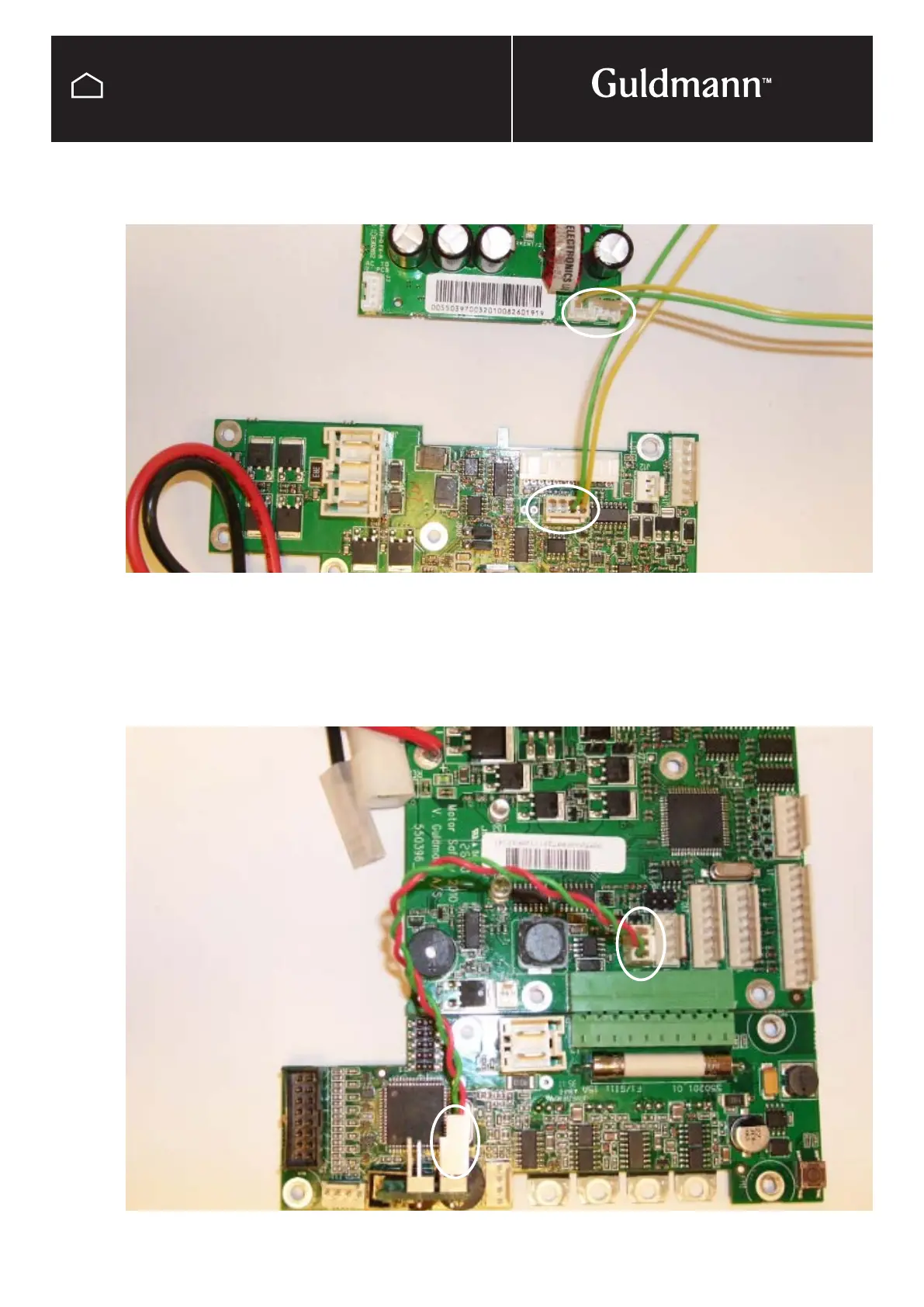

Connecting 550396 Motor Safety pcb to 550397 Charger pcb
Cable 1: Connects J20 on 550396 MotorSafety pcb to J4/J6 on 550397 Charger pcb.
Connecting 550396 Motor Safety pcb to 550201 Motor AUX pcb
When connecting to 550201 Motor AUX, re-use the RS485 connection and connect to J3.
