SERVICE AND REPAIR
Swivel assembly instruction
The Swivel is compalible with:
14600 - Mobile bath chair
14610 - Mobile Bath stretcher
28445 - Horizontal stretcher
28456 - Horizontal lifting support

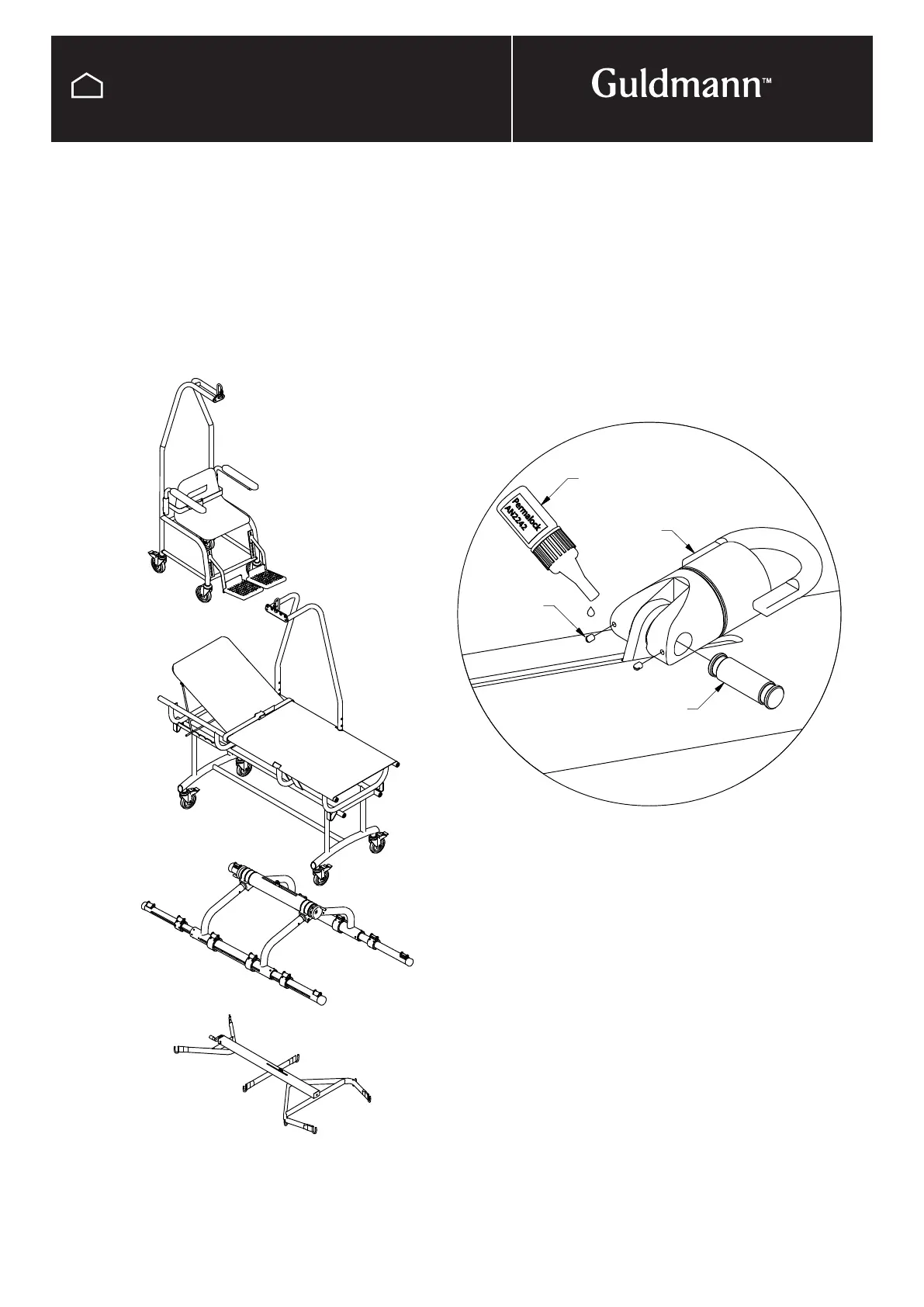

The swivel attachment is assembled by inserting the shaft
as shown in diagram 1.
Both set screws must be secured with thread locking adhe-
asive ”Permelock AN2242”.
Adheasive will have set after 2-3 houres and will have har-
dened compleatly after 12 houres.
Thread locking adheasive
Shaft
Set screw
Swivel link
