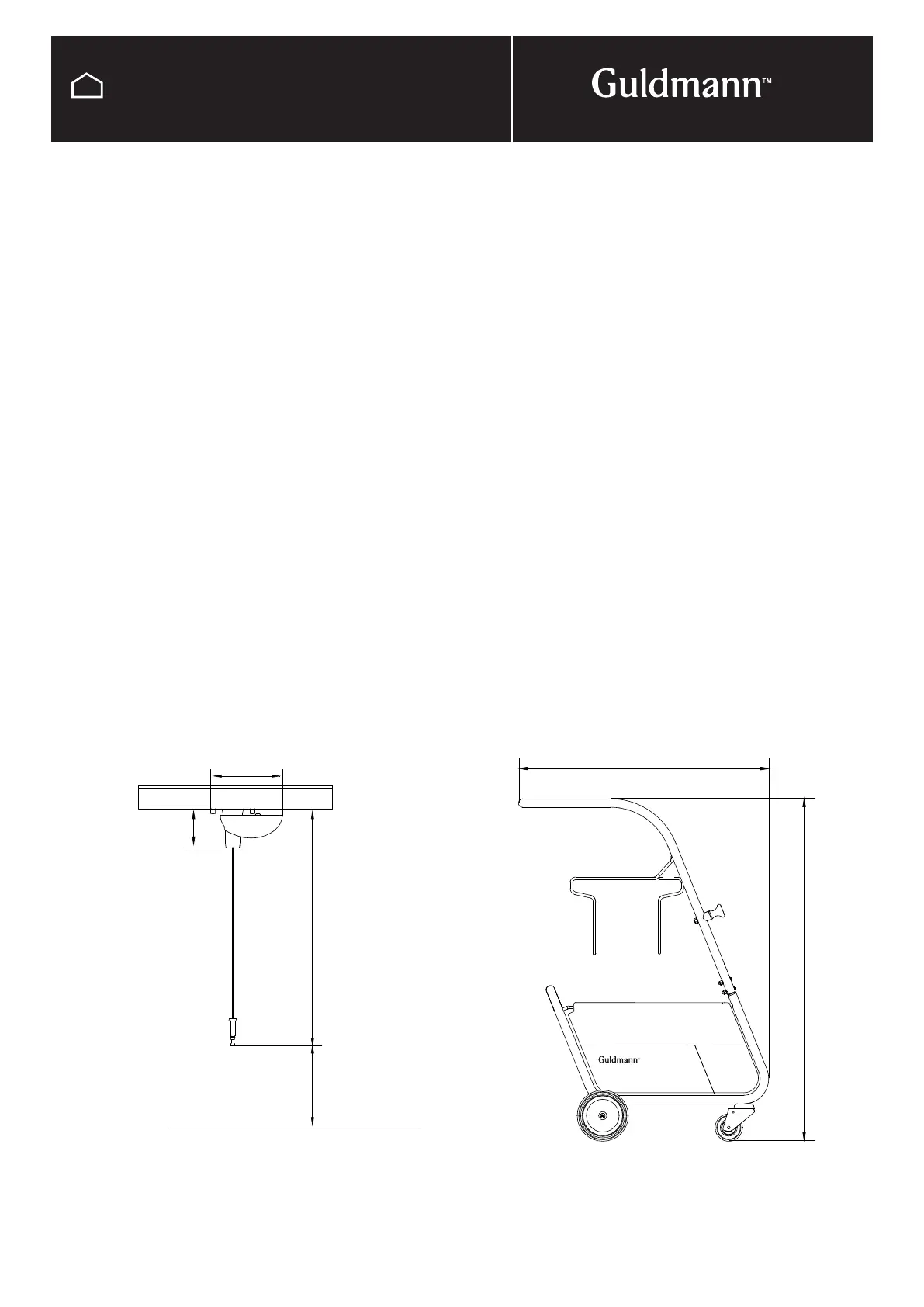

GENERAL INFORMATION
Trolley for GH1 F
Functions
Max. load : 255 kg (560 lbs)
Weight
Travelling trolley : 1.2 kg (2.6 lbs)
Measurements
A : 98 mm (4”)
B : 166 mm (6
1
/2”)
C*, max. : 2800 mm (110”)
D, min. : 650 mm (25
1
/2”)
D, max. : 750 mm (29
1
/2”)
Depth of travelling trolley : 84 mm (3
1
/4”)
*Cord length C adapted to height of rail during installation
Transport trolley for GH1 F
Functions
Capacity, bag : 2-3 slings
2-3 lifting hangers
Capacity, max. : 25 kg (55 lbs)
Weight
Trolley including bag : 10.4 kg (22.8 lbs)
Measurements
A : 1005 mm (39
1
/2”)
B : 735 mm (29”)
Depth of transport trolley : 485 mm (19”)
Floor
Technical specifications
Trolley and Transport trolley for GH1 F
