16
GENERAL INFORMATION
Technical specifications
GH1 Q
Weight and materials
SWL : 175 kg (385 lbs), 205 kg (450 lbs),
255 kg (560 lbs)
Own weight : 8.0 kg (17.6 lbs)
Covers : Impact-resistant UL 94 V-0 flame
retardant recyclable plastic

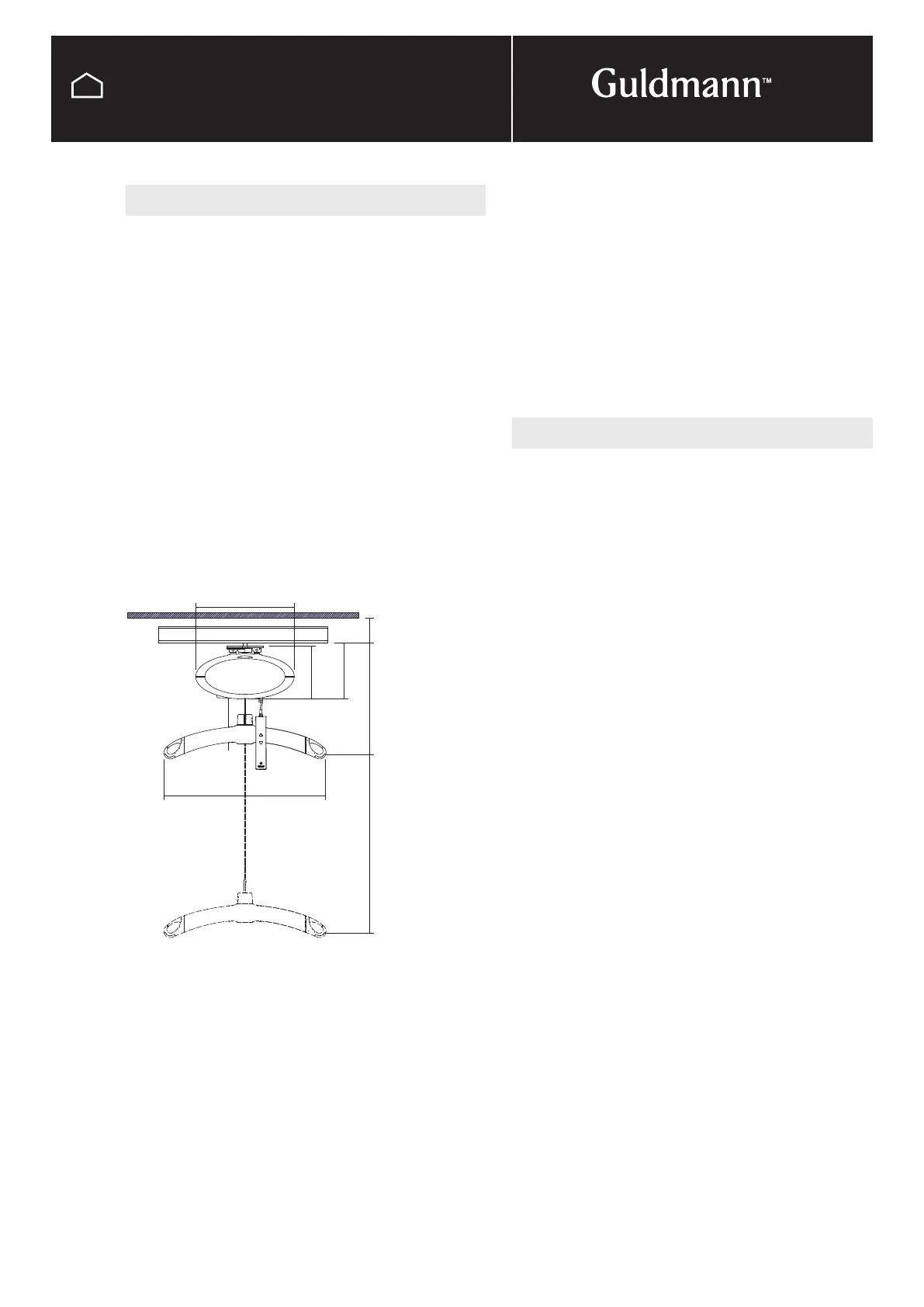

Dimensions
A : 580 mm (22
3
/4”)
B : 350 mm (13
3
/4”)
C : 187 mm (7
1
/2”)
D : 196 mm (7
3
/4”)
E, min : 82 mm (3
1
/4”)
F, min : 427 mm (16
3
/4”)
G : 2500 mm (98”)
Depth of hoist : 194 mm (7
3
/4”)
Functions
Operation : Hand control
Sound level : 52 dB (A)
Safety
Emergency stop : Yes
Emergency lowering
device : Yes, electrical
Control of lifting strap : Yes
Cut-off angle : 45° along the rail
10° across the rail
Electronics
On/off : Automatic when used. Soft start/stop.
Overload protection.
SWL : 175 kg (385 lbs), 205 kg (450 lbs),
255 kg (560 lbs)
Battery : 1 x 24 V NiMH, 2.8 Ah
Max charging time : 3 hours
Battery protection : At battery voltage below 22 V the
indicator light turns yellow. The hoist
stops if the voltage falls below 20 V
Power supply : 36 V DC, 30W
Supply voltage,
transformer : 100-240V AC, 47-63 Hz
Protection classification (IP) according to IEC 60529
Lifting module : IP 44
Hand control : IP 44
Charging station : IP 20
Transformer : IP 20
Labelling
The product is manufactured in compliance with the Council
Directive 93/42/EEC of June 14th 1993, including amendments,
as medical device class 1.
Classification
Pursuant to ISO 9999
Patents : PA 2008 00888
PA 2008 00894
PA 2008 00895
