B
FE
D
C
A
G
© Guldmann GB/US-09/2016 • #550376_3
13
GENERAL INFORMATION
Technical specifications
GH3 Twin
Weight and materials
SWL : 250 kg (550 lbs), 500 kg (1100 lbs)
Own weight : 19,2 kg (42.2 lbs)
Covers : Impact-resistant UL 94 V-0 flame
retardant recyclable plastic

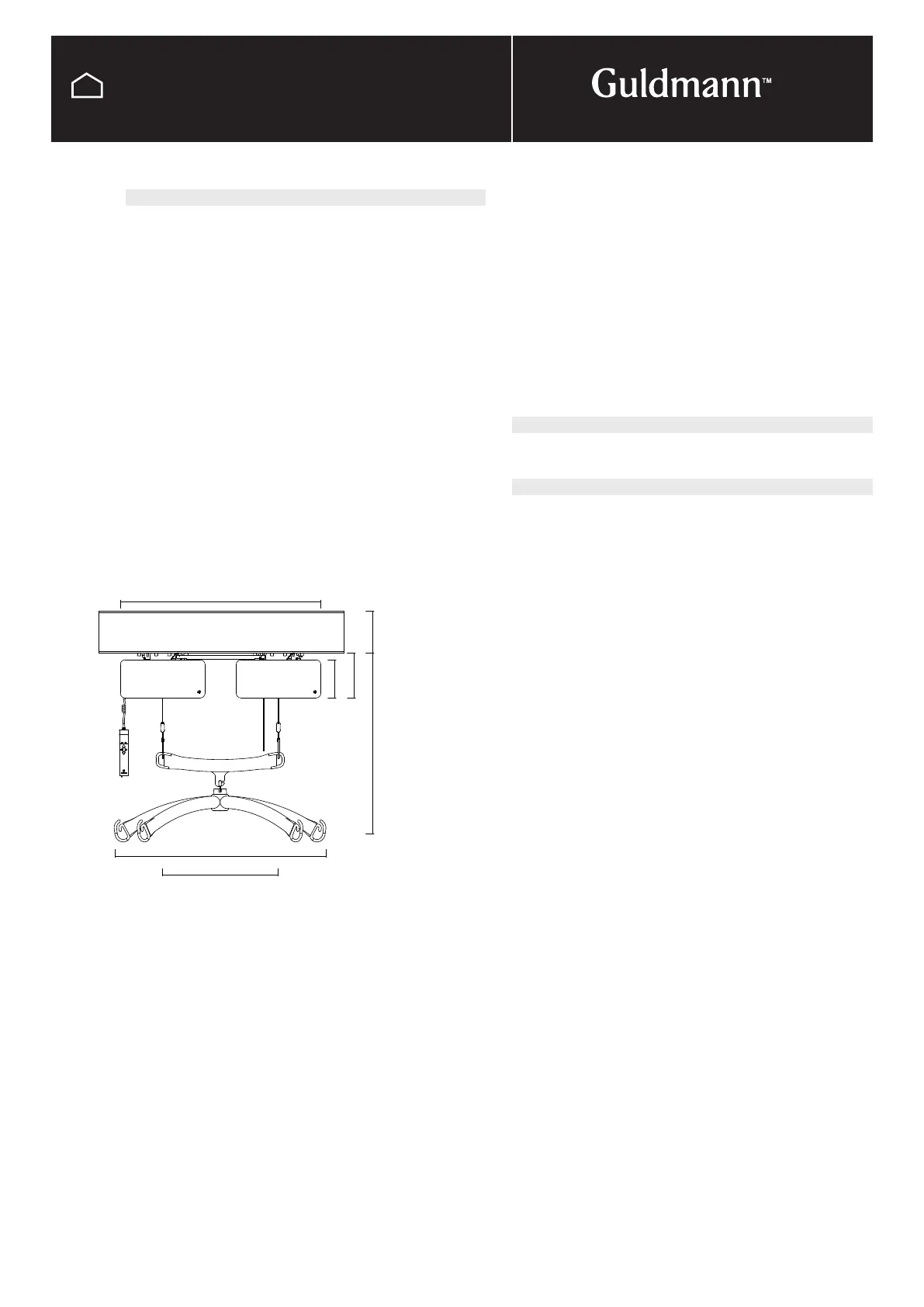

Dimensions
A : 860 mm (33
3
/4”)
B : 700 mm (27
1
/2”)
C : 156 mm (6
1
/4”)
D : 184 mm (7
1
/4”)
E, min : 82 mm (3
1
/4”)
F, min : 655 mm (25
3
/4”)
F, max : 3130 mm (122
3
/4”)
G : 473 mm (18
3
/4”)
Depth of hoist : 205 mm (8
1
/4”)
Functions
Operation : Hand control / IR
Sound level : 52 dB (A)
Safety
Emergency stop : Yes
Emergency lowering
device : Yes, mechanical and electrical
Control of lifting strap : Yes
Cut-off angle : 45° along the rail
10° across the rail
Electronics
On/off : Automatic when used. Soft start/stop.
Overload protection.
SWL : 250 kg (550 lbs)
Battery : 2 x 24 V NiMH
Max charge time : 4 hours
SWL : 500 kg (1100 lbs)
Battery : 4 x 24 V NiMH
Max charge time : 8 hours
Battery protection : At battery voltage below 22 V the
indicator light turns orange. The hoist
stops if the voltage falls below 20 V
Power supply : 33 V AC, 2.5 A
Supply voltage,
transformer : 100-115/230V AC, 50/60 Hz
Protection classification (IP) according to IEC 60529
Lifting module : IP 20
Hand control : IP 44
Remote control : IP 20
Transformer : IP 20
Labelling
The product is manufactured in compliance with the Council
Directive 93/42/EEC of June 14th 1993, including amendments, as
medical device class 1.
Classification
Pursuant to ISO 9999
Patents : PA 2008 00888
PA 2008 00894
PA 2008 00895
