Guldmann GH - IR Remote Control

Ch.1 Ch.2
© Guldmann GB/US-09/2016 • #550376_3
91
SERVICE AND REPAIR
IR-receiver for:
Combi-lock.
IR-receiver for:
Turntable, transver-
se drive motor and
switch track.

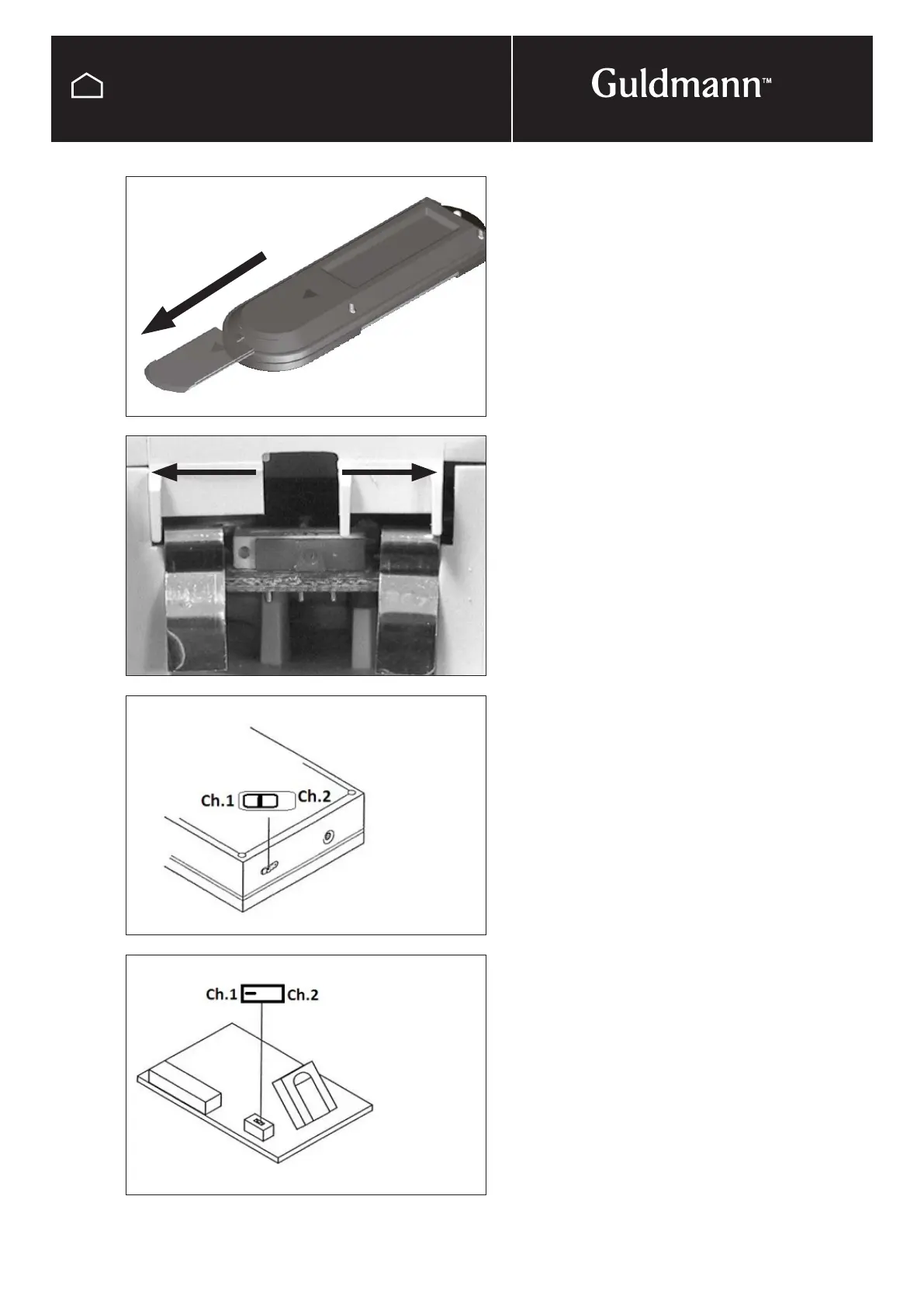

Setting the IR remote control
The IR remote control offers the opportunity to shift
between channels (Ch.1/Ch.2). The IR remote control is set
to Ch.1 from Guldmann. To change channel, slide off the
cover for the battery.
The switch for changing the channel is located at the top of
the battery compartment.
Setting the IR-receiver - Channels
The IR-receiver offers the opportunity to shift between
channels (Ch.1/Ch.2).
The IR receiver is set to Ch.1 from Guldmann. Adapt the
IR-receiver to perform the desired function.
NB! If the rail system includes two hoists the channel on
both the IR receiver and the IR remote control can be
changed enabling the hoists to be operated independently
by each their remote control.
IR remote control
