SERVICE AND REPAIR
IR remote control
Setting the IR-receiver
The IR-receiver is also available for use with Switch track,
Combi-lock, Turn- table and Transverse drive motor for
Guldmann rail systems. The IR remote control is by
Guldmann set to control all additional products by pressing
key no. 5.
If the rail system includes more products from Guldmann,
and they should be controlled by each their key, the IR-
receiver can be set to control each product independently,
however only up to 6 products.
IR-receiver for Switch track, Transverse drive motor
and Turntable
Do the following on each of the IR-receivers:
Key no. 5: The wire mounted in pos. 6 is standard
Key no. 6: The wire mounted in pos. 6 is moved to pos. 7
Key no. 7: The wire mounted in pos. 6 is moved to pos. 8
Key no. 8: The wire mounted in pos. 6 is moved to pos. 9
Key no. 9 and 10 implies that only this IR-receiver is set to
channel 2 (Ch. 2).
Key no. 9: The wire mounted in pos. 6 is moved to pos. 8
Key no. 10: The wire mounted in pos. 6 is moved to pos. 9
Channel 1 on IR-receiver
Key/Function Terminal on plug
for IR-receiver
VCC 24V 1
Key no. 1 (Up) 2
Key no. 2 (Down) 3
Key no. 3 (Left) 4
Key no. 4 (Right) 5
Key no. 5 6
Key no. 6 7
Key no. 7 8
Key no. 8 9
GND 10
Channel 2 on IR-receiver
Key no. 9 8
Key no. 10 9

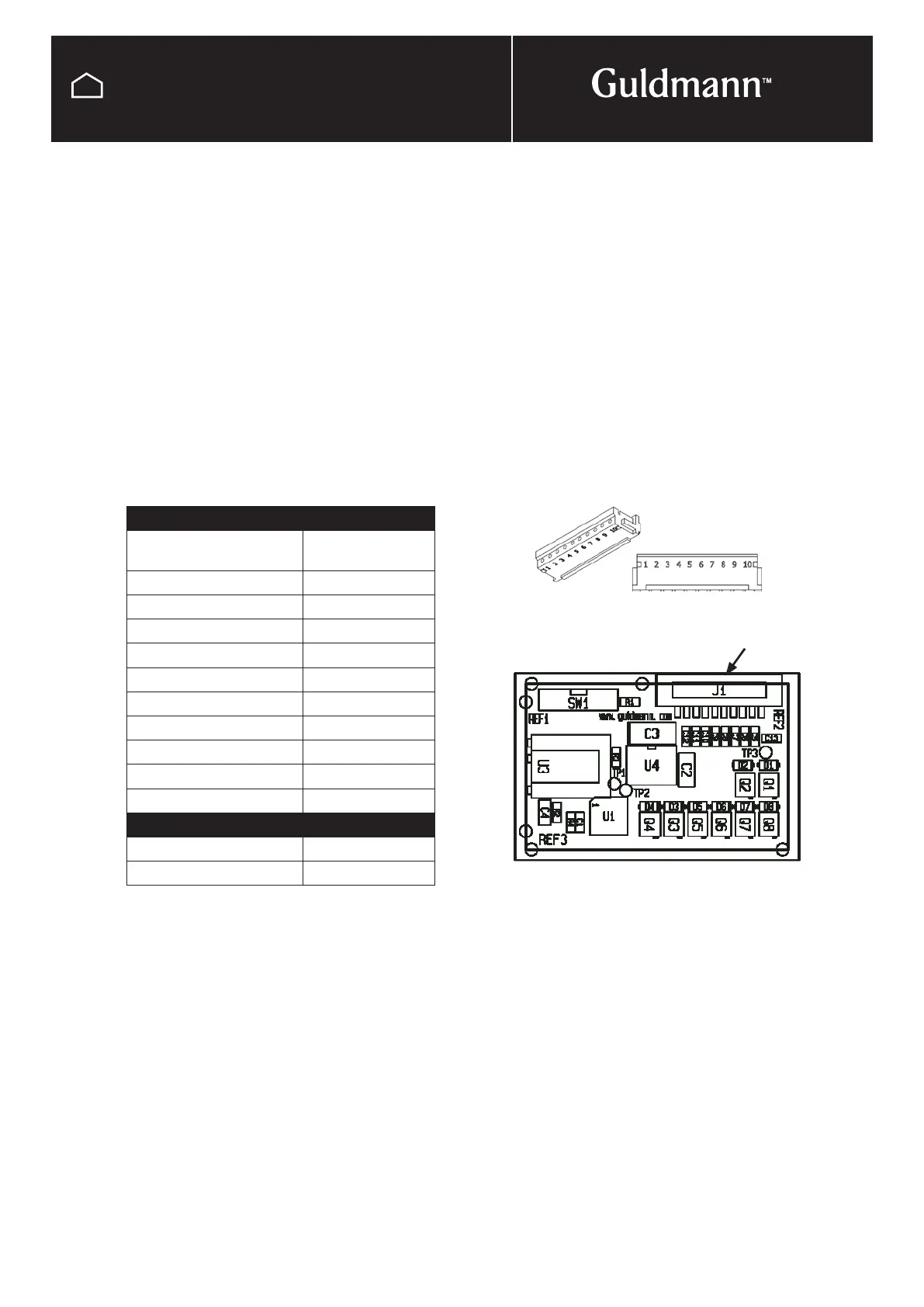

IR-receiver
Plug for IR-receiver on J1
