SERVICE AND REPAIR
GH3
Replacement of belt drive
Removing the belt drive
Release the mechanical brake.

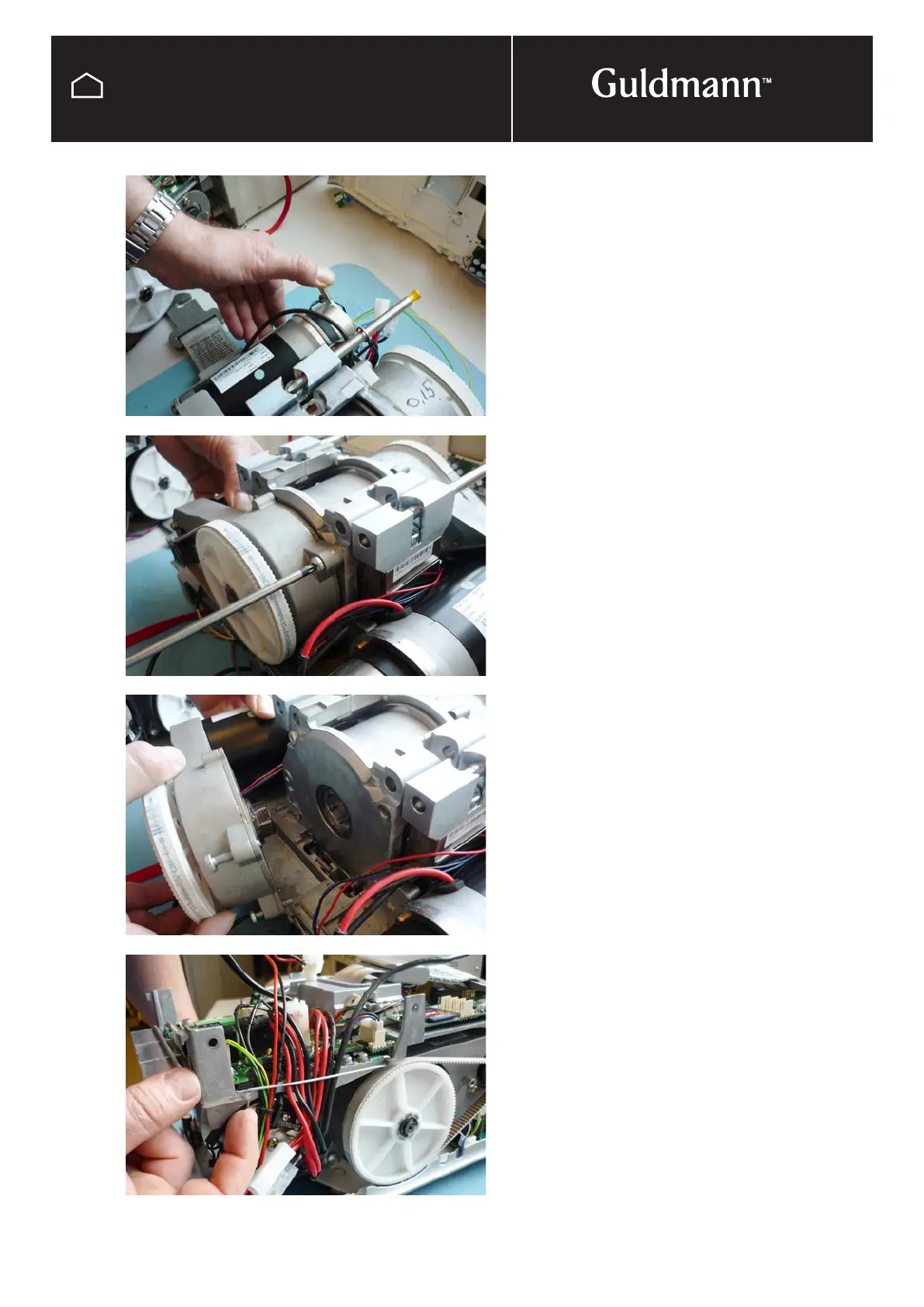

Undo the three screws on the drive belt and release it from
the strap wheel. Use torx 25.
Replace belt drive and plug all plugs back in place.
Remember to put the cable holder back in place.
When replacement of belt drive is complete remember to
activate mechanical brake.
