SERVICE AND REPAIR
GH3
Replacement or adjustment of hand control
Replacment or adjustment of hand control

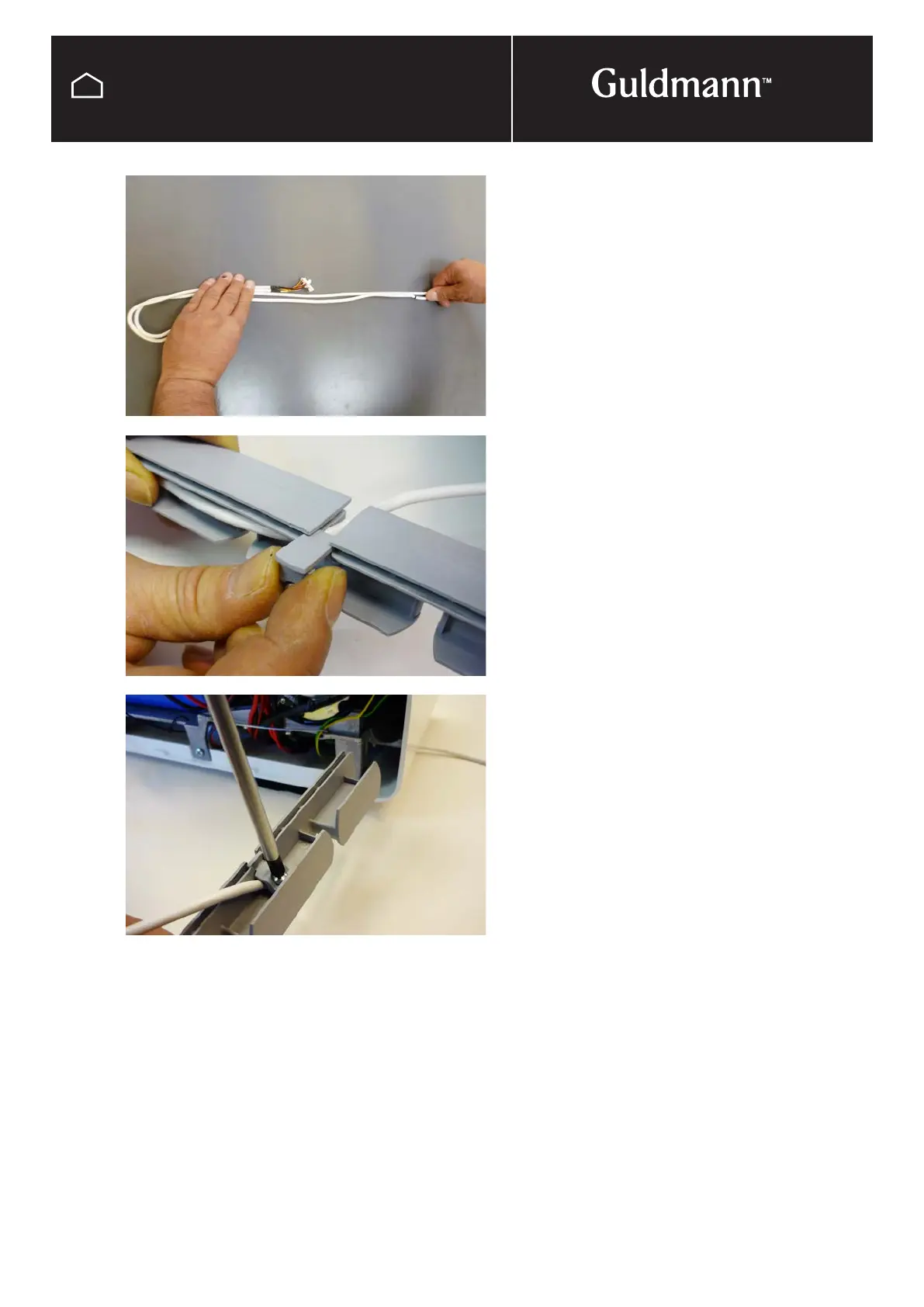

Put the replacement hand control next to the removed
hand control. Mark the cable length needed.
Refix cable clamp and wind the cable on to the reser-
voir, remembering to keep wires side by side and leaving
approximately 250 mm (10 inch) of cable to be routed over
motor before connecting to PCB.
