SERVICE AND REPAIR

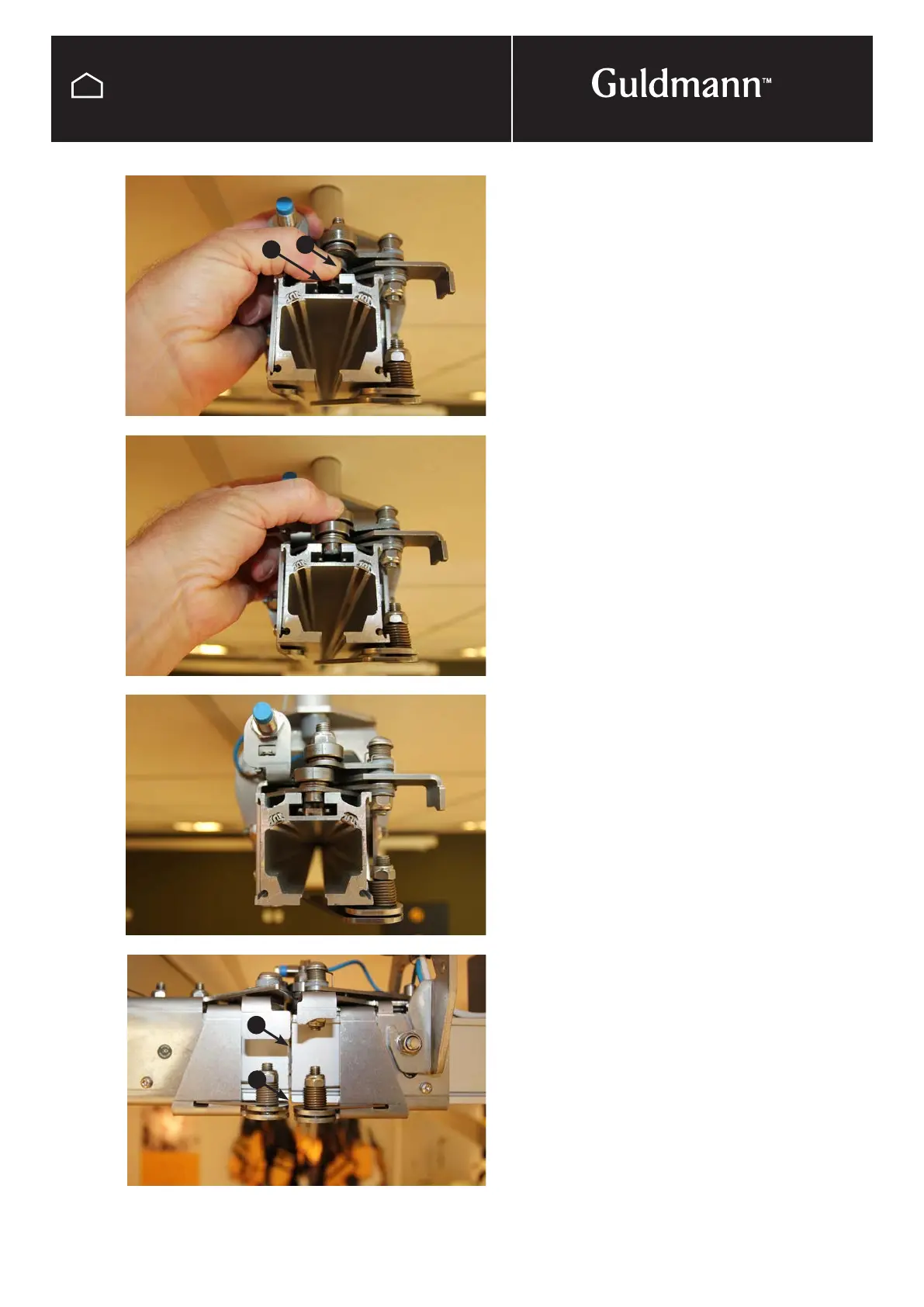

Push and release the bearing (1) – it shall move easily both
ways.
Check that the latch (tongue) is in the right position (2). The
measurement from rail end to the U-shaped cutout shall be
between 12 – 14 mm (
1
/2 inch).
Push and release the bearing – it shall move easily both
ways.
Check that the safety lock does not show signs of being
damaged or bent and that it is free of corrosion.
Check the distance between the rails (1), it must be
between 2 – 3 mm. The distance between sensor and metal
stand must have the same distance between 2-3 mm.
Check that the rails are at the same level (2). Because of
deflection, we recommend that the traverse rail is installed
½ -1 mm higher than the fixed rail.
Combi lock 3
