SERVICE AND REPAIR
Combi lock 3
Perform a pull test on the Combi lock system
Perform a pull test on the Combi lock system to check that
the traverse rail’s safety lock functions even when incor-
rectly used.
The reason for making this test is to ensure that the resist-
ance at the lock is sufficient, if it is forced open (not intend-
ed use).

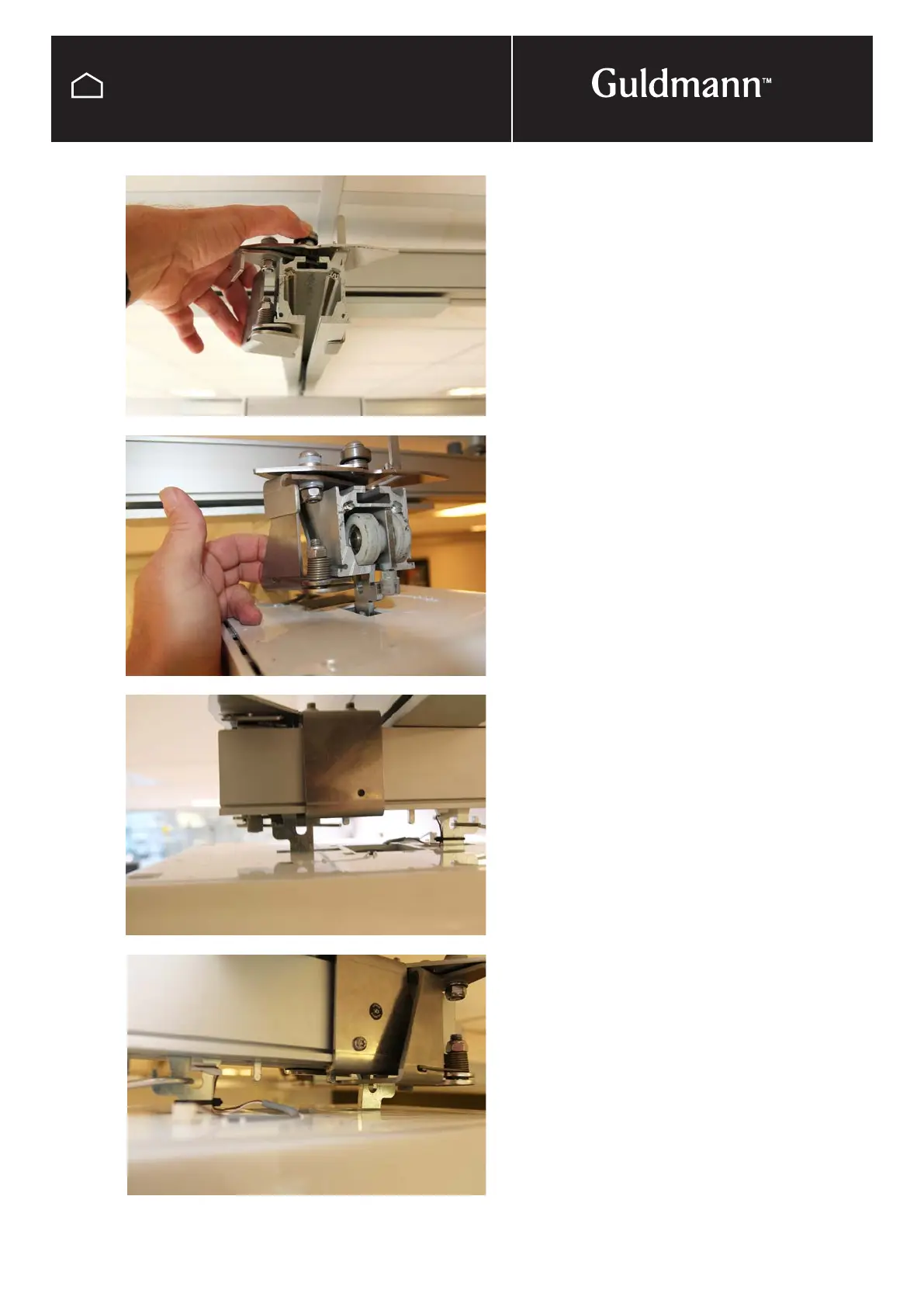

Step 1: Manually open the traverse rail’s safety gate by
pressing in the roller bearing and open the gate with your
fingers.
Step 2: Maneuver the hoist until it is positioned with one
set of wheels on either side of the safety gate and close the
gate in between the wheels.
