SERVICE AND REPAIR
Switch track GH

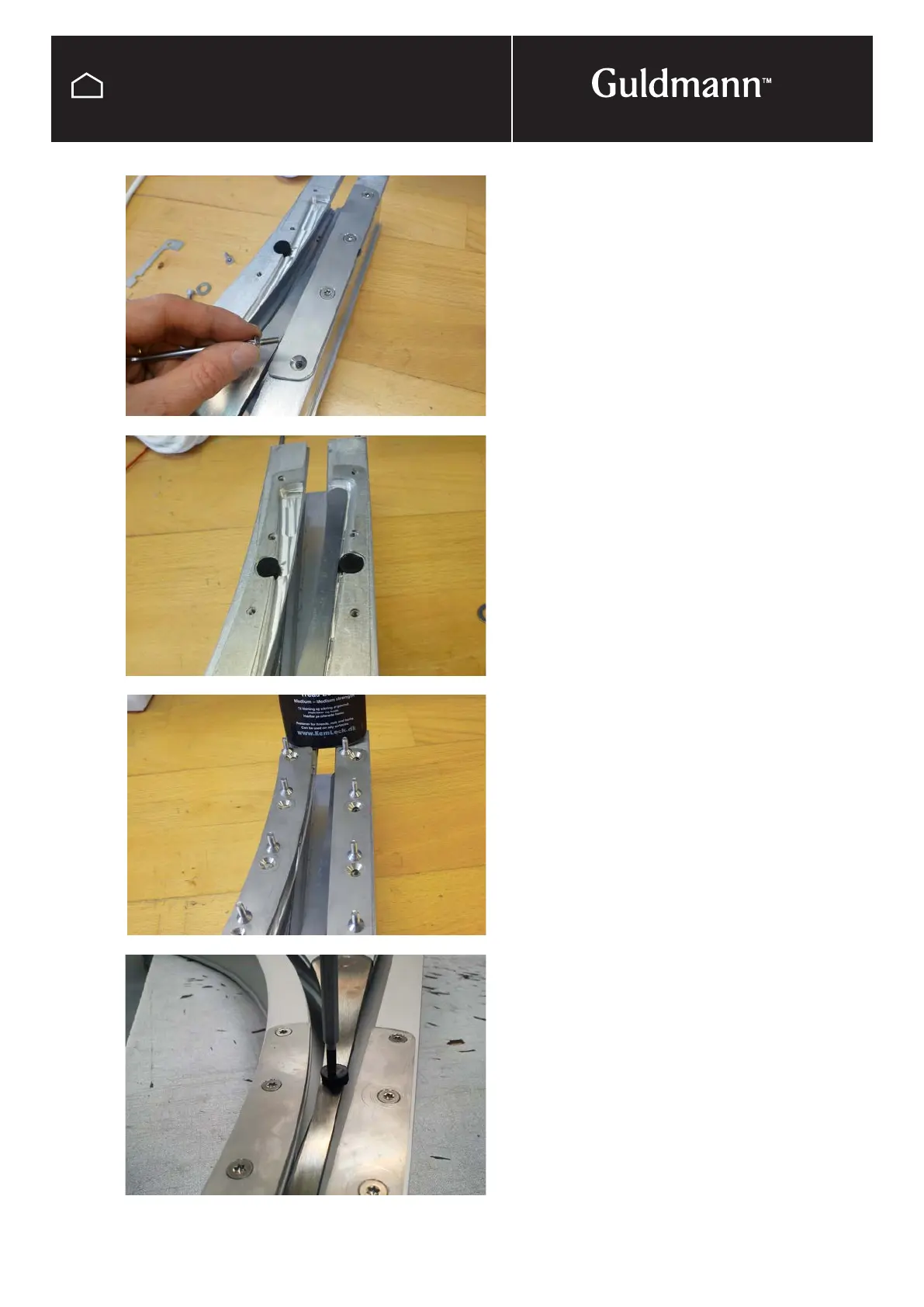

Installation of guide rails
Remove the screws holding the guide rails and remove the
old guide rails.
Place the distance guide rail curve GH and the two noise
damping for tongue ø12x5 mm.
Secure the 8 screws with Kemlock AS 43 or similar and
tighten all 8.
The tip of the tongue must be able to move from side to
side without touching either top or bottom of switch track.
If this is not so the tongue must be adjusted to ensure free
passage.
