SERVICE AND REPAIR
GH3
Replacement of lifting strap
Mounting the strap

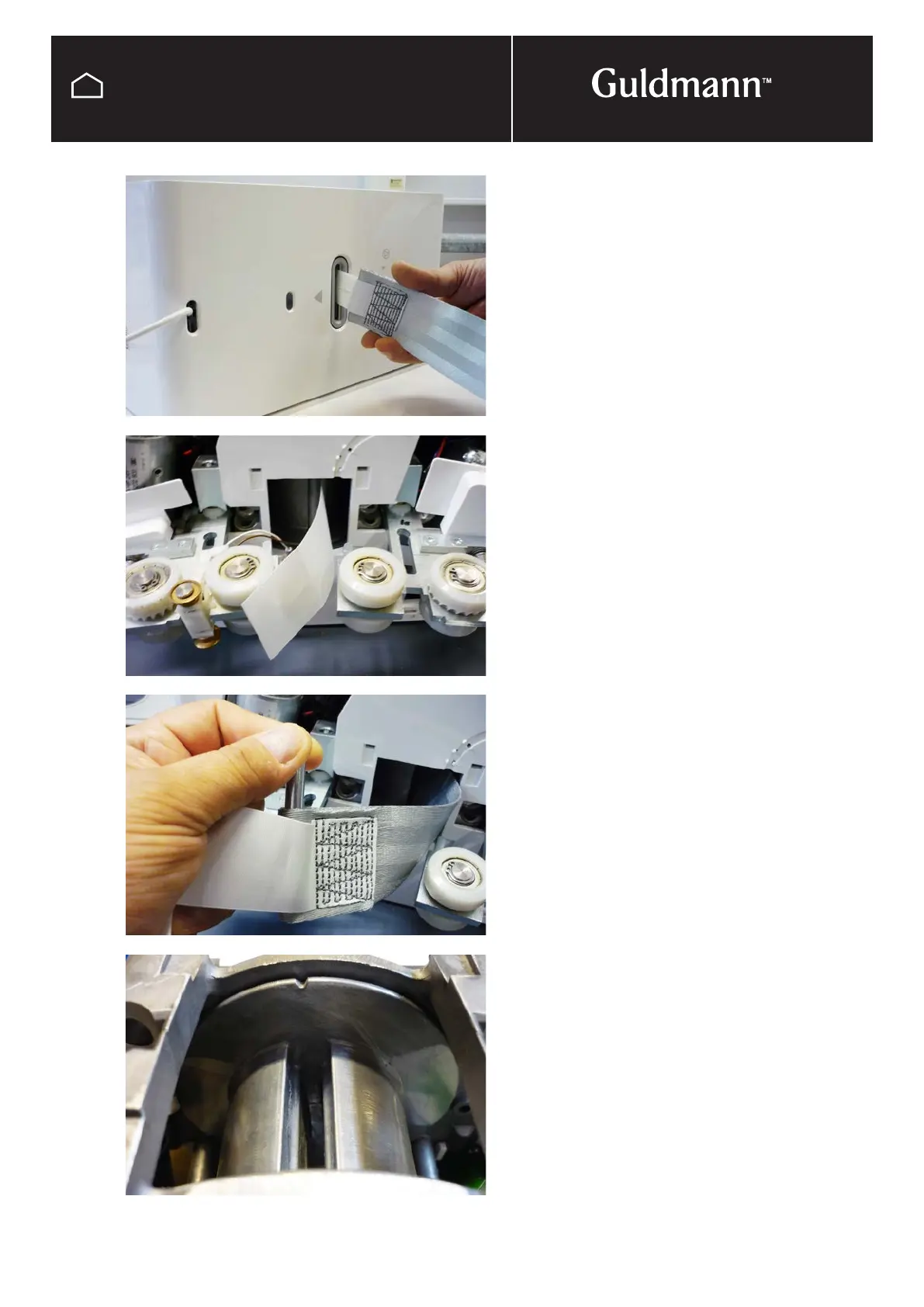

Take the white tag attached to the new lifting strap and
guide it through the strap wheel.
This can only be done if the slot on the strap wheel is inline
top and bottom.
IT IS IMPORTANT to mount the lifting strap correctly. Place
the strap with the fold turned away from the L.E.D.
When the white tag has come through the strap wheel and
out the top, pull it out while feeding the grey lifting strap
through the bottom of the hoist.
Replace the pin in the strap and pull the strap down from
the bottom of the hoist, so that the pin and strap are
placed in the strap wheel.
If you have problems getting the lifting strap through the
wheel, it is because the strap wheel is in the wrong posi-
tion. The wheel must be inline top and bottom.
