SERVICE AND REPAIR

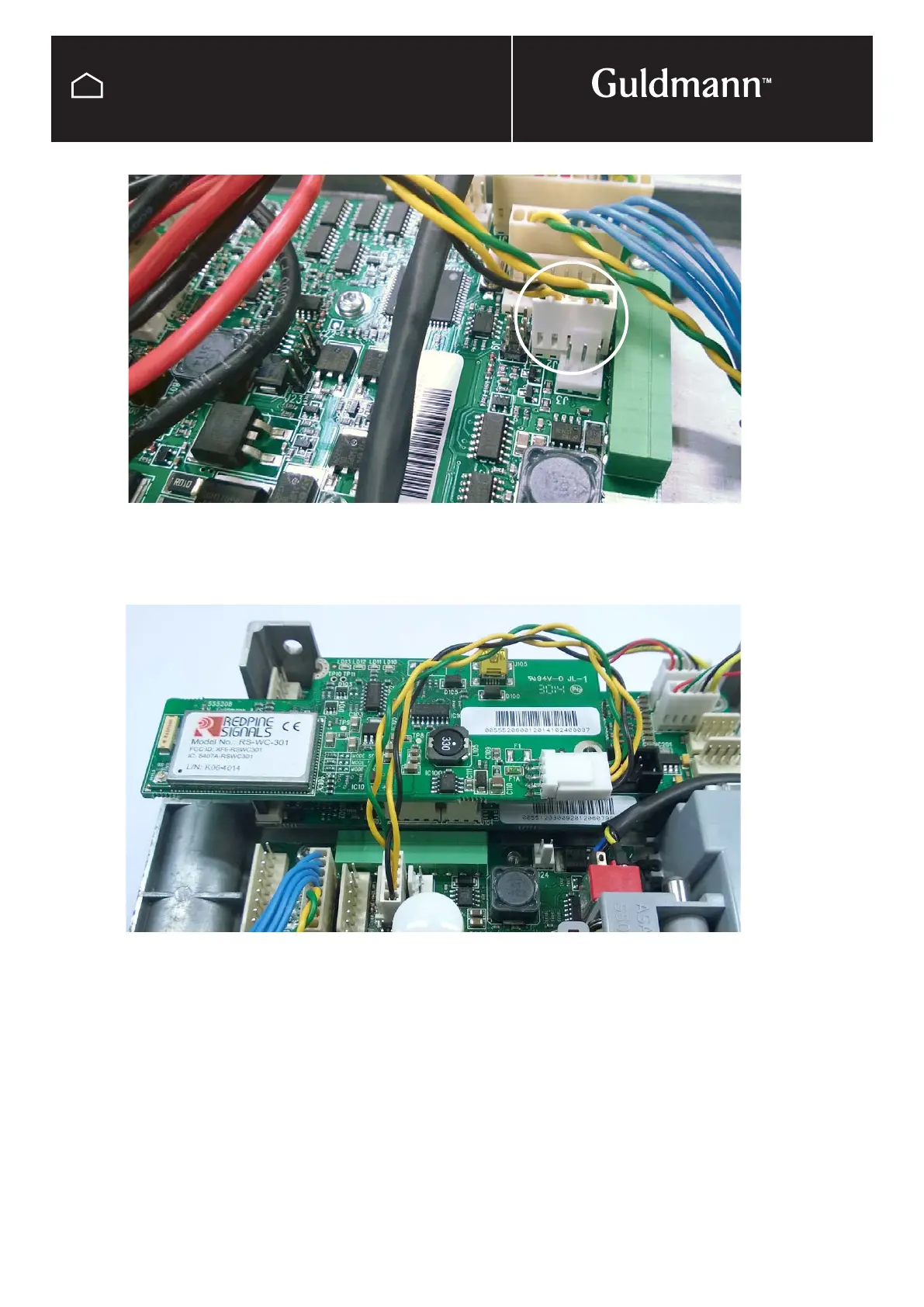

For one motor hoist:
When installing the Wi-Fi PCB on a one motor hoist, use the long wire to connect the J100 on the
Wi-Fi PCB to J2 on the Motor Safety PCB.
For two motor hoist:
When installing the Wi-Fi PCB on a two motor hoist, use the short wire to connect the J100 on the Wi-
Fi PCB to J2 on the nearest Motor Safety PCB. Follower pcb.
GH3
Installation of Wi-Fi PCB
