Guldmann GH - Page 84

Second attachment

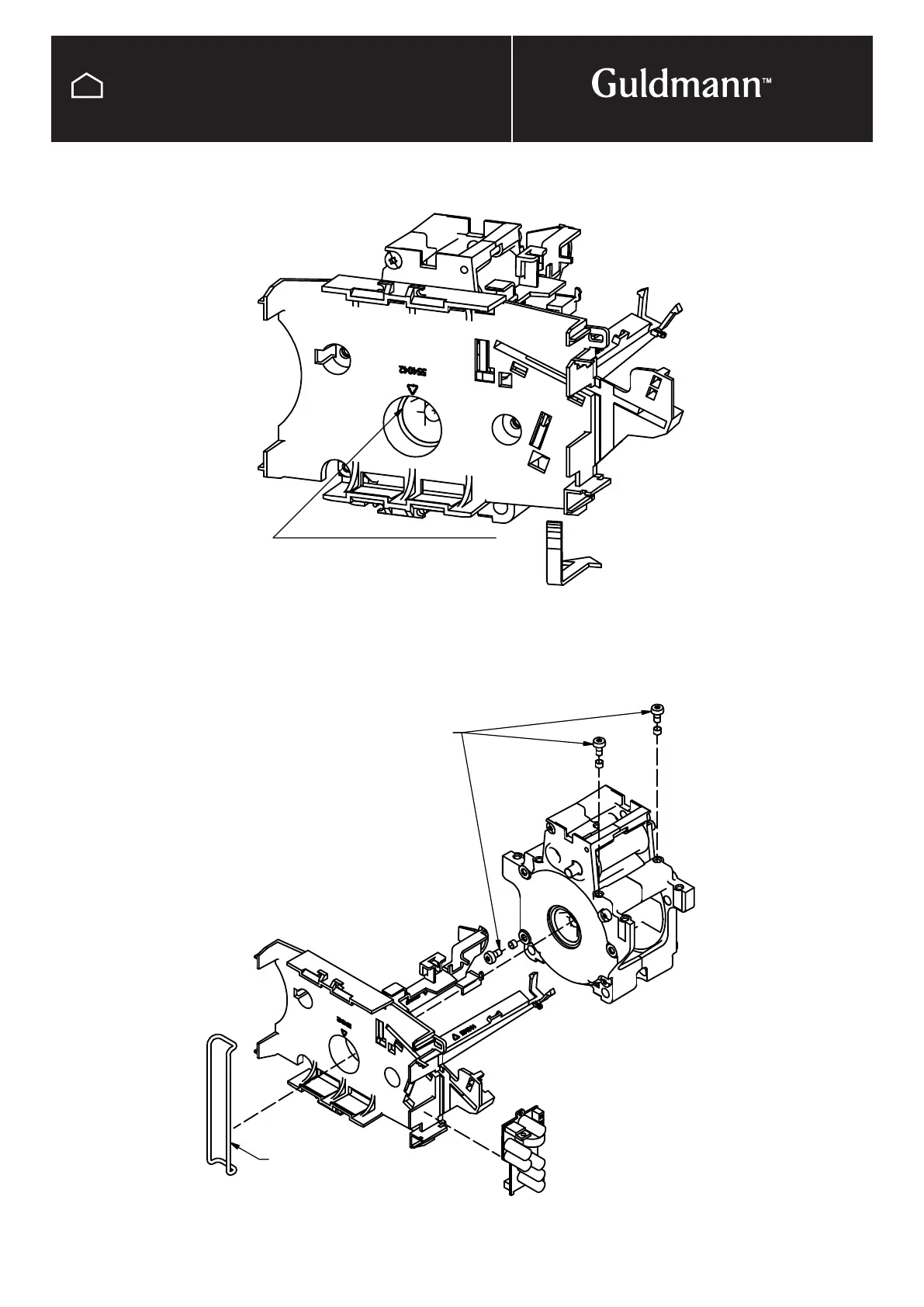

The tube-formed detail has to snap
into the bearing hole for the strap reel.
Push down and inwards
Final attachment
Screw & bush
O-ring
for secureing battery
© Guldmann GB/US-09/2016 • #550376_3
86
SERVICE AND REPAIR
GH1
Instructions for installing PCB and Battery unit
Final attachment
Screw & bush
O-ring, for secureing
of battery
Second attachment
The tube-formed detail has to snap
into the bearing hole for the strap reel.
Push down snd inwards.
