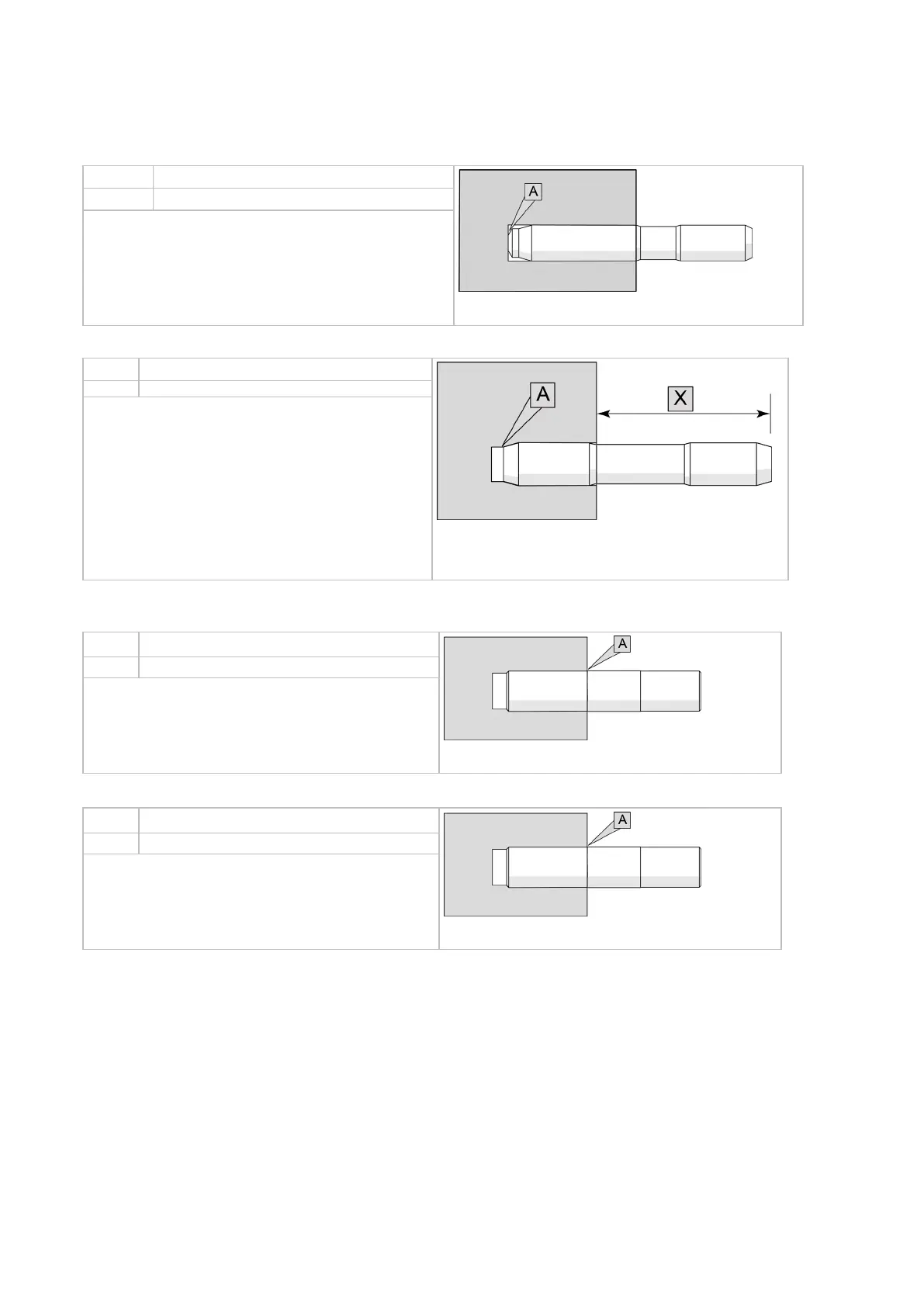

Stud installation
Rolled formed studs with nose
A - Nose on stud bottomed in hole
Rolled formed studs without nose
A - No nose, stud bottoms on thread
X - Protrusion (Stud length minus thread length)
Fit stud into casting until thread bottoms. Confirm the stud
protrusion is equal to stud length minus thread length as per stud
description.
Cut thread studs
Size Torque
A - Stop when thread disappears
Screw the stud into the casting until the thread disappears.
Do not thread past this point.
Cut thread studs
A - Longest thread length fitted
for studs with a different thread length at each end, the end with
the longest thread should be inserted into the tapped hole unless
otherwise noted on the assembly drawing.
