Hamilton Jet HTX30 - External Control Interface Module

HTX30 Product Manual
Component Installation
4-11
External control interface module
The external control interface module can be mounted in any convenient location but note the following:
 Must be connected to the SCP connector at the last station control panel in the chain.
 The length of the Devicenet MicroC connector cable is 2 meters.

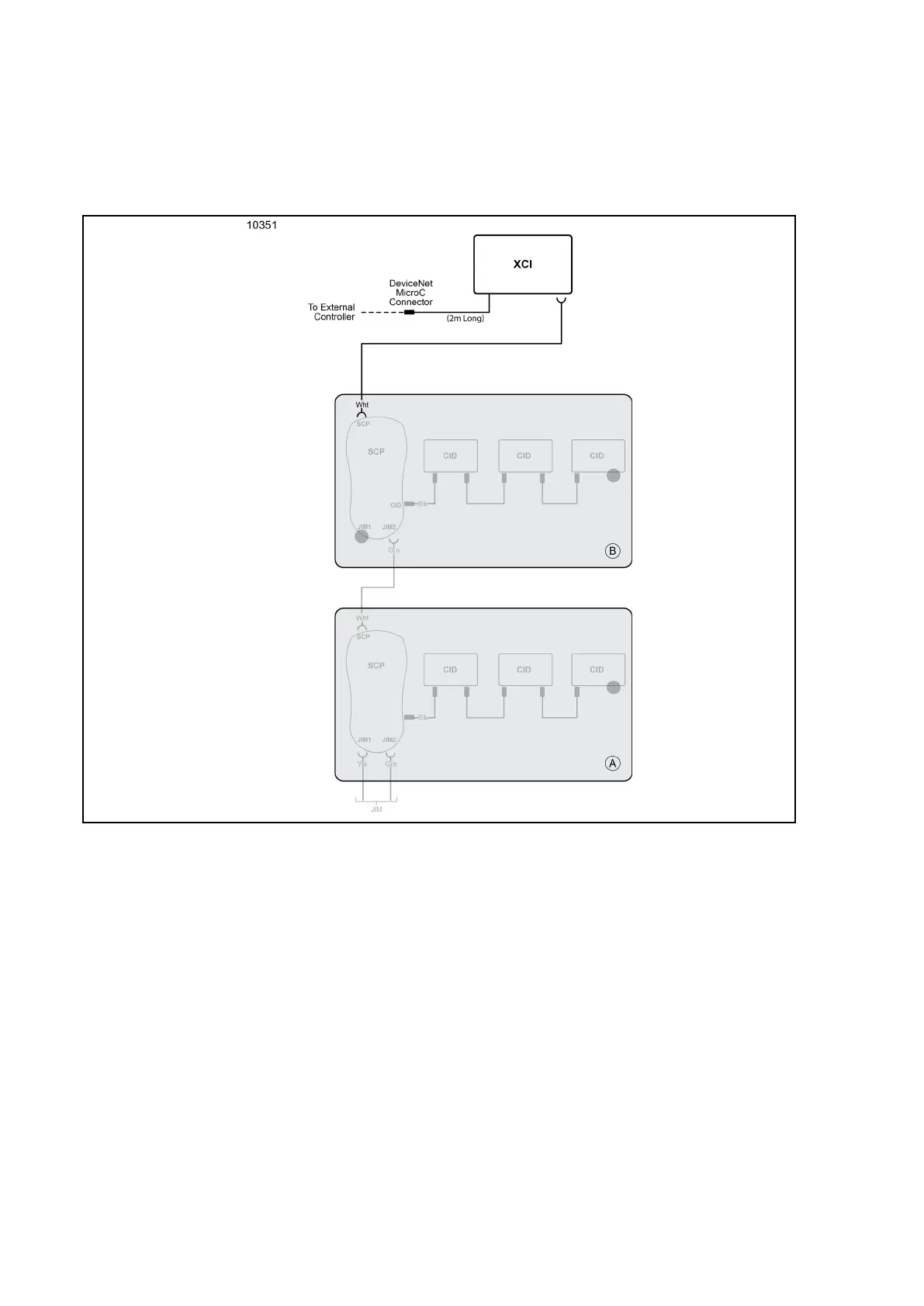

Figure 13: External control interface module
A
Control Station 1
Blk
Black connector
B
Control Station 2
Grn
Green connector
SCP
Station control panel
Wht
White connector
CID
Control input device
Yel
Yellow connector
XCI
External control interface module
The following layout applies if an optional JETanchor control module is installed as well as an external control
interface module.
