Hamilton Jet HTX30 - External CAN Bus Terminators

HTX30 Product Manual
Component Installation
4-13
External CAN bus terminators
External CAN bus terminator links are supplied with each station control panel. Fit these to the following
connectors:
 The unused JIM1 connector (In multi-station installations only).
 The SCP connector on the last station control panel in the chain. This terminator is not required if an
external control interface module or a JETanchor control module is connected to the SCP.
 The last control input device at each station.
Failure to connect the terminators will result in communication errors between modules.

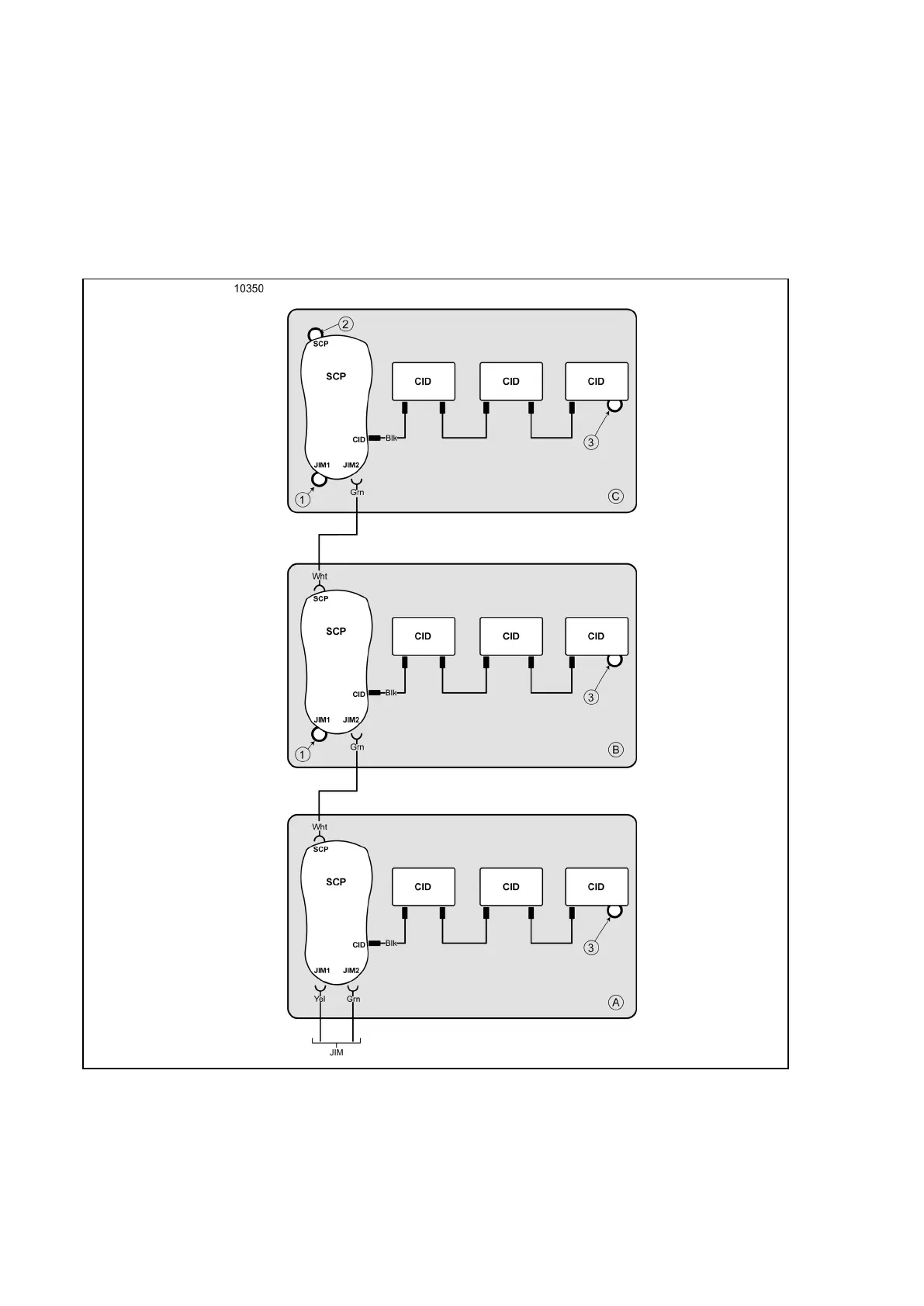

Figure 15: External CAN bus terminators
A
Control Station 1
SCP
Station control panel
B
Control Station 2
CID
Control input device
C
Control Station 3
Blk
Black connector
1
Terminator at JIM1 connector
Grn
Green connector
2
Terminator at SCP connector at last station control panel
Wht
White connector
3
Terminator at last control input device per station
Yel
Yellow connector
