Hamilton Jet HTX30 - Station Control Panel; Dual Lever Modules; Helm Wheel Module

HTX30 Product Manual
System Overview
2-3

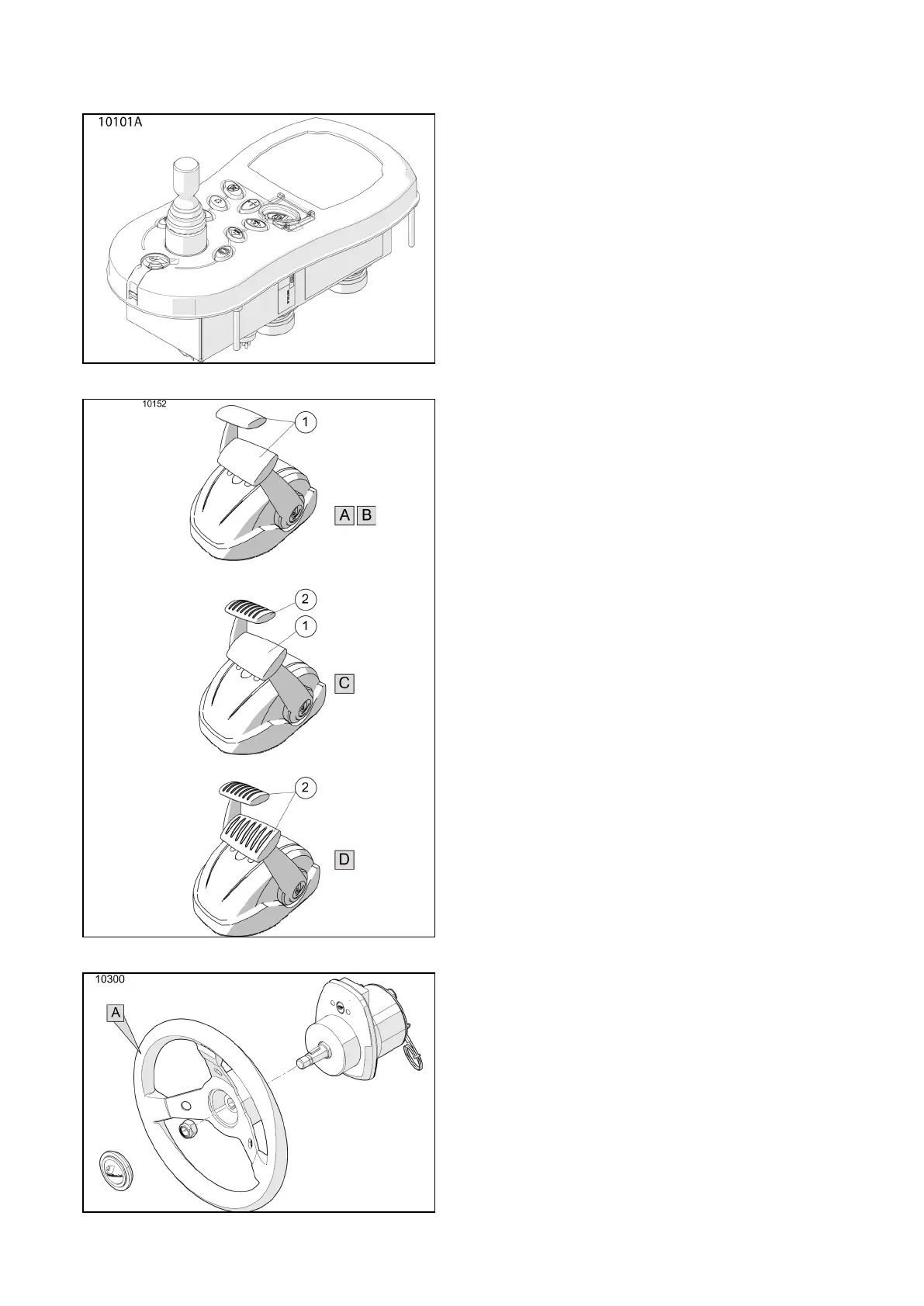

Station control panel
Part number: 119002
The station control panel provides:
 Visual and audible feedback of the jet and system
status.
 Takes the signals from the control input devices, and
outputs them to the jet and engine interface modules
to control the vessel.
 Provides backup to control the vessel in case of normal
control failure.
Dual lever modules

Vessels are fitted with either one or two dual lever
modules at each station. These control the thrust and
or reverse duct position.
 Levers connect to the station control panel in series
with other control input devices.
A
B
C
D
1
2
119005 Dual lever, combined reverse/throttle
119007 Dual lever, throttle
119008 Dual lever, reverse/throttle
119006 Dual lever, reverse
Smooth handles on throttle levers
Grooved handles on reverse levers
Helm wheel module
Part number: 119010
 Controls the steering of the vessel.
 Connects in series with other control input devices to
the station control panel.
 Can be fitted with a variety of wheel types [A]. Refer to
drawing: CTHLM04000 - Helm wheel options.
