Component Installation
HTX30 Product Manual
4-12

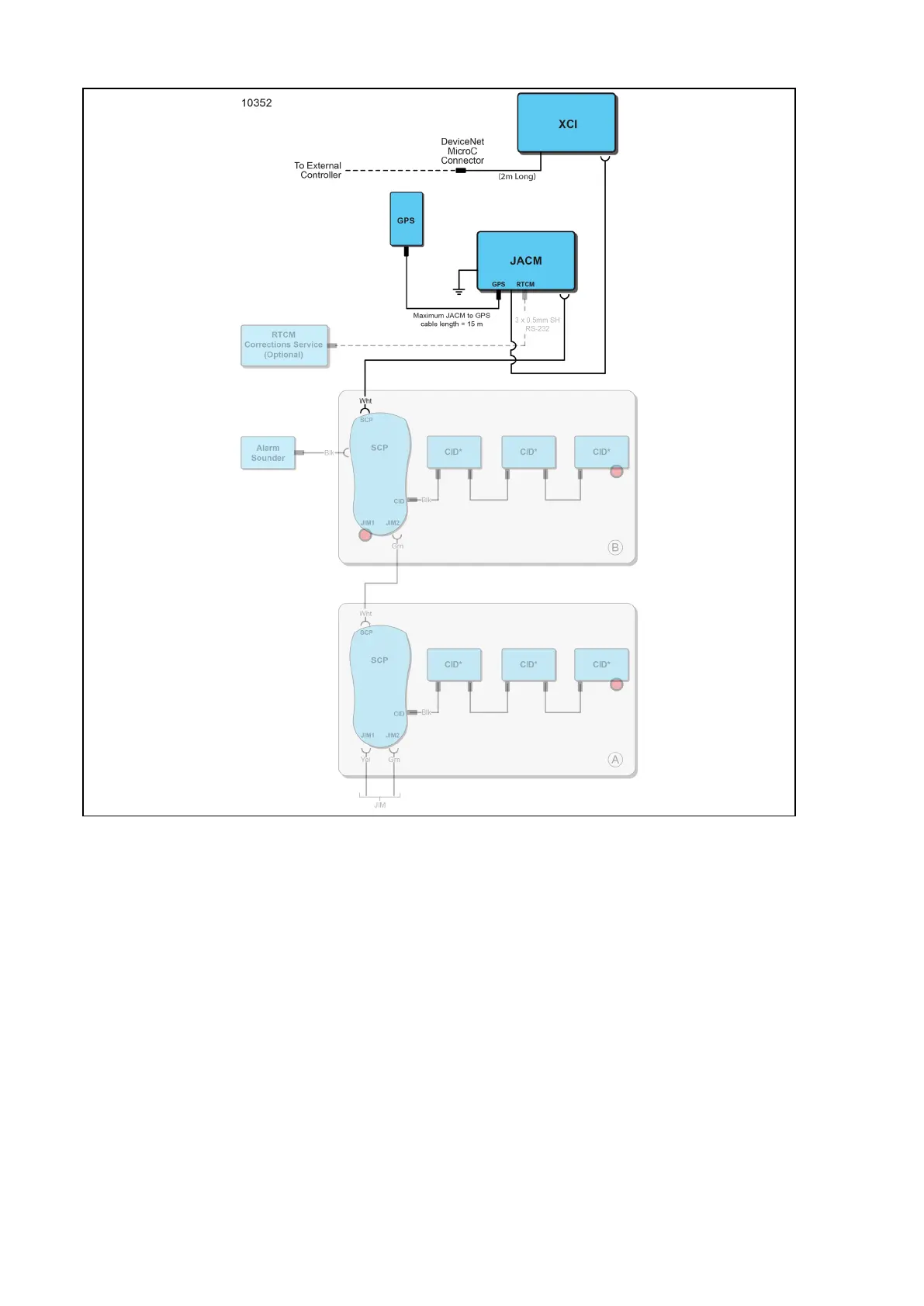

Figure 14: JETanchor control module and external control interface
A
Control Station 1
Blk
Black connector
B
Control Station 2
Grn
Green connector
SCP
Station control panel
Wht
White connector
CID
Control input device. * For vessels with JETanchor, at
least one CID on each vessel must be a JETanchor
Mouseboat
Yel
Yellow connector
JACM
JETanchor control module (optional)
XCI
External Interface Controller
When installing a JETanchor control module, ensure that the internal CAN bus terminator is in the correct
position (► page 4-14).
