HTX30 Product Manual
Appendix
8-23

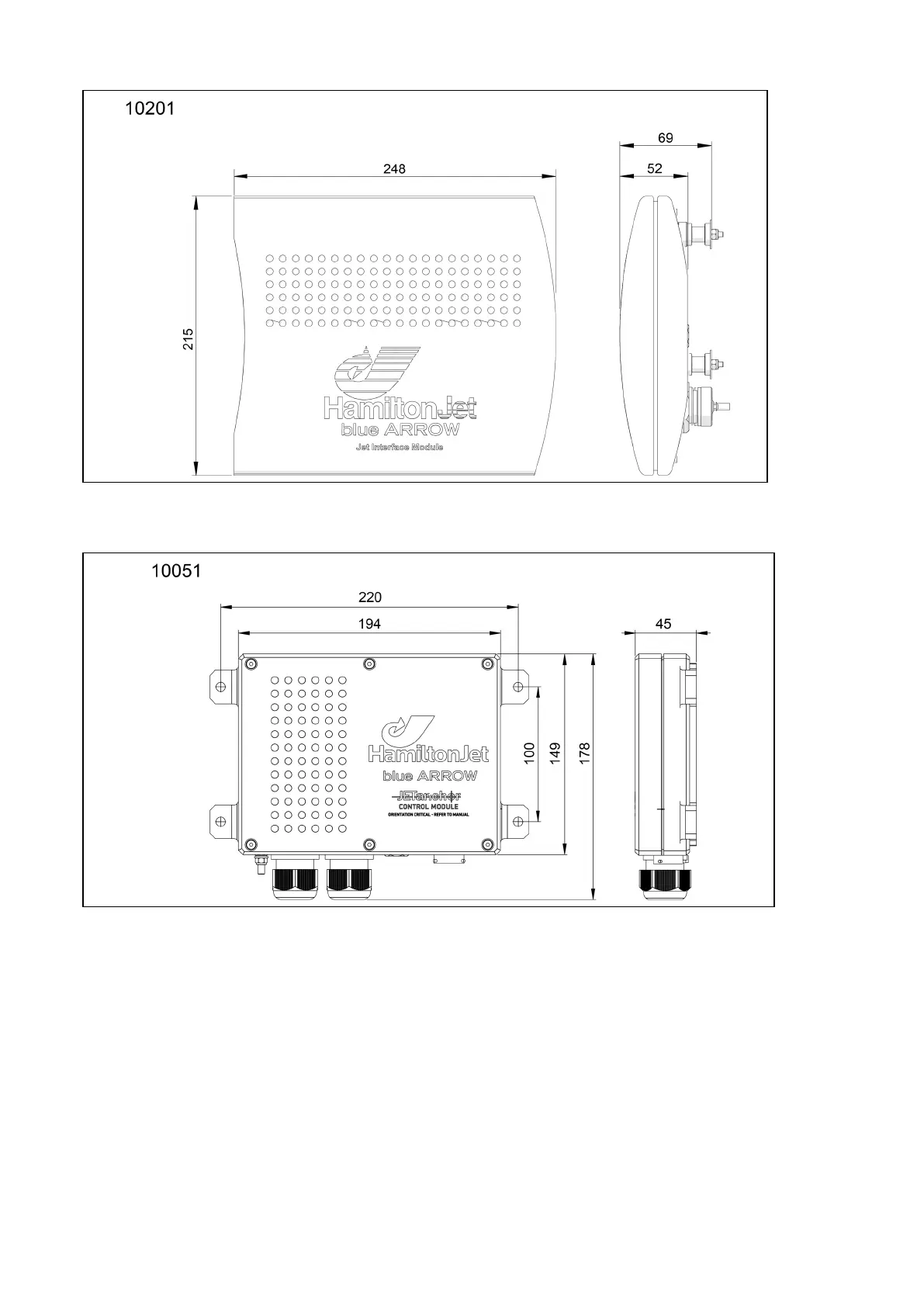

Figure 26: Jet interface module dimensions
Jet interface module weight: 4.0 kg.
Figure 27: Engine interface module, JETanchor control module and external control interface module dimensions
Engine interface modules, JETanchor control modules and external control interface modules share the same
external dimensions.
Engine interface module weight: 1.7 kg.
JETanchor control module weight: 1.7 kg.
External control interface module weight: 1.8 kg.
