Hamilton Jet HTX30 - Page 32

Component Installation
HTX30 Product Manual
4-6

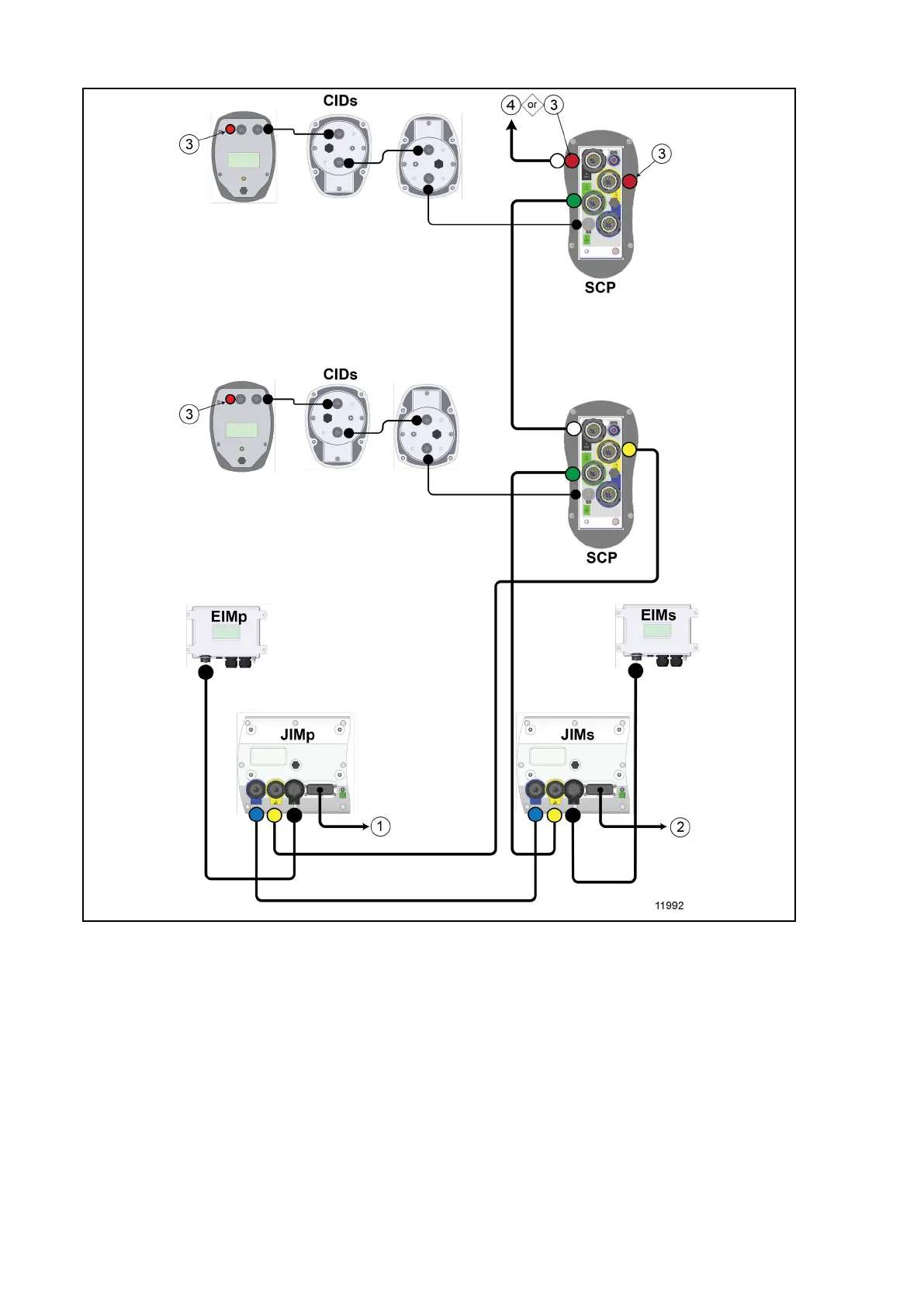

Figure 7: Twin jet interconnecting cabling
1
To port jet power supplies and jet sensors
CIDs
Control input devices
2
To starboard jet power supplies and jet sensors
SCP
Station control panel
3
CAN Bus terminators fitted to last SCP or module in the chain
EIMp
Engine interface module (port)
4
To third station control panel, external control interface or JETanchor module
if fitted. If not fitted, connect the CAN Bus terminator (3).
JIMp
Jet interface module (port)
EIMs
Engine interface module (starboard)
JIMs
Jet interface module (starboard)
