Commissioning
HTX30 Product Manual
5-8

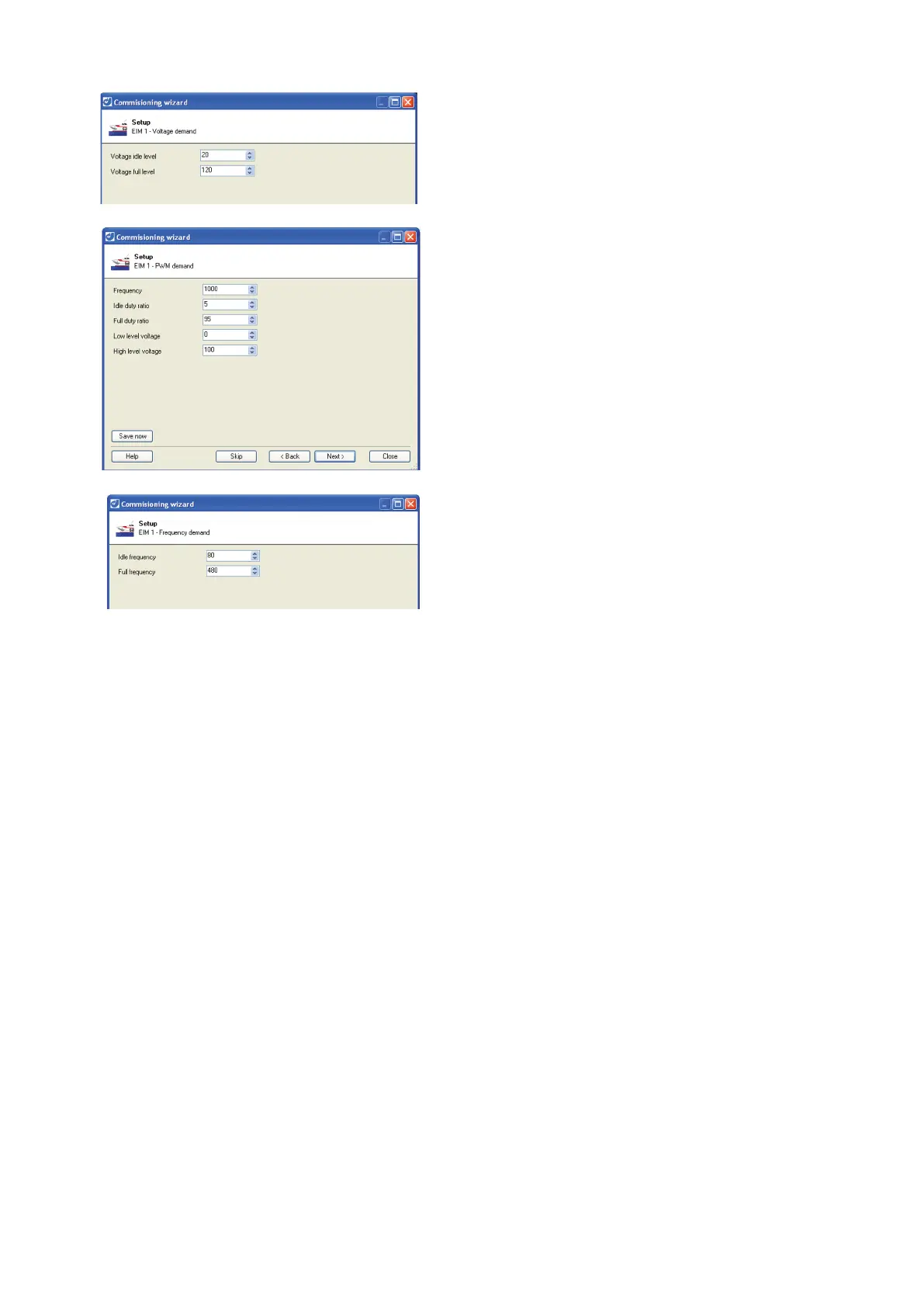

Setup the demand values for the demand type.
Voltage - For voltage demand:
 Voltage idle level.
 Voltage full level.
PWM - For PWM Voltage or PWM open drain demand:
 Frequency.
 Idle duty ratio.
 Full duty ratio.
 Low level voltage.
 High level voltage.
FM - For FM demand:
 Idle frequency.
 Full frequency.
Click Next to save the settings and continue.
