Connect the sensor to a cable
Full-bridge sensors (6-wire/4-wire)
Board type: B201-10
Connector type: 10×RJ45 (each with 8 pins)

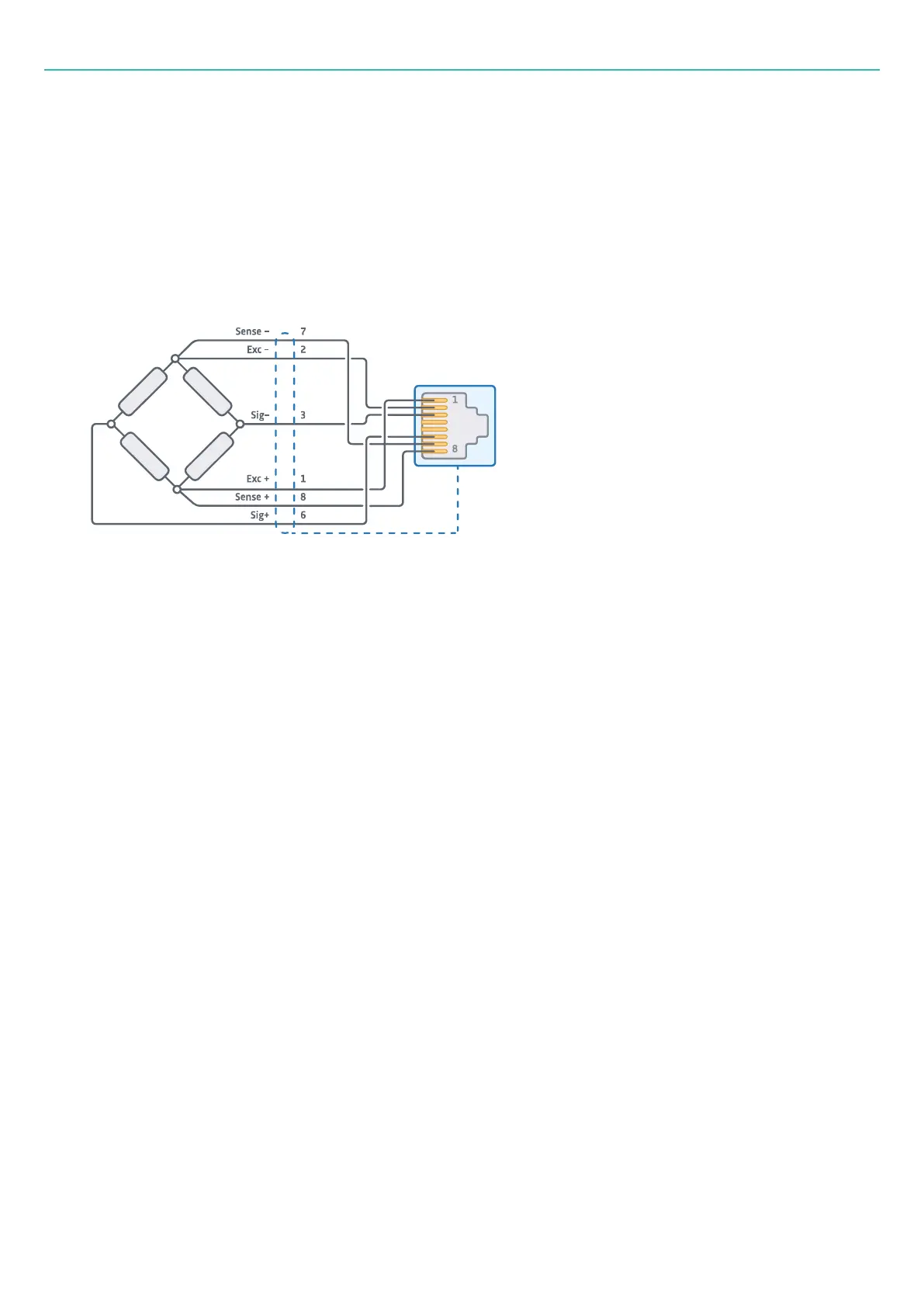

Full bridges (resistive and piezoresistive) can be connected in a 6-wire or 4-wire configuration. In a 4-wire
configuration, the two 'sense' lines are omitted. Both pin configurations are shown below.
6-wire configuration:
l
Pin 1: Excitation +
l
Pin 2: Excitation –
l
Pin 3: Signal –
l
Pin 4: Not connected (TEDS data)
l
Pin 5: Not connected (TEDS ground)
l
Pin 6: Signal +
l
Pin 7: Sense –
l
Pin 8: Sense +
4-wire configuration:
l
Pin 1: Excitation +
l
Pin 2: Excitation –
l
Pin 3: Signal –
l
Pin 4: Not connected (TEDS data)
l
Pin 5: Not connected (TEDS ground)
l
Pin 6: Signal +
l
Pin 7: Not connected
l
Pin 8: Not connected
