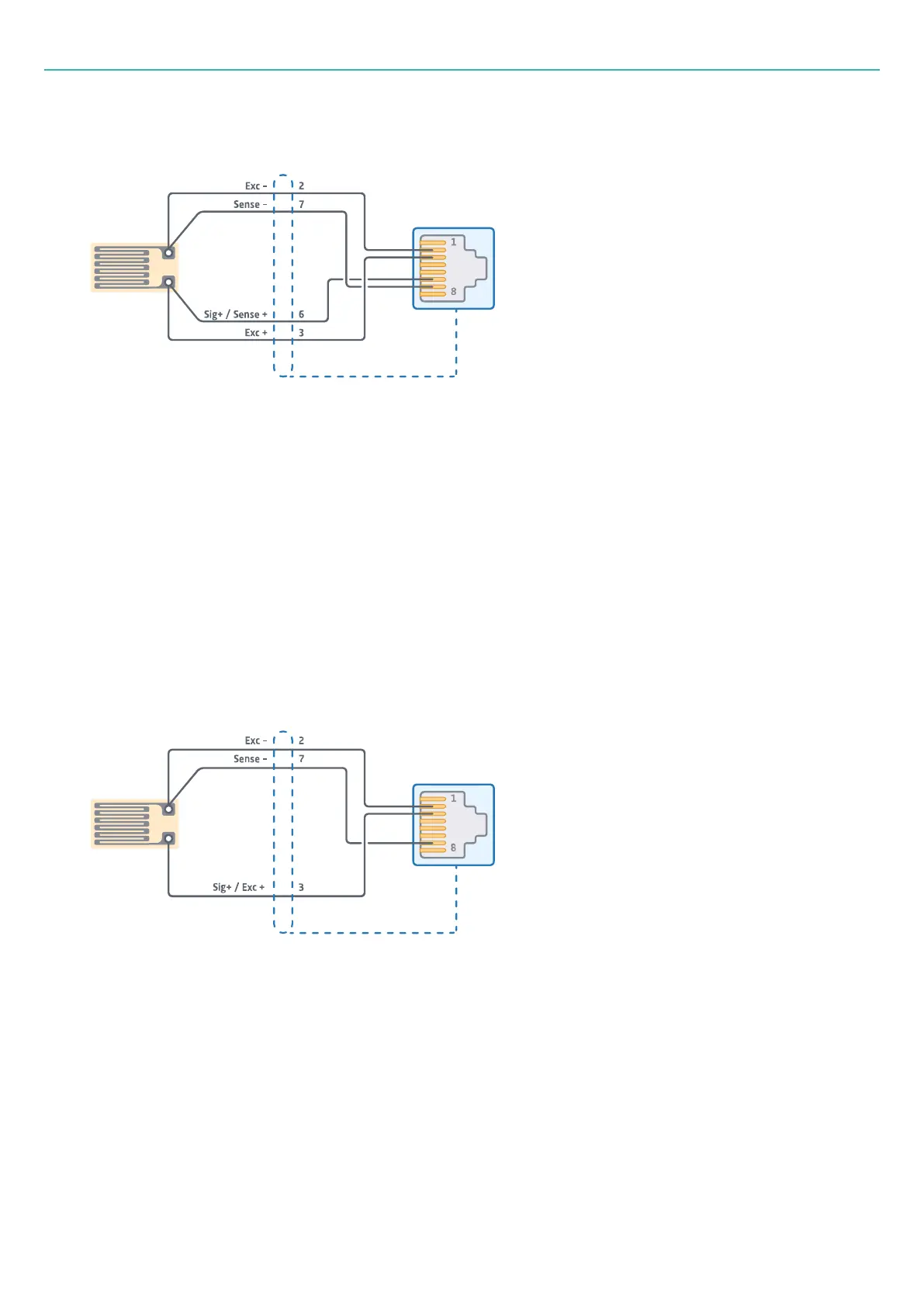

Connect the sensor to a cable
4-wire configuration:
l
Pin 1: Not connected
l
Pin 2: Excitation –
l
Pin 3: Excitation +
l
Pin 4: Not connected (TEDS data)
l
Pin 5: Not connected (TEDS ground)
l
Pin 6: Signal +/Sense +
l
Pin 7: Sense –
l
Pin 8: Not connected
3-wire configuration:
l
Pin 1: Not connected
l
Pin 2: Excitation –
l
Pin 3: Excitation +/Signal +
l
Pin 4: Not connected (TEDS data)
l
Pin 5: Not connected (TEDS ground)
