MP60, MP60DP
CONNECTION
24
CAN Low CAN High

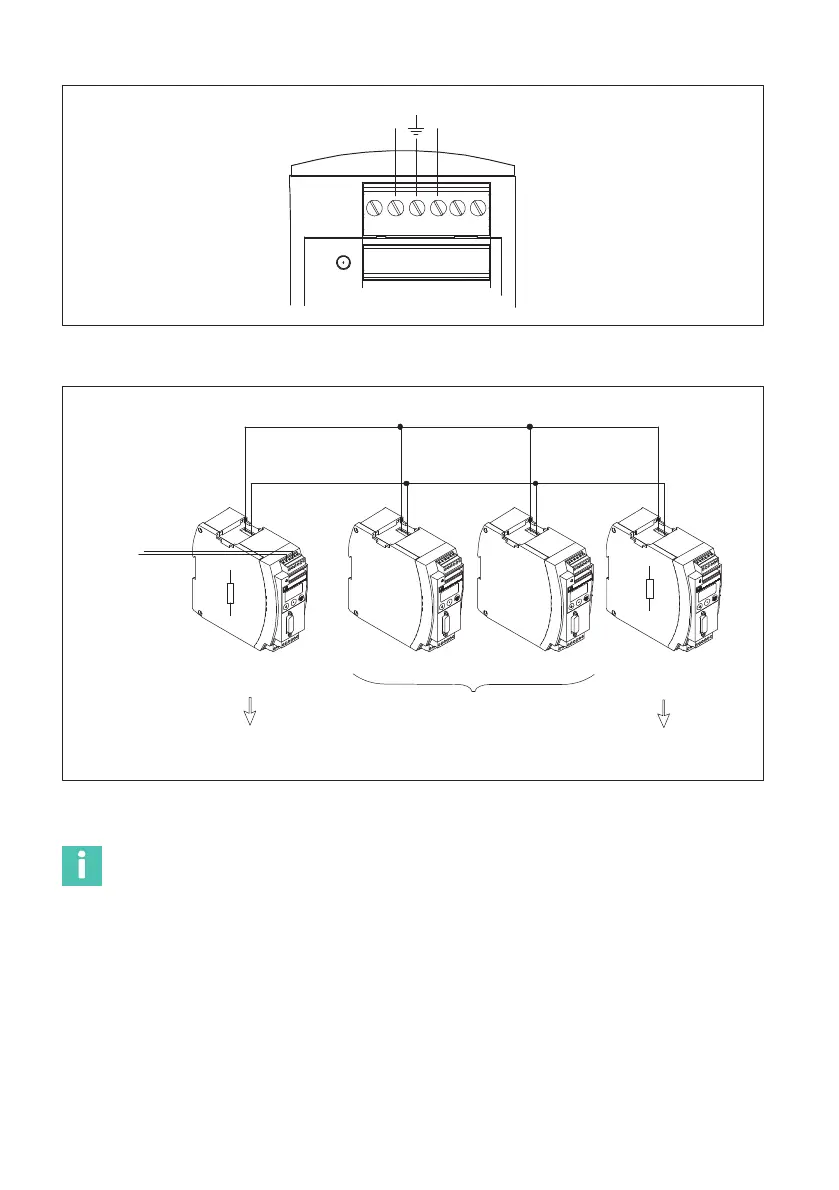

Fig. 6.6 Connecting the CAN interface
CAN High
CAN Low
CAN connection
as per Fig. 6.6
First device in
the bus line
Last device in the
bus line
Connect the termination resistor in
the PME (see page 15)
Connect the termination
resistor in the PME
Do not connect the
termination resistor
Fig. 6.7 CAN bus operation with multiple modules (max. 32 under the standard)
Information
If the first or last device in the bus line is not a PME module, a 120 W resistor must be
connected to each of these external devices.
