MP60, MP60DP
EXPLANATION OF THE MAIN PARAMETERS
46
MeaningParameterGroup
ADDI
TIONAL
FUNCTION
>0<Rf
Reference zero

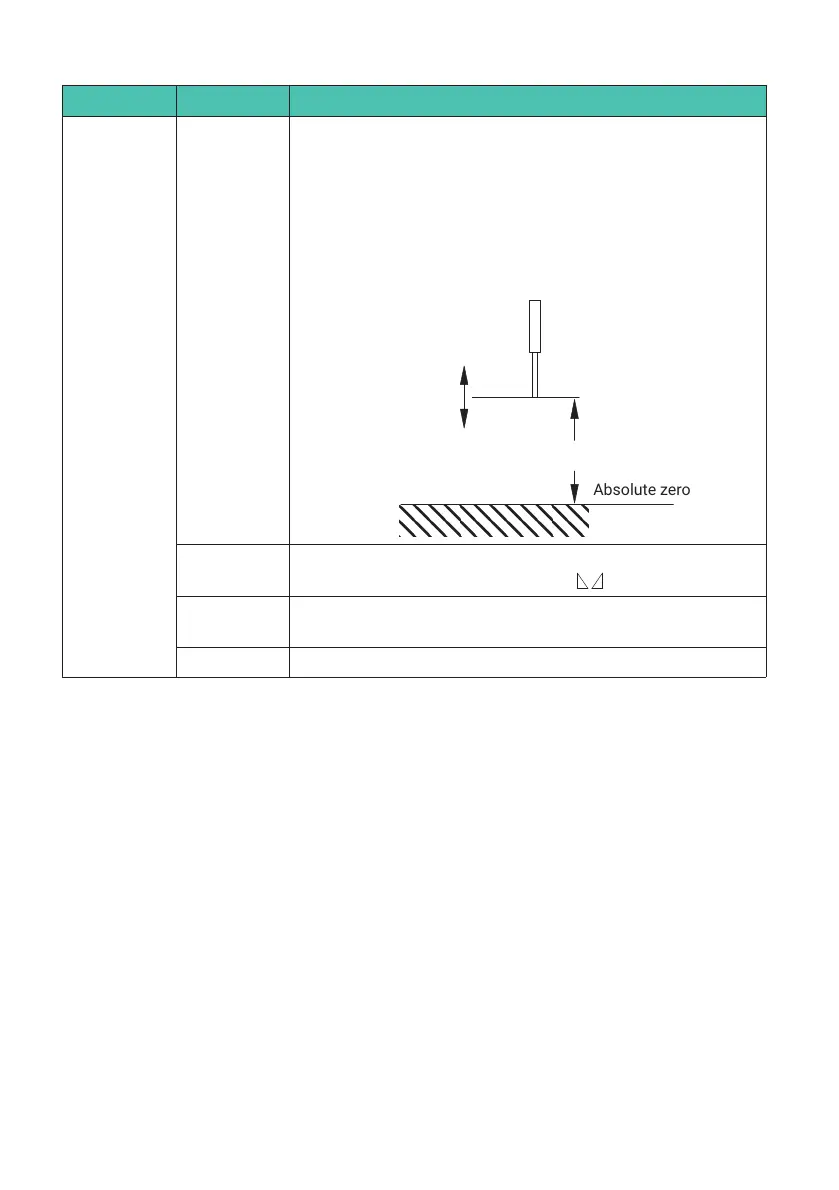

A displacement transducer 〈"20 mm nominal (rated) dis
placement) is mounted at a height of 1 m, measured from
the machine foundation. When zeroing, the analog output
is adjusted to 0 V. The display value is adjusted to >0<Ref
(+1000 mm). The possible display range is 980 mm to
1020 mm.
Absolute zero point
Relative zero point
of the transducer
Displacement transducer
±20 mm
Zero drift = -1000 mm
Foundation
StillDsp Standstill indication If standstill occurs with ON selected,
the following symbol is displayed
LoadnmZer OFF: Zero value memory is not overwritten when
parameter is changed
HW Synchr Master or slave
