77
INSTALLING HEATING CIRCUIT
SENSORS
1. Fasten the heating circuit sensor (1) to the pipe flush with the
pipe's surface using the supplied hose clip (2).
✎ See section “4.2 Connections” in this chapter.
I
NSTALLING SENSORS FOR
ACCUMULATORS AND HOT
WATER TANKS
INSTALLING THE INDOOR
THERMOSTAT UNIT

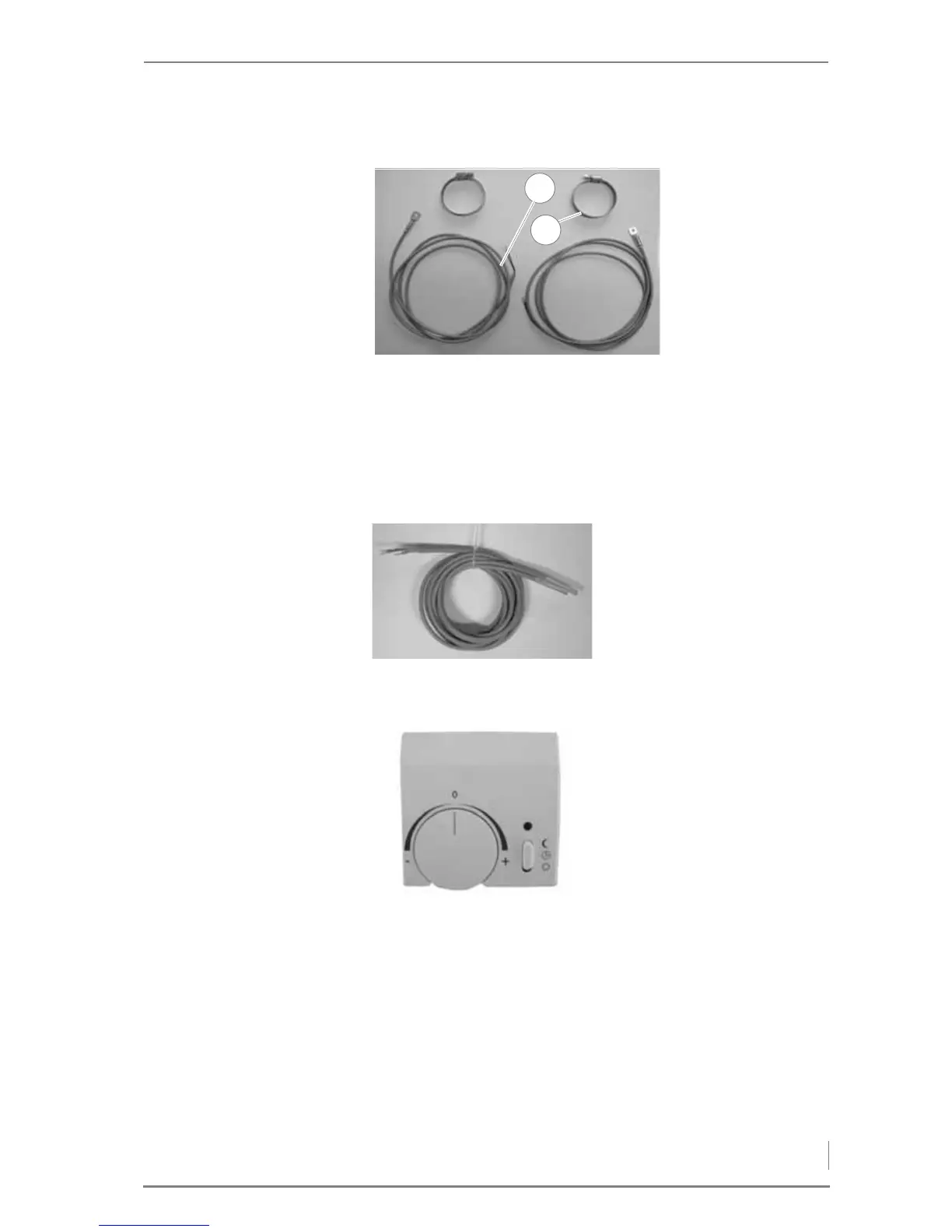

Figure 4/48 - Heating circuit sensors
1. Make sure that the sensors for
the accumulator and hot
water tanks are not bent.
2. Carefully insert the accumu-
lator and hot water tank sen-
sors into the immersion
sleeves.
Figure 4/49 - Sensors for accumulator and hot water tanks
1. Mount the indoor thermostat
unit on the intended position
on the wall.
✎ See section “4.2 Connections”
in this chapter.
Figure 4/50 - Indoor thermostat unit
