APPENDIX3
────────────────────────────────────────────────────

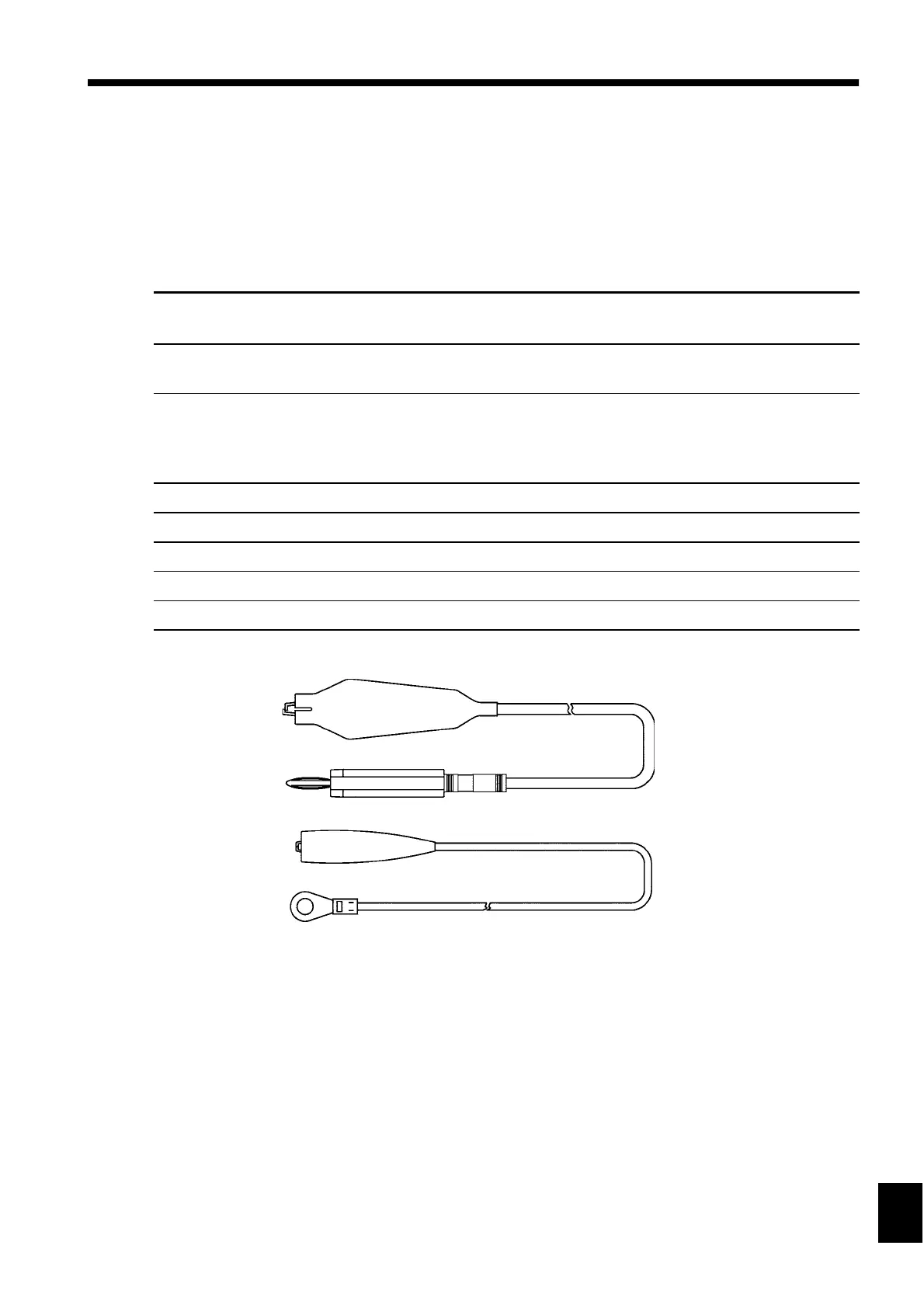

Appendix 3 9615 H.V. TEST LEAD (Standard Accessory)
────────────────────────────────────────────────────
1
2
3
4
5
6
7
8
9
10
11
12
13
14
APP
Rated voltage
5 kVAC or 5 kVDC
（
High voltage side
）
600 VAC or 600 VDC
（
Return side
）
Rated current
150 mAAC or 150 mADC
（
High voltage side
）
10 AAC or 10 ADC
（
Return side
）
Dielectric strength
6.25 kVAC Sensitivity current 5 mA 1 minute
（
High voltage
side
）
1.35 kVAC Sensitivity current 5 mA 1 minute
（
Return side
）
Test point (between the core wire and the cable exterior)
Ambient operating conditions
0to40℃ (32 to 104
ﾟ
F), 80%RH max (no condensation)
Ambient storage conditions
-10 to 50℃ (14 to 122
ﾟ
F), 90%RH max. (no condensation)
Operating Environment
Indoors < 2000 mASL (6562 feet)
Dimensions
Approx. 1500 mm (59.06")
Mass
Approx. 100 g (3.5 oz.)
Appendix 3 9615 H.V. TEST LEAD (Standard Accessory)
Testing of the grounded lead should be avoided, unless absolutely necessary. If a
part such as the lead must be tested, be sure to connect the low-side crocodile clip
(black) to the grounded end of the lead. Connecting the high-side crocodile clip
(red) to the grounded end of the lead may result in electric shock or damage to the
equipment.
