4.11 Example of Optional Functions Use
────────────────────────────────────────────────────

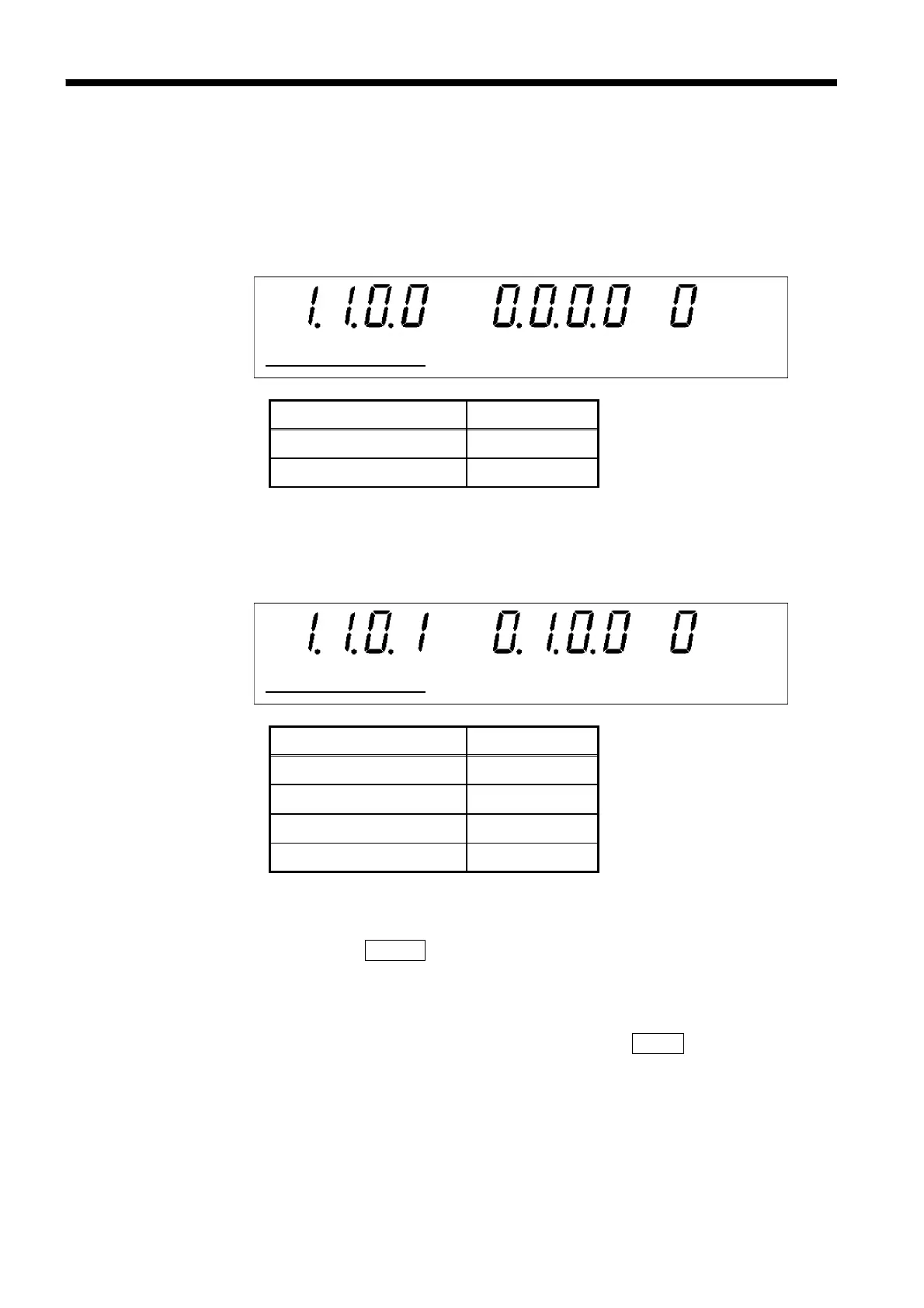

Optional function settings
Optional function Selection
PASS Hold Function 1: Held
FAIL Hold Function 1: Held
Optional function settings
Optional function Selection
PASS Hold Function 1: Held
FAIL Hold Function 1: Held
Momentary Out 1: Set
FAIL Mode 1: Set
4.11 Example of Optional Functions Use
The following describes how 3158 optional functions are used in testing. Varying
combinations of optional functions are available for testing.
(1) Testing to check test results, using the 3158
■
Advantages of these settings
PASS or FAIL state is held, allowing inspection of test results.
(2) Safe testing by remote control
■
Advantages of these settings
･
PASS or FAIL state is held, allowing inspection of test results.
･
Hold down the
START
key during the test, as the Momentary-OUT function is
set. The 9614 REMOTE CONTROL BOX (DUAL) must be operated with both
hands during the test. This prevents high-voltage devices such as the probe and
tested device from being touched by hand.
･
The FAIL Hold function must be cancelled using the
STOP
key on the unit, as
the FAIL mode is set. The use of the FAIL mode enables the FAIL state to be set.
