4.8 Inter-lock Function
────────────────────────────────────────────────────
Setting procedure
0: Not set (Initial setting)
1: Set
NOTE
4.8 Inter-lock Function
Settings can be made to specify whether to use the Inter-lock function with the
external I/O terminal.
If "0: Not set" is selected, the Inter-lock function is cancelled regardless of the state
of Pin 10 on the external I/O terminal.
If "1: Set" is selected, the Inter-lock function may be disabled, depending on the
state of Pin 10 of the external I/O terminal. For the Inter-lock function, see 6.1.4,
"Inter-lock function."

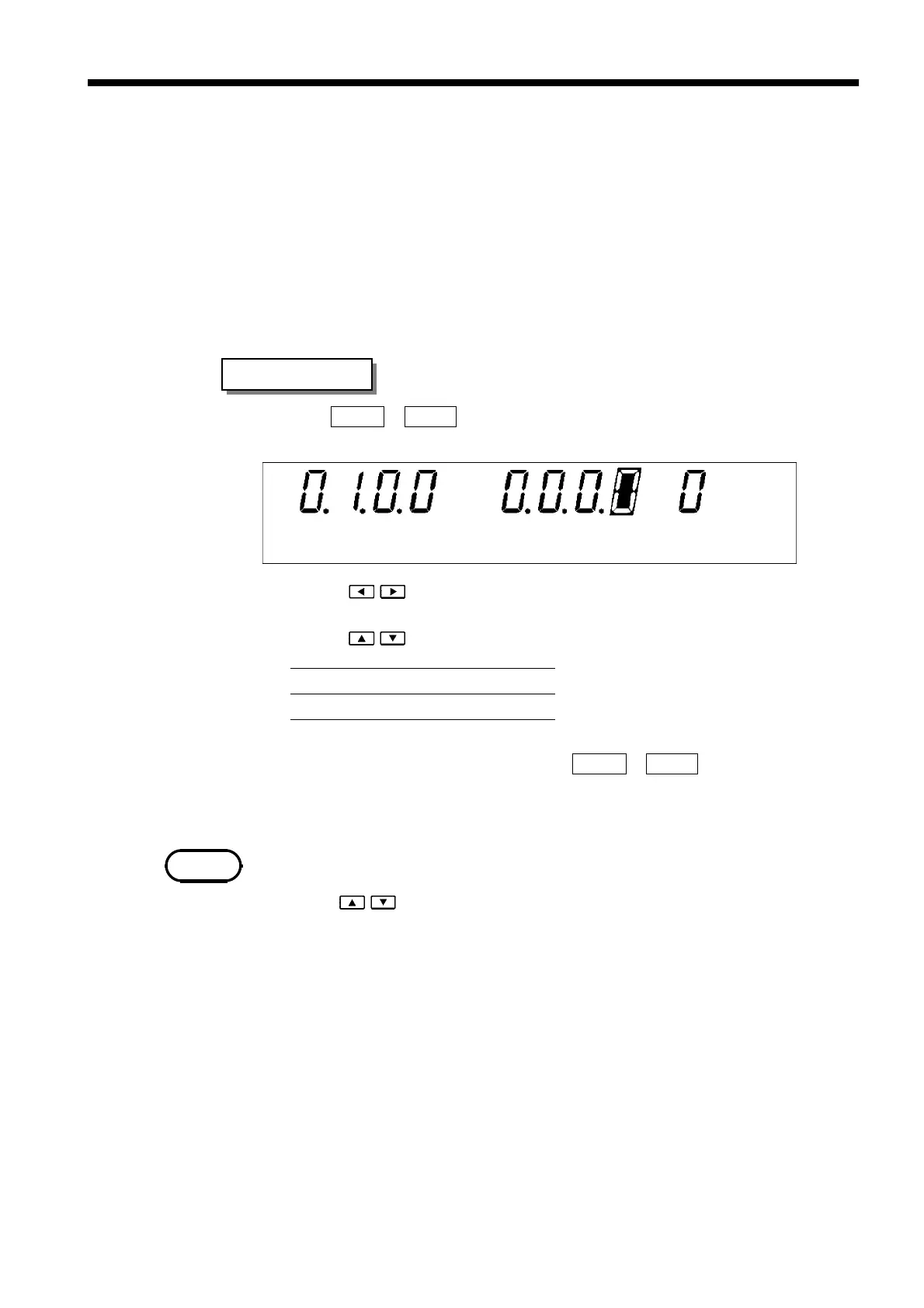

(1) Press
SHIFT
+
STOP
keys while in READY state to display the Optional
function setting screen.
(2) Use the
/ keys to move the flashing cursor to the position shown in the
figure.
(3) Use the
/ keys to set a value at the flashing cursor location.
(4) To complete the optional settings, press
SHIFT
+
STOP
keys. The unit
reverts to the READY state.
The Inter-lock function can be set only when INT.LOCK
____________
(Pin 10) of the external
I/O terminal is set at Lo. If the terminal is set at Hi, "0: Not set" remains effective
even if the
/ keys are pressed.
