Hioki 3158 - Example of Loading

68
────────────────────────────────────────────────────
5.2 Loading Preset Values
────────────────────────────────────────────────────
5.2.2 Example of Loading
Comparative voltage value 3.50 kV
Upper level value 60 mA
Lower level value OFF
Test time 20.0 s

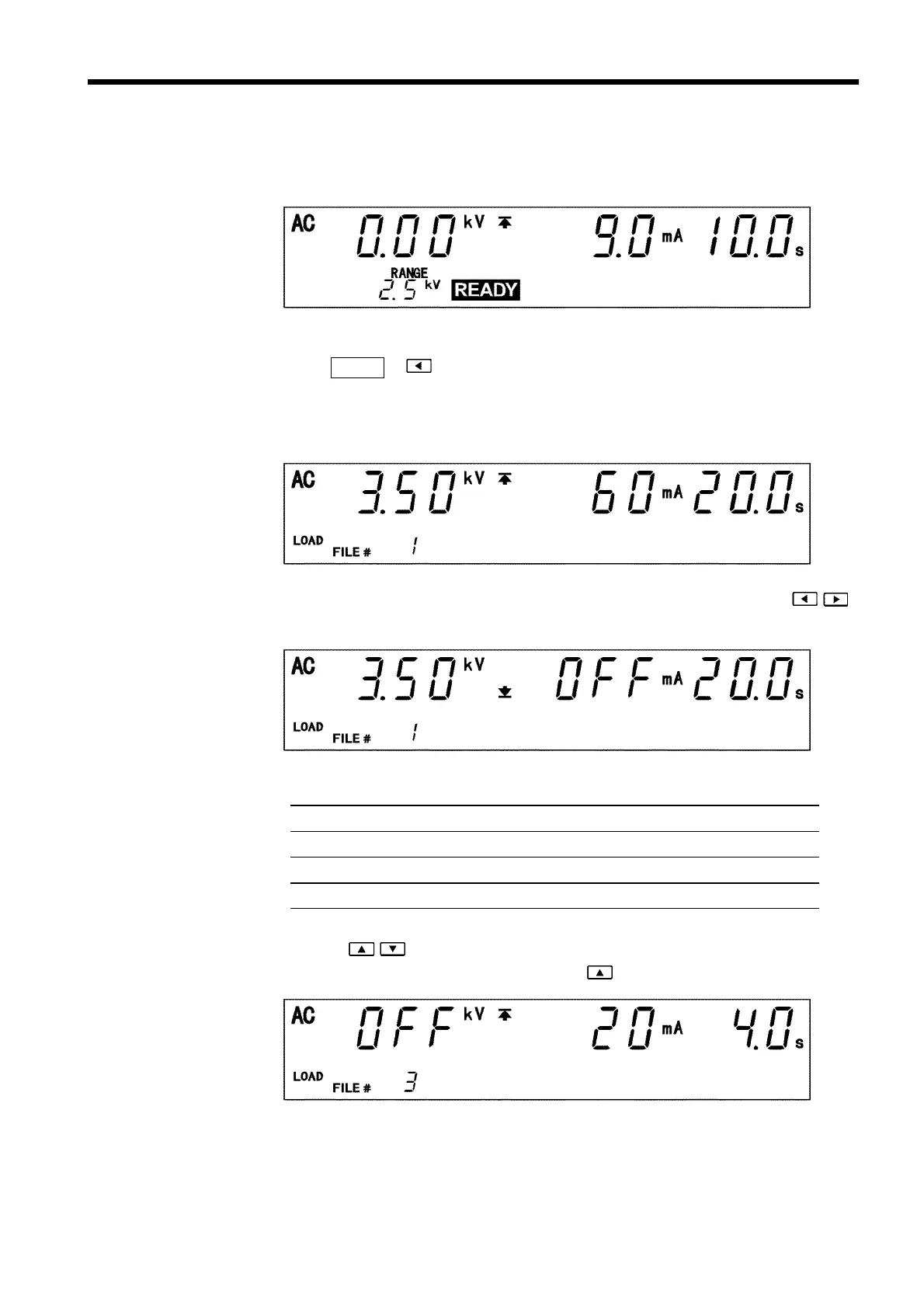

The following example shows how to load File No.3. We assume that the 3158 is
in the READY state.
(1) Press
SHIFT
+ keys to bring up the load screen.
In the load screen, the value set in the READY state is replaced by the saved
data being displayed. The first saved data displayed is the last data item from
the previous load screen. This example shows "File No.1."
In this status, the preset lower level valve can be checked by using the
/
keys.
In this example, File No. 1 contains the following settings.
(2) Use the
/ keys to select File No.3.
This example shows File No. 1. Press the
key twice to display File No.3.
