Hioki 3158 - Example of Saving

64
────────────────────────────────────────────────────
5.1 Saving Preset Values
────────────────────────────────────────────────────
5.1.2 Example of Saving
Comparative voltage value 2.00 kV
Upper level value 20 mA
Lower level value OFF
Test time 60.0 s
Comparative voltage value 4.50 kV
Upper level value 40 mA
Lower level value 3mA
Test time 10.0 s

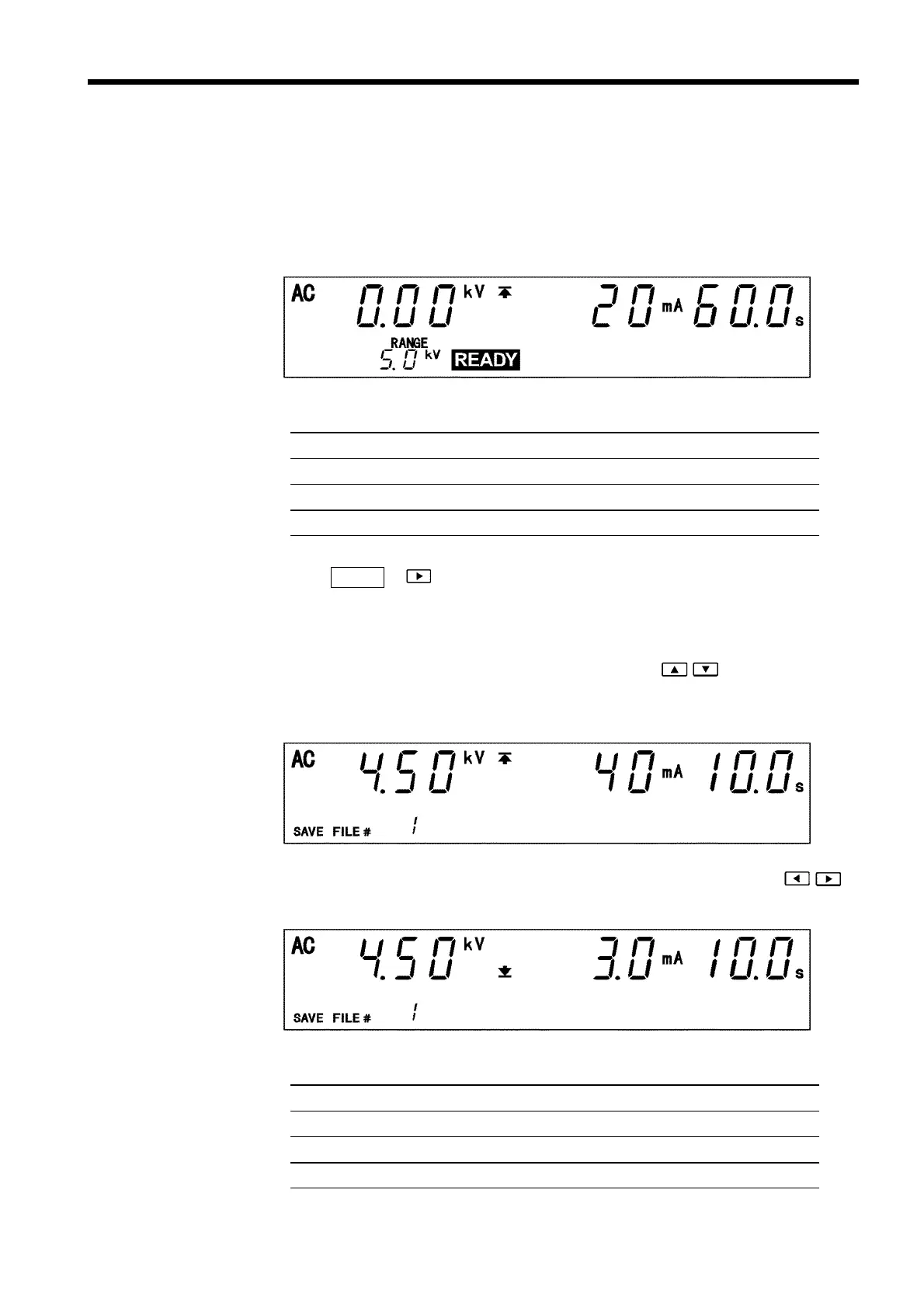

The following example shows how to save in File No.3. We assume that the 3158
is in the READY state.
(1) In the READY state, set the preset value to save. For more information on
making these settings, see Chapter 3, "Testing Method."
In this example, settings are made as follows:
(2) Press
SHIFT
+ keys to bring up the save screen.
In the save screen, the value set in the READY state is replaced by the saved
data being displayed. The first saved data displayed is the last data item from
the previous save screen. This example shows "File No.1."
The new data overwrites the previous data. Use the
/ keys to select the
data to be overwritten. The new data in this example is to be saved in File
No.3.
In this status, the preset upper test valve can be checked by using the
/
keys.
In this example, File No. 1 contains the following settings.
