6.1 External I/O Terminal
────────────────────────────────────────────────────
6.1.5 Timing Chart of External I/O Terminal
40 ms min.
100 ms min.
80 msmin.
START
_______
Voltage Output
READY
_______
TEST
_____
H.V.ON
_______
PASS
______
U-FAIL
_______
L-FAIL
______

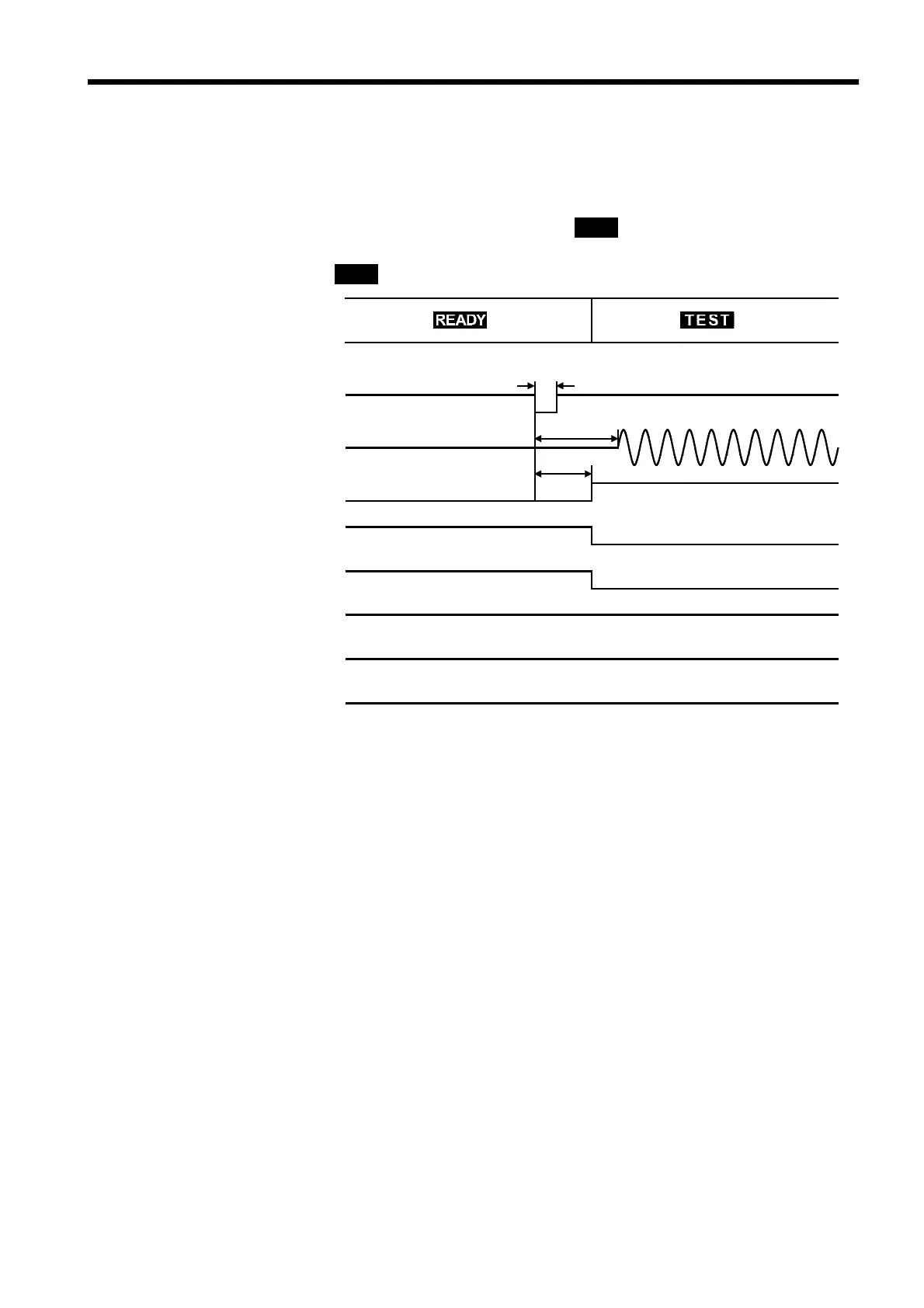

(1) Timing chart at time of start of testing
When a test begins, the READY
__________
signal becomes HI, and the TEST
______
signal
and H.V.ON
_________
signal become LO.
The TEST
_______
signal changes at the same time TEST on the fluorescent indicator
changes. If the comparative-voltage value has been set, the TEST
_______
signal becomes
LO when TEST is flickering.
When running a test immediately after modifying test settings, voltage output
response time is less than 300 ms.
