3.2 Making Testing Arrangements (in READY State)
────────────────────────────────────────────────────
(
1
)
(
2
)
(
3
)
(
4
)
(
5
)
3.2 Making Testing Arrangements (in READY State)
In the READY state, the unit is always ready to start a test. The unit can be shifted
to the SETTING state only when it is in the READY state.
The
READY
lamp remains lit to indicate READY state. Saving and loading for
setting data and the setting of optional functions are made following the READY
state.

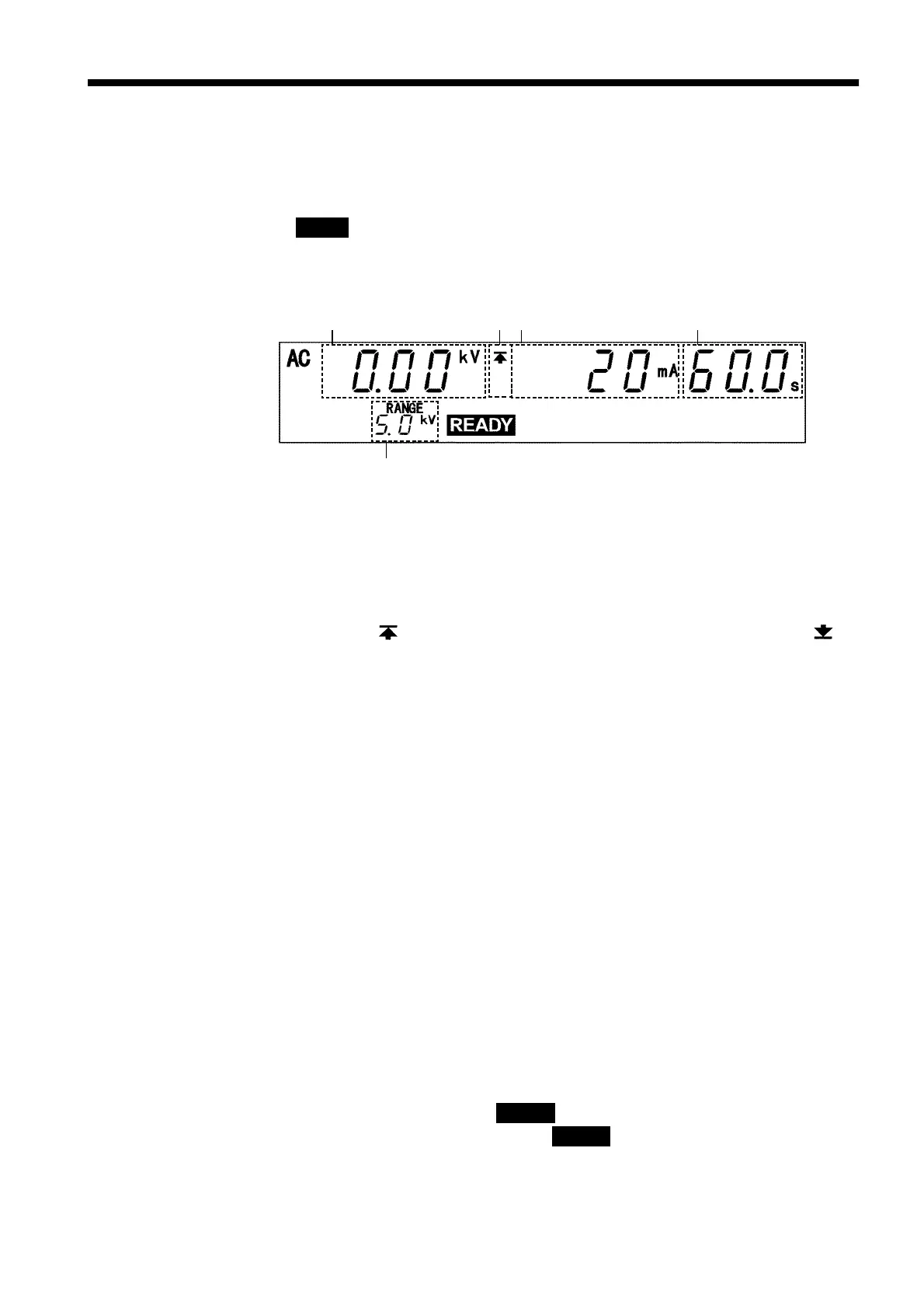

(1) Measured voltage value
Indicates the voltage value being output. In the READY state, the value
indicates at 0 kV.
(2) Upper level value icon and Lower level value icon
The symbol
appears when the upper level value is set, and the symbol
appears when the lower level value is set.
(3) Upper (Lower) level value
Indicates Upper (Lower) level value.
(4) Test time
Indicates the preset test time. "OFF" is indicated when no test-time setting has
been made.
(5) Output voltage range
Indicates the output-voltage range selected using the Range Selection switch
Analog voltmeter
Indicates the voltage value being output. In the READY state, the value remains at
0 kV.
Danger lamp
Indicates that a voltage is being output. This lamp remains lit as long as a voltage
of at least 0.03 kV is being applied to the output terminal. It does not light up in
the READY state.
External I/O
The READY
_________
signal is ON when READY is lit on the fluorescent indicator.
The READY
_________
signal is turned OFF when READY is not lit.
