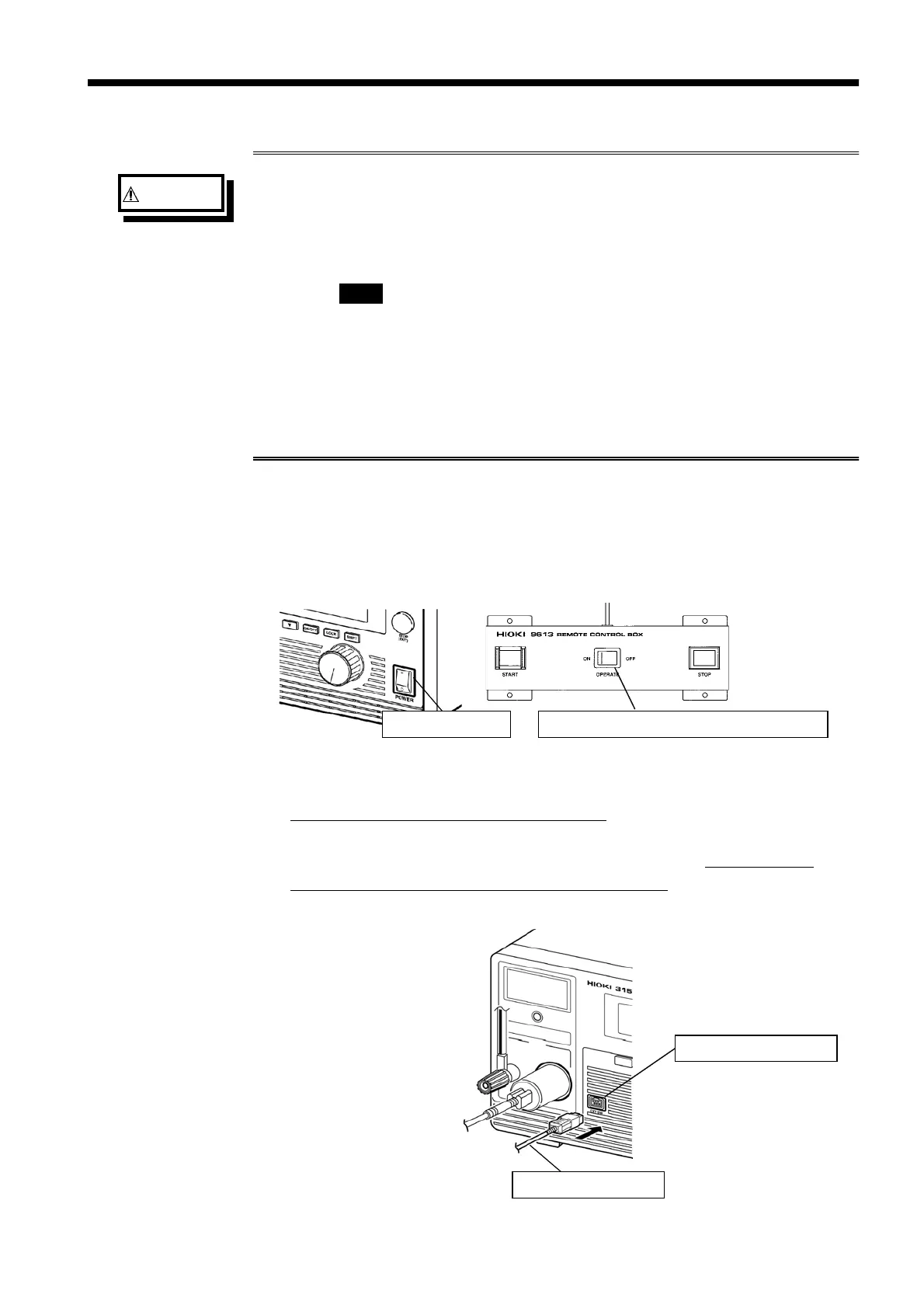

2.7 Connecting the REMOTE CONTROL BOX
────────────────────────────────────────────────────
WARNING
･
To prevent electrical shock, turn off the power unit and tested object,
make sure that there is no high voltage being applied to the output,
confirm the following 3 items, and connect the remote-control box.
(1) The analog voltmeter reads 0 kV.
(2) The DANGER lamp is OFF.
(3) The TEST lamp is OFF.
･
To prevent malfunctions, do not remove the REMOTE CONTROL BOX
following startup. Before removing it, be sure to turn OFF the power.
･
To avoid electric shock, when using the REMOTE CONTROL BOX,
provide safety measures to keep the output-voltage terminal, tested
object, and H.V. TEST LEAD out of contact with one another when
they are in the TEST state.
Main power switch OPERATE switch on the remote-control box
Switch signal-line plug
External switch terminal
2.7 Connecting the REMOTE CONTROL BOX
Connection of the remote-control box (9613/9614) enables start/stop operations to
be performed easily.
(1) Make sure the Main Power switch and OPERATE switch on the remote-control
box are OFF.
(2) Insert the switch signal-line plug into the external switch terminal.
Check the direction of the switch signal line.
(3) Turn ON the OPERATE switch of the remote-control box. The OPERATE
switch can be turned ON/OFF even following startup.
