Hioki 3158 - Page 25

13
────────────────────────────────────────────────────

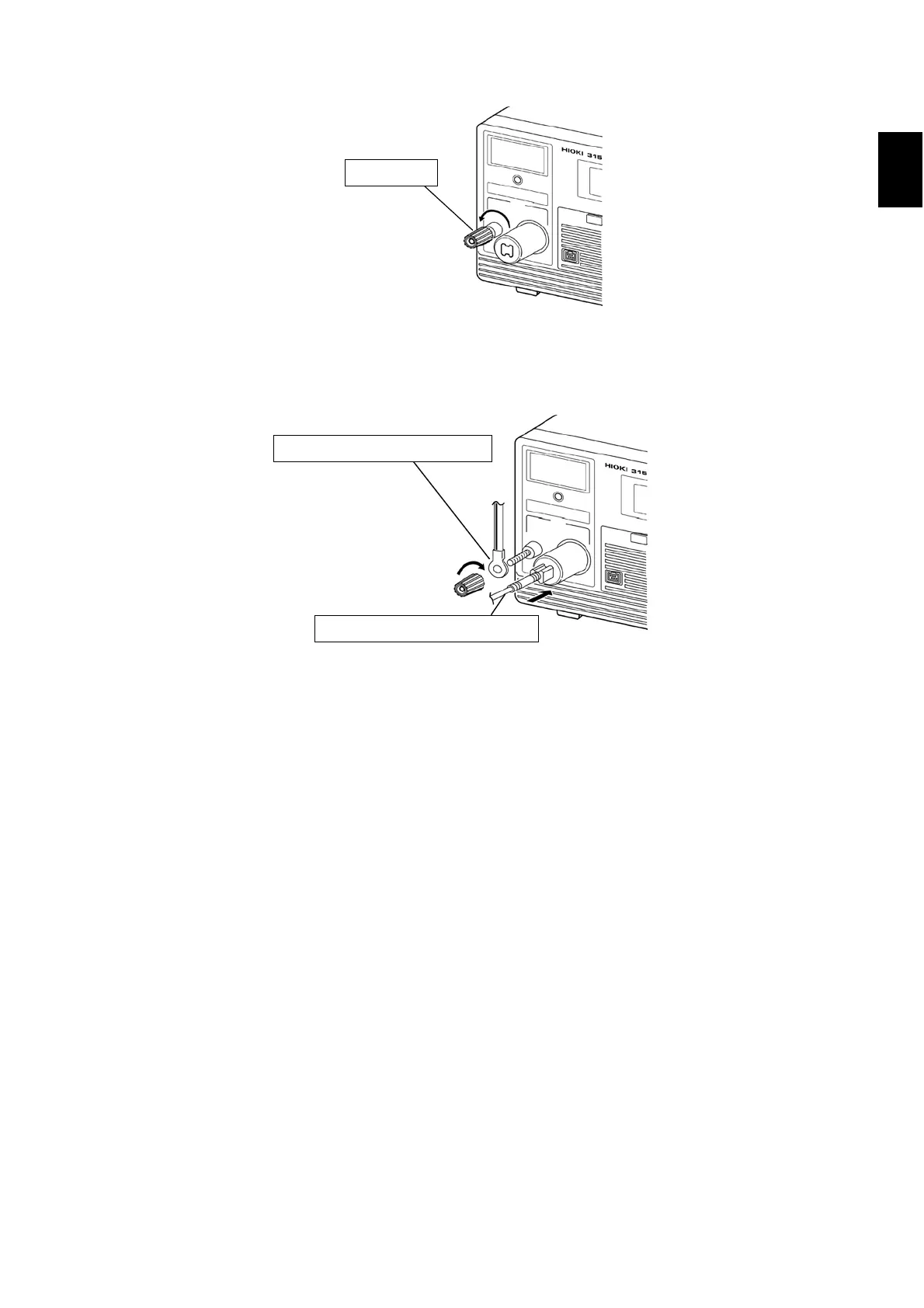

2.6 Connecting the 9615 H.V. TEST LEAD
────────────────────────────────────────────────────
2
4
5
6
7
8
9
10
11
12
13
14
A
Low terminal
Plug on the low-voltage test lead
Plug on the high-voltage test lead
(1) Remove the LOW terminal by turning it counterclockwise.
(2) As shown in the figure, insert the plug on the low-voltage test lead.
(3) Secure the LOW terminal by turning it clockwise.
(4) Connect the plug on the high-voltage test lead to the HIGH terminal.
