Hioki 3158 - Examples of Settings

29
────────────────────────────────────────────────────
3.3 Setting the "SETTING" State
────────────────────────────────────────────────────
3.3.4 Examples of Settings
NOTE
Values currently set


Values to be set
Comparative voltage
value
OFF Comparative voltage
value
2.00 kV
Upper level value 120 mA Upper level value 20 mA
Lower level value 40 mA Lower level value OFF
Test time 120 s Test time 60.0 s
The settings immediately prior to power shutdown are saved. The unit restarts with
these settings, even following a power interruption. When settings are modified,
however they are only saved after running a test.

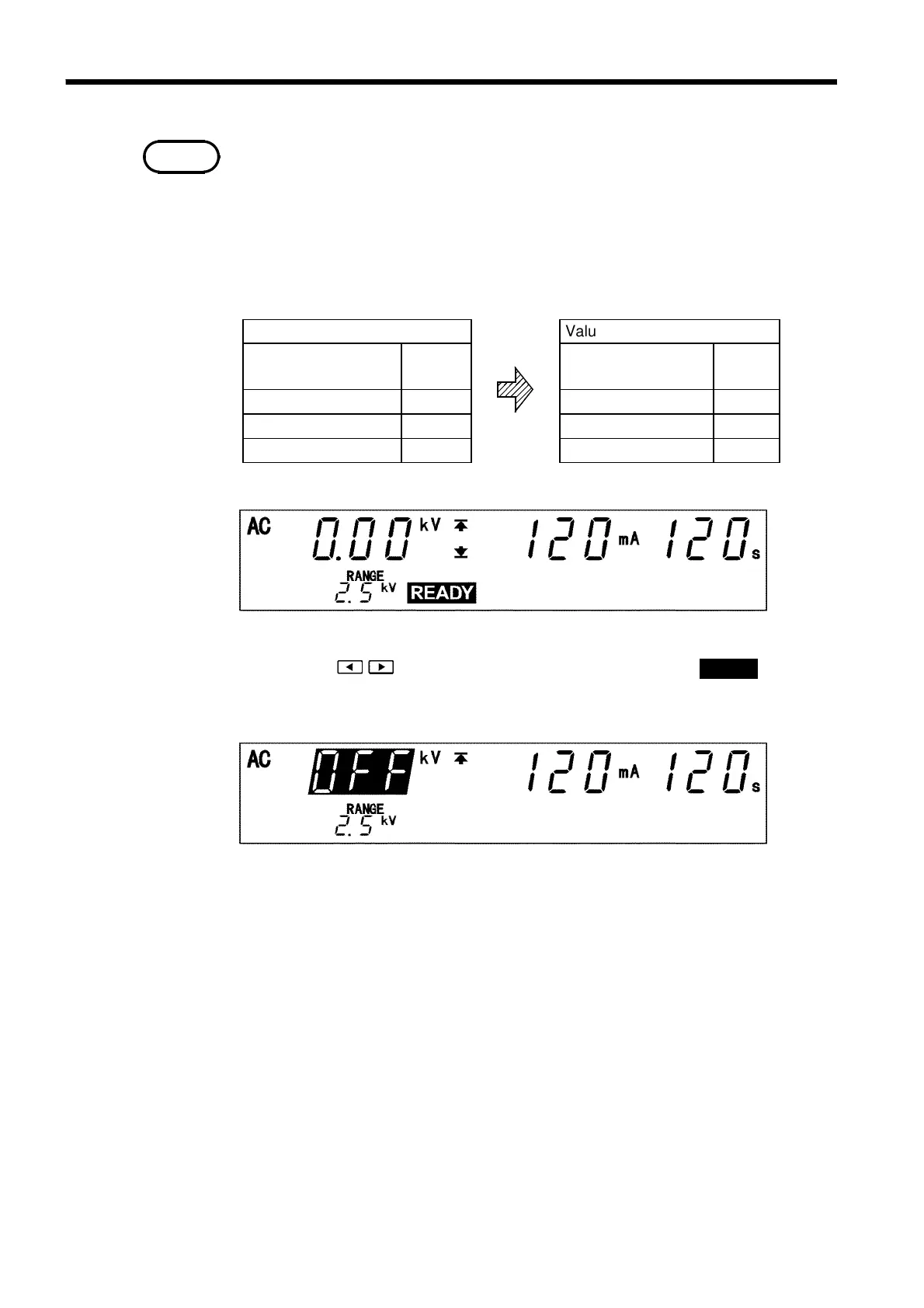

The following shows an example of a test at a comparative-voltage value of 2.00 kV
and an upper-level value of 20 mA, with the lower-level value set to OFF, at a test
time of 60.0 s. The 3158 is in the READY state.
(1) Changing to the SETTING state
Press the / keys to switch to the SETTING state. The READY light will
go out, and the flashing cursor will be displayed at the position where the
comparative-voltage value is indicated.
In the READY state, a measured-voltage value is displayed. In the SETTING
state, the display changes to the comparative-voltage value (in this example,
OFF).
