6.1 External I/O Terminal
────────────────────────────────────────────────────
6.1.1 Signal Line
18
･･･
･･･
1
36
･･･
･･･
19
Pin
number
I/O Signal line name
Pin
number
I/O Signal line name
1 OUT READY
_______
19 OUT NC
2 OUT L-FAIL
______
20 OUT NC
3 OUT U-FAIL
______
21 OUT NC
4 OUT PASS
______
22 OUT NC
5 OUT TEST
_____
23 OUT NC
6 OUT H.V.ON
_______
24 OUT NC
7 IN EXT-E
______
25 OUT NC
8 IN START
_______
26 OUT NC
9 IN STOP
______
27 OUT NC
10 IN INT.LOCK
__________
28 OUT NC
11 OUT NC 29 OUT NC
12 OUT NC 30 OUT NC
13 OUT NC 31 OUT NC
14 OUT NC 32 OUT NC
15 IN ISO.COM 33 OUT ISO.DCV
16 IN ISO.COM 34 OUT ISO.DCV
17 IN ISO.COM 35 OUT ISO.DCV
18 IN ISO.COM 36 OUT ISO.DCV
Use the following external I/O connectors or their equivalents:
Connector of the 3158 main unit: 57GE-40360-751-FA(DDK Ltd.)
Compatible connector : 57-30360 (DDK Ltd.)
57E-30360 (DDK Ltd.)
57F-30360 (DDK Ltd.)
57FE-30360 (DDK Ltd.)

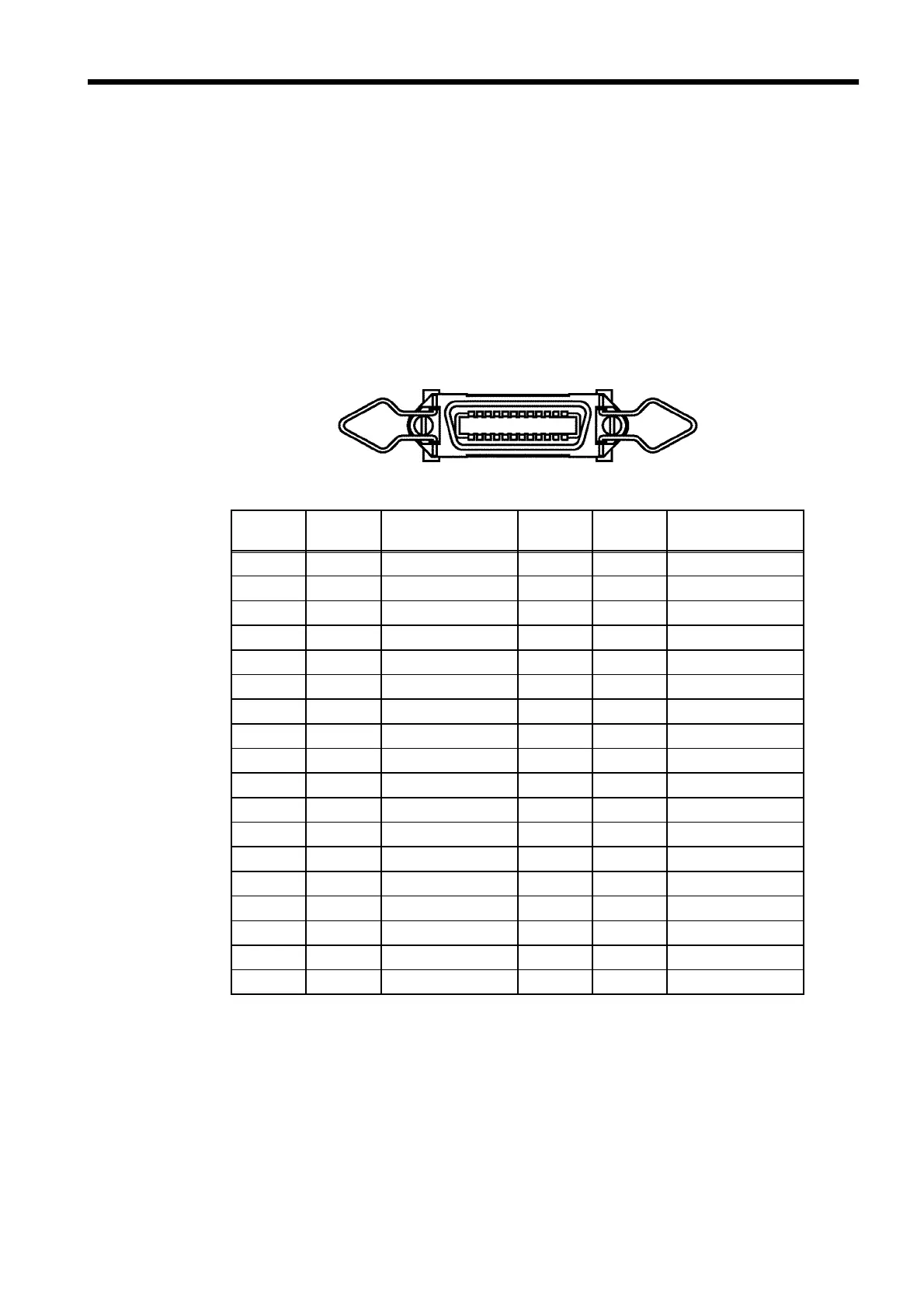

External I/O connector pin numbering
