75
────────────────────────────────────────────────────
6.1 External I/O Terminal
────────────────────────────────────────────────────
1
2
3
4
6
8
9
10
11
12
13
14
A
Photocou
p
ler
ISO.DCV
2.2 kΩ
ISO.COM
External I/O Terminal
I

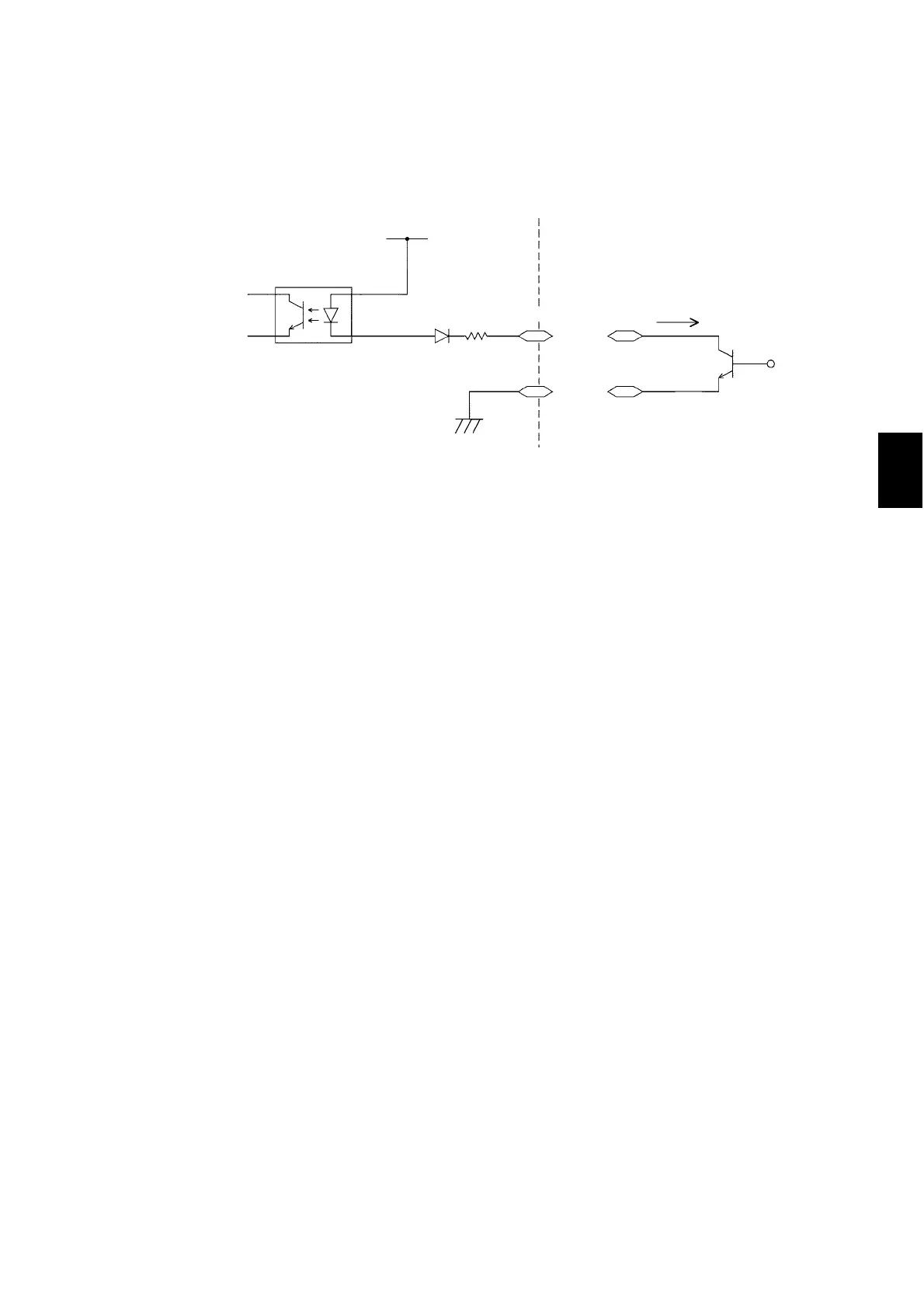

(2) Control using the transistor (example)
For control using a transistor or FET, make connections as shown below.
Design the signals so that 6 mA is absorbed into each of the signals. (Connect
the EXT-E signal (Pin 7) and ISO.COM (Pins 15 to 18) to enable external I/O
signals.)
