6.1 External I/O Terminal
────────────────────────────────────────────────────
1
2
3
4
6
8
9
10
11
12
13
14
A
Photocou
p
ler
ISO.DCV
ISO.COM
External I/O Terminal
ISO.DCV
NOTE

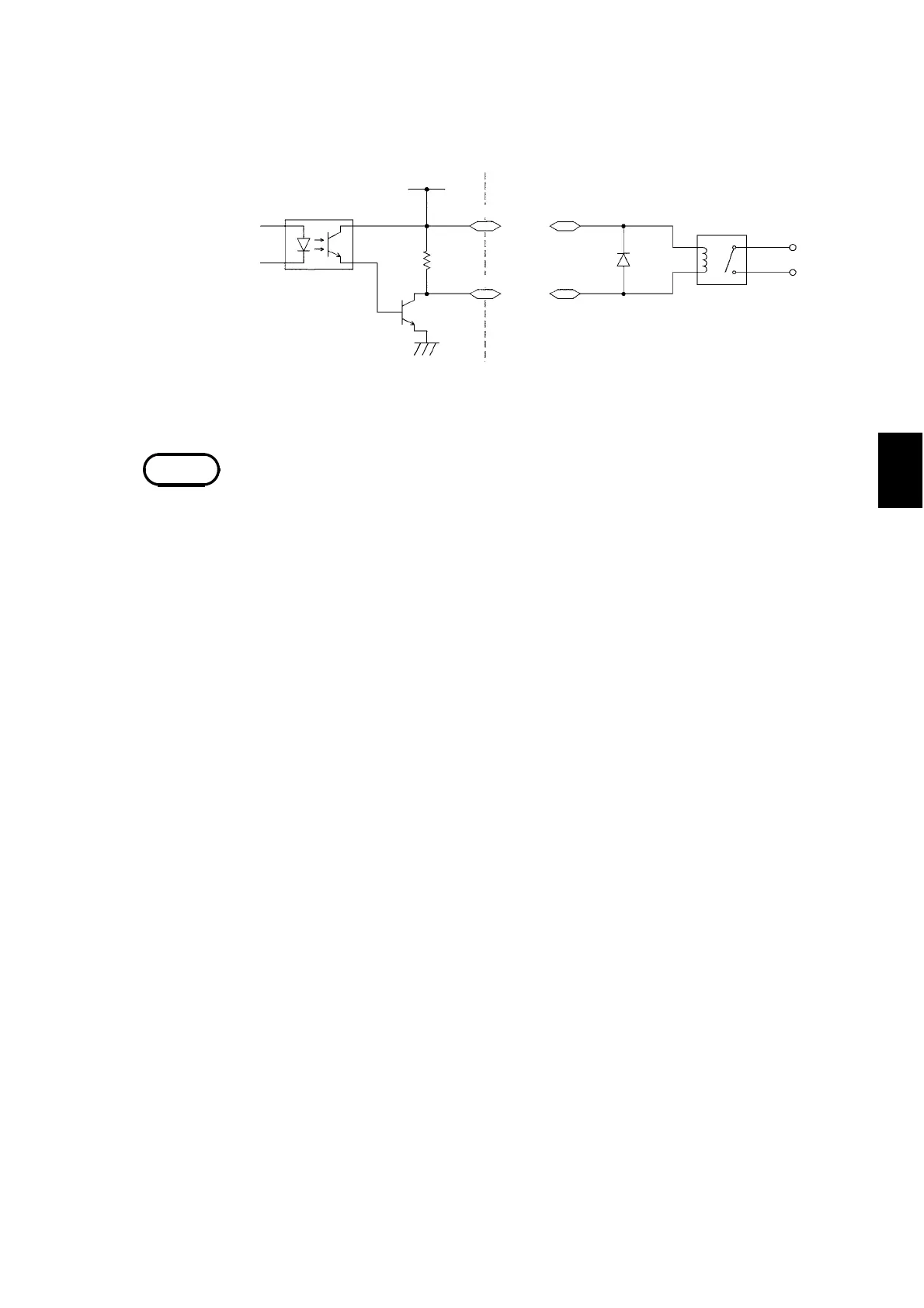

(2) Obtaining a signal level (example)
To obtain a signal level, make connections as shown below. In addition, check
the output current.
The output signal status upon power-on may be undetermined. Care should be taken
in the operation of equipment connected to the external I/O.
