225
Servicing
TURN OFF all the power switches.
(11) Remove four (4) nuts xing the compressor and remove the compressor.
NOTE:
1. When removing the compressor, take special care not to contact with the surrounding pipes. If contacted, the pipes may
be deformed.
2. Take special care not to be injured with the sheet metal edges while working.
3. When removing the compressor xed with the oil discharge pipe, seal the pipe end with tapes so that the refrigerant oil
remaining inside the compressor will not spill out from the oil discharge pipe.
4. To prevent water and foreign particles from entering the refrigerant cycle, mount the new compressor immediately after
removing the old one.
5. When removing the compressor, remove the electrical box located above the compressor to make the work easier.
25/65in. (10mm) box wrench is required to remove the nuts xing the compressor .
Tool
Adjustable Wrench, Box Wrench,
Phillips Screwdriver, Spanner

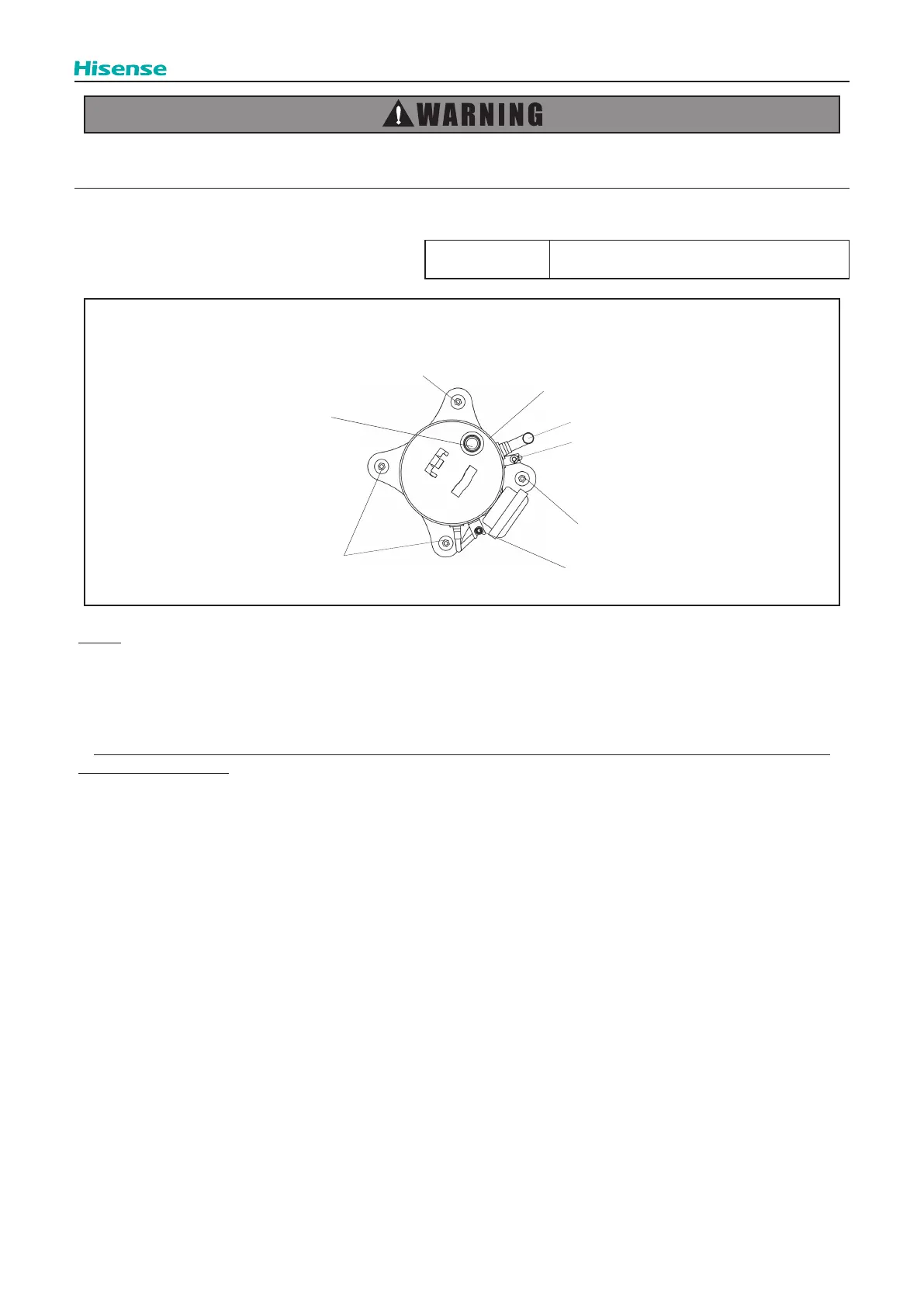

View from Top of Compressor
Front Side
Nut Fixing Position
Suction Pipe
Compressor
Nut Fixing Position
Nut Fixing Position
Injection Pipe
Discharge Pipe
Oil Discharge Pipe
To Next Page
