Servicing
TURN OFF all the power switches.

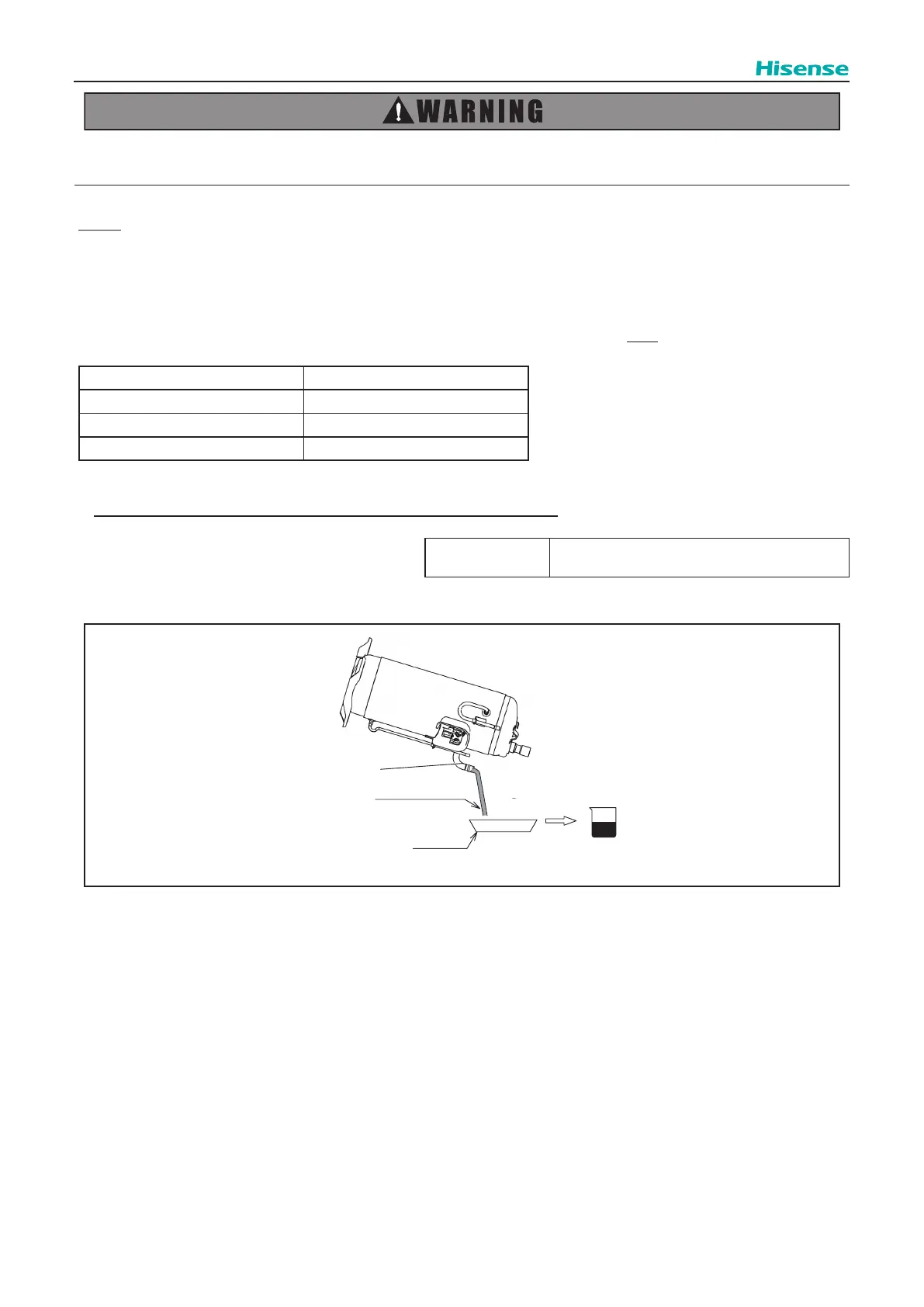

(12) Withdraw the remaining refrigerant oil in the compressor from the discharge pipe,and measure the oil quantity.
NOTE:
1. Additional refrigerant oil charge is required if:
remaining refrigerant oil quantity in the old compressor > pre-charged refrigerant oil in the new compressor
2. No additional refrigerant oil charge is required if:
remaining refrigerant oil quantity in the old compressor < pre-charged refrigerant oil in the new compressor
3. The recharged quantity of the refrigerant oil to the cycle is calculated as follows:
(Remaining quantity in the old compressor + Collected quantity in the item 2.10 (10) + 0.53 gal*) -
(Initial charged quantity in the compressor for each model)
Compressor Initial Charged Refrigerant Oil
For Inverter (ANB52FZNMT) 0.61 gal
For Inverter (ANB66FZNMT) 0.61 gal
For Inverter (ANB78FZNMT) 0.61 gal
* 0.53 gal : This value is not considered to be removed from the chamber.
4. If the refrigerant oil is contaminated, replace all of it with new refrigerant oil.
Tool Oil Pan, Measure Cup
Refrigerant Oil
Discharge Piping
Oil Pan
Measure Cup
To Next Page
