290
Optional Function

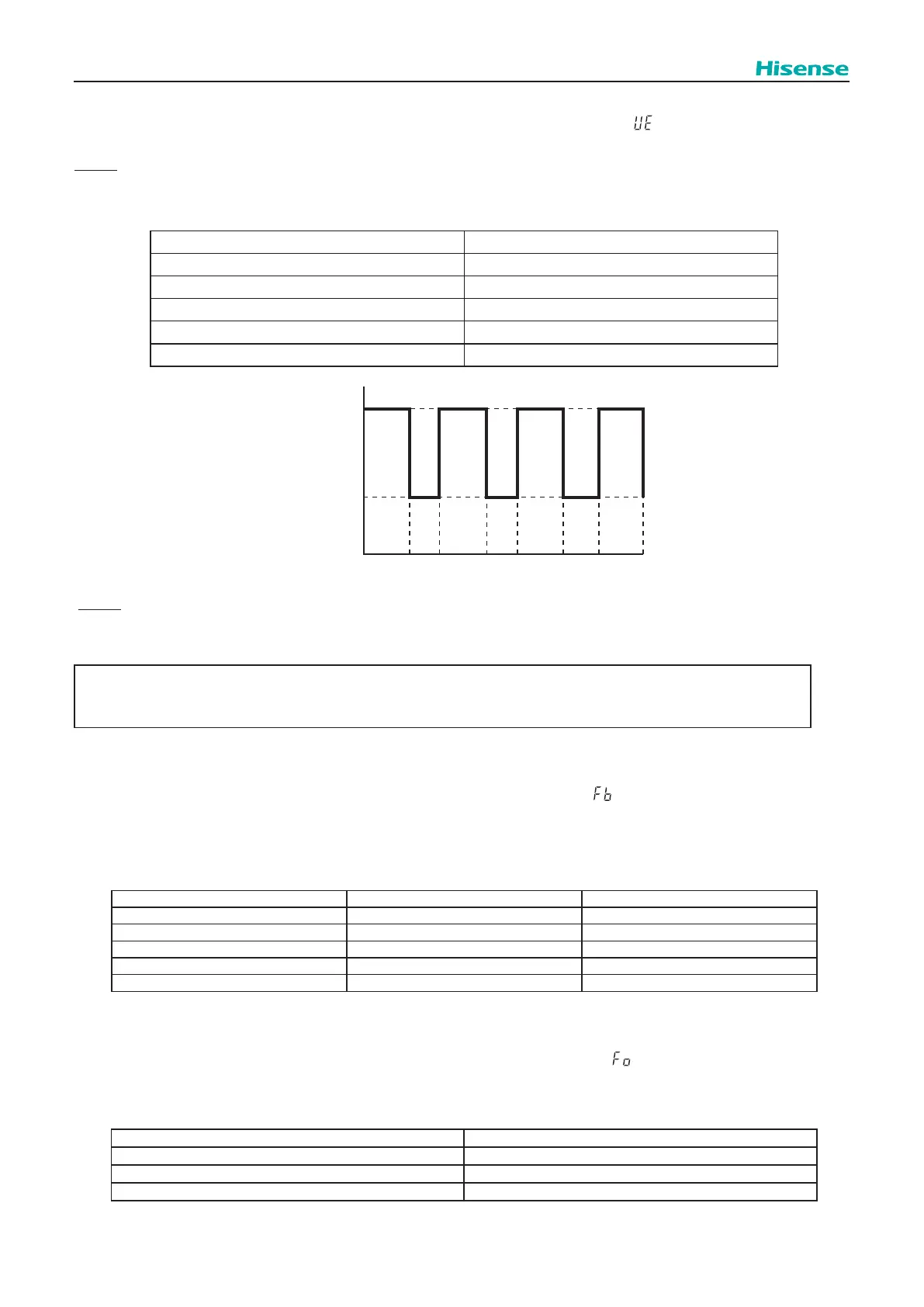

4.3.9 Wave Function Setting
Press “PSW3” and select the setting condition “0” to “4”, so that the wave function setting “ ” can be set. While this function
is activated, the maximum limit of running current is changed from 40% to 80% as shown in the gure
NOTE:
In the case that the demand current control by external input is set and the external input signal is available, this function is
not available even when the demand current control by external input signal is performed.
Setting Condition Running Current Lower Limit Setting
0 Not Available (Default Setting)
1 40%
2 60%
3 70%
4 80%
20min. 10min. 20min. 10min. 20min.10min. 20min.
Electricity
Consumption
(100%)
Electricity
Consumption
(40 to 80%)
NOTE:
The current limit value is targeted value. The actual current value may temporarily be higher than the value shown in the
table above depending on the operating control condition.
When the scheduled operation of “Demand Function Setting” is set from the centralized controller, refer to “Technical
Catalog” and “Installation & Maintenance Manual” of the centralized controller. For this function, the central station is
applicable.
4.3.10 Cold Draft Protection
Press “PSW3” and select the setting condition “0” to “3” at the cold draft protection “ ”, so the cold draft protection can
be set. When the indoor unit discharge air temperature falls down at cooling operation, outdoor fan stops and compressor
frequency forcibly decreases to prevent a drop in discharge air temperature. If the outlet temperature decreases and the
temperature is less than Thermo-OFF condition even after the compressor frequency decreases, the indoor unit becomes
Thermo-OFF condition. (When Thermo-OFF is activated under this condition, the operation will be restarted after 3 minutes.)
Setting Condition Outlet Temperature
Target Value at Thermo-OFF
0 - -
1 50°F(10
℃
) 44°F(7
℃
)
2 54°F(12
℃
) 48°F(9
℃
)
3 58°F(14
℃
) 52°F(11
℃
)
4.3.11 Adjustment of Fan Rotation
Press “PSW3” and select the setting condition “0” to “2” at the fan rotation adjustment “ ”, so the fan rotation adjustment
can be set. If the outdoor unit fans make a whining sound in the case of the multiple installation, set this function to the
relevant outdoor units.
Setting Condition Adjustment of Fan Rotation
0 Not Available (Default Setting)
1 -15 rpm
2 -30 rpm
To Next Page
